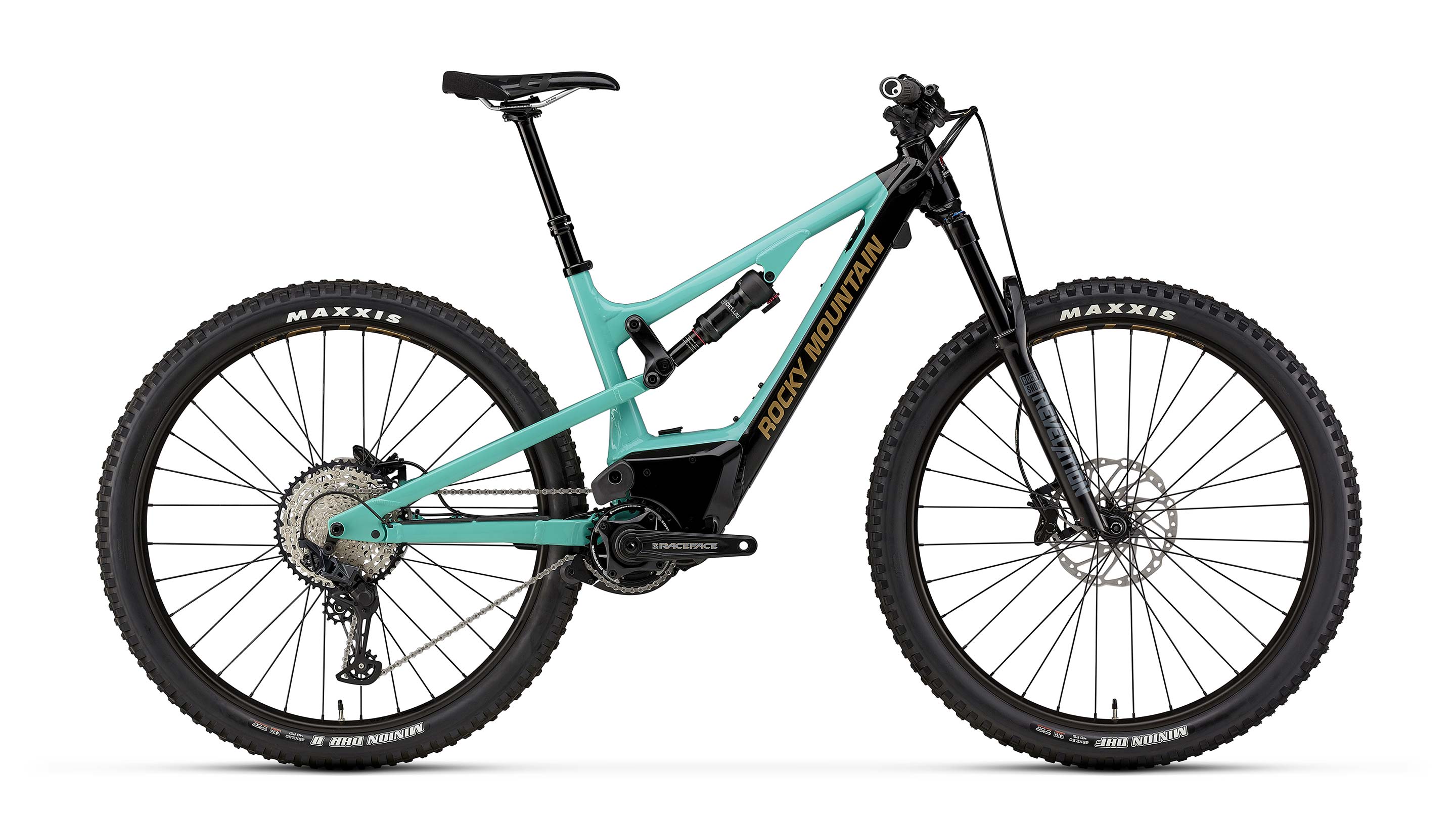

Instinct Powerplay Alloy 50
Overview
Intended use: Trail
Rear travel: 140
Description
The Instinct Powerplay is built for exploration. Versatile geometry, dialed kinematics, you’ll be riding bigger days than ever before.
Instinct Powerplay Alloy 50
Sale price$5,849.00
Regular price (/)
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 595.6 | 619.03 | 647.78 |
| Head Tube Angle (deg) | 65 | 65 | 65 | 65 |
| Head Tube Length (mm) | 100 | 100 | 110 | 120 |
| Seat Tube Angle (deg) | 74 | 74 | 74 | 74 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 32 | 31.62 | 31.82 | 32.04 |
| Reach (mm) | 399 | 425 | 447 | 475 |
| Stack (mm) | 616 | 616 | 626 | 635 |
| Standover Height (mm) | 820 | 820 | 820 | 820 |
| Wheelbase (mm) | 1160 | 1185 | 1212 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 574 | 595 | 619 | 647 |
| Head Tube Angle (deg) | 65.4 | 65.4 | 65.4 | 65.4 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.1 | 74.1 | 74.1 | 74.1 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 442.99 | 442.98 | 442.96 |
| Bottom Bracket Drop (mm) | 30 | 30.07 | 30.25 | 30.45 |
| Reach (mm) | 401 | 426 | 448 | 476 |
| Stack (mm) | 615 | 616 | 625 | 634 |
| Standover Height (mm) | 821 | 821 | 821 | 821 |
| Wheelbase (mm) | 1160 | 1185 | 1211 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 574 | 595 | 618 | 647 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 29 | 28.55 | 28.75 | 28.9 |
| Reach (mm) | 402 | 427 | 450 | 477 |
| Stack (mm) | 614 | 615 | 624 | 634 |
| Standover Height (mm) | 822 | 822 | 822 | 822 |
| Wheelbase (mm) | 1160 | 1185 | 1211 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 573 | 594 | 618 | 646 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.3 | 74.3 | 74.3 | 74.3 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 27 | 26.56 | 26.71 | 26.86 |
| Reach (mm) | 404 | 429 | 451 | 479 |
| Stack (mm) | 613 | 614 | 623 | 632 |
| Standover Height (mm) | 823 | 823 | 823 | 823 |
| Wheelbase (mm) | 1160 | 1185 | 1211 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 573 | 594 | 617 | 646 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.4 | 74.4 | 74.4 | 74.4 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 | 25 |
| Reach (mm) | 405 | 430 | 453 | 480 |
| Stack (mm) | 612 | 613 | 622 | 631 |
| Standover Height (mm) | 825 | 825 | 825 | 825 |
| Wheelbase (mm) | 1159 | 1184 | 1211 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 593 | 616 | 645 |
| Head Tube Angle (deg) | 66 | 66 | 66 | 66 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.6 | 74.6 | 74.6 | 74.6 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 23 | 23.09 | 23.18 | 23.28 |
| Reach (mm) | 406 | 432 | 454 | 482 |
| Stack (mm) | 611 | 612 | 621 | 630 |
| Standover Height (mm) | 826 | 826 | 826 | 826 |
| Wheelbase (mm) | 1159 | 1184 | 1211 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 593 | 616 | 645 |
| Head Tube Angle (deg) | 66.1 | 66.1 | 66.1 | 66.1 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.7 | 74.7 | 74.7 | 74.7 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 22 | 22 | 22 | 22 |
| Reach (mm) | 408 | 433 | 455 | 483 |
| Stack (mm) | 611 | 611 | 620 | 629 |
| Standover Height (mm) | 827 | 827 | 827 | 827 |
| Wheelbase (mm) | 1159 | 1184 | 1211 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 571 | 592 | 615 | 644 |
| Head Tube Angle (deg) | 66.2 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.9 | 74.9 | 74.9 | 74.9 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 20 | 20 | 20 | 20 |
| Reach (mm) | 409 | 434 | 457 | 485 |
| Stack (mm) | 609 | 610 | 619 | 628 |
| Standover Height (mm) | 829 | 829 | 829 | 829 |
| Wheelbase (mm) | 1159 | 1184 | 1210 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 571 | 591 | 615 | 644 |
| Head Tube Angle (deg) | 66.4 | 66.4 | 66.4 | 66.4 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 75 | 75 | 75 | 75 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 441 | 441 | 441 | 441 |
| Bottom Bracket Drop (mm) | 18 | 18 | 18 | 18 |
| Reach (mm) | 411 | 436 | 458 | 486 |
| Stack (mm) | 608 | 608 | 618 | 627 |
| Standover Height (mm) | 830 | 830 | 830 | 830 |
| Wheelbase (mm) | 1159 | 1184 | 1210 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 572 | 595.6 | 619.03 | 647.78 |
| Head Tube Angle (deg) | 65 | 65 | 65 | 65 |
| Head Tube Length (mm) | 100 | 100 | 110 | 120 |
| Seat Tube Angle (deg) | 74 | 74 | 74 | 74 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 32 | 31.62 | 31.82 | 32.04 |
| Reach (mm) | 399 | 425 | 447 | 475 |
| Stack (mm) | 616 | 616 | 626 | 635 |
| Standover Height (mm) | 820 | 820 | 820 | 820 |
| Wheelbase (mm) | 1160 | 1185 | 1212 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 574 | 595 | 619 | 647 |
| Head Tube Angle (deg) | 65.4 | 65.4 | 65.4 | 65.4 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.1 | 74.1 | 74.1 | 74.1 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 442.99 | 442.98 | 442.96 |
| Bottom Bracket Drop (mm) | 30 | 30.07 | 30.25 | 30.45 |
| Reach (mm) | 401 | 426 | 448 | 476 |
| Stack (mm) | 615 | 616 | 625 | 634 |
| Standover Height (mm) | 821 | 821 | 821 | 821 |
| Wheelbase (mm) | 1160 | 1185 | 1211 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 574 | 595 | 618 | 647 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 29 | 28.55 | 28.75 | 28.9 |
| Reach (mm) | 402 | 427 | 450 | 477 |
| Stack (mm) | 614 | 615 | 624 | 634 |
| Standover Height (mm) | 822 | 822 | 822 | 822 |
| Wheelbase (mm) | 1160 | 1185 | 1211 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 573 | 594 | 618 | 646 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.3 | 74.3 | 74.3 | 74.3 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 27 | 26.56 | 26.71 | 26.86 |
| Reach (mm) | 404 | 429 | 451 | 479 |
| Stack (mm) | 613 | 614 | 623 | 632 |
| Standover Height (mm) | 823 | 823 | 823 | 823 |
| Wheelbase (mm) | 1160 | 1185 | 1211 | 1243 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 573 | 594 | 617 | 646 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.4 | 74.4 | 74.4 | 74.4 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 | 25 |
| Reach (mm) | 405 | 430 | 453 | 480 |
| Stack (mm) | 612 | 613 | 622 | 631 |
| Standover Height (mm) | 825 | 825 | 825 | 825 |
| Wheelbase (mm) | 1159 | 1184 | 1211 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 572 | 593 | 616 | 645 |
| Head Tube Angle (deg) | 66 | 66 | 66 | 66 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.6 | 74.6 | 74.6 | 74.6 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 23 | 23.09 | 23.18 | 23.28 |
| Reach (mm) | 406 | 432 | 454 | 482 |
| Stack (mm) | 611 | 612 | 621 | 630 |
| Standover Height (mm) | 826 | 826 | 826 | 826 |
| Wheelbase (mm) | 1159 | 1184 | 1211 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 572 | 593 | 616 | 645 |
| Head Tube Angle (deg) | 66.1 | 66.1 | 66.1 | 66.1 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.7 | 74.7 | 74.7 | 74.7 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 22 | 22 | 22 | 22 |
| Reach (mm) | 408 | 433 | 455 | 483 |
| Stack (mm) | 611 | 611 | 620 | 629 |
| Standover Height (mm) | 827 | 827 | 827 | 827 |
| Wheelbase (mm) | 1159 | 1184 | 1211 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 571 | 592 | 615 | 644 |
| Head Tube Angle (deg) | 66.2 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 74.9 | 74.9 | 74.9 | 74.9 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 442 | 442 | 442 | 442 |
| Bottom Bracket Drop (mm) | 20 | 20 | 20 | 20 |
| Reach (mm) | 409 | 434 | 457 | 485 |
| Stack (mm) | 609 | 610 | 619 | 628 |
| Standover Height (mm) | 829 | 829 | 829 | 829 |
| Wheelbase (mm) | 1159 | 1184 | 1210 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 571 | 591 | 615 | 644 |
| Head Tube Angle (deg) | 66.4 | 66.4 | 66.4 | 66.4 |
| Head Tube Length (mm) | 100 | 100 | 100 | 120 |
| Seat Tube Angle (deg) | 75 | 75 | 75 | 75 |
| Seat Tube Length (mm) | 394 | 432 | 470 | 508 |
| Rear Centre (mm) | 441 | 441 | 441 | 441 |
| Bottom Bracket Drop (mm) | 18 | 18 | 18 | 18 |
| Reach (mm) | 411 | 436 | 458 | 486 |
| Stack (mm) | 608 | 608 | 618 | 627 |
| Standover Height (mm) | 830 | 830 | 830 | 830 |
| Wheelbase (mm) | 1159 | 1184 | 1210 | 1242 |
Standover height is measured 200 mm in front of the bottom bracket.
Sizing chart
These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.
Frame Size
165 - 172.5 cm / 5’5” - 5’8”
170 - 177.5 cm / 5’7” - 5’10”
177.5 - 185.5 cm / 5’10” - 6’1”
200 - 193 cm / 6’0” - 6’4”
Features and technologies
RIDE-9™ adjustment system
The RIDE-9 adjustment system allows riders to quickly fine-tune their geometry and suspension with a pair of Allen keys. Nine configurations are possible thanks to two interlocking chips.
FORM™ Alloy
FORM™ tubesets utilize premium materials to meet our strict requirements. Each FORM™ tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.
Browse the lineup
Instinct Powerplay Alloy 50RockShox Revelation Select RC, RockShox Deluxe Select+, Shimano SLX
Sale price$4,549.00
Regular price$6,999.00
Instinct Powerplay Alloy 50RockShox Revelation Select RC, RockShox Deluxe Select+, Shimano SLX
Sale price$4,549.00
Regular price$6,999.00
Instinct Powerplay Alloy 70RockShox Lyrik Select RC, RockShox Deluxe Select+, Shimano XT
Sale price$5,199.00
Regular price$7,999.00
Instinct Powerplay Alloy 70RockShox Lyrik Select, RockShox Super Deluxe Select+, Shimano XT
Sale price$5,199.00
Regular price$7,999.00
Instinct Powerplay Carbon 50RockShox Lyrik Select, RockShox Deluxe Select+, Shimano SLX
Sale price$5,524.00
Regular price$8,499.00
Instinct Powerplay Carbon 70Fox 36 E-MTB Float EVOL GRIP Performance, Fox Float X Performance, Shimano XT
Sale price$6,174.00
Regular price$9,499.00
Instinct Powerplay Carbon 70Fox 36 E-MTB Float EVOL GRIP Performance, Fox Float X Performance, Shimano XT
Sale price$6,174.00
Regular price$9,499.00
Compatible parts
Bearing Kit 18
Sale price$35.90
Shock Bearing Eyelet Kit
Sale price$37.90
Kit Standard Hanger
Sale price$39.90
Rear Axle 5
Sale price$23.90
Pivot Bolt Kit 1
Sale price$99.90
Motor Side Cover Kit Right
Sale price$34.90
Iwoc Trio Cover Black
Sale price$20.00
Slider Kit
Sale price$25.00
Lower Chain Guide 34T
Sale price$34.90
Hanger 4
Sale price$35.90
