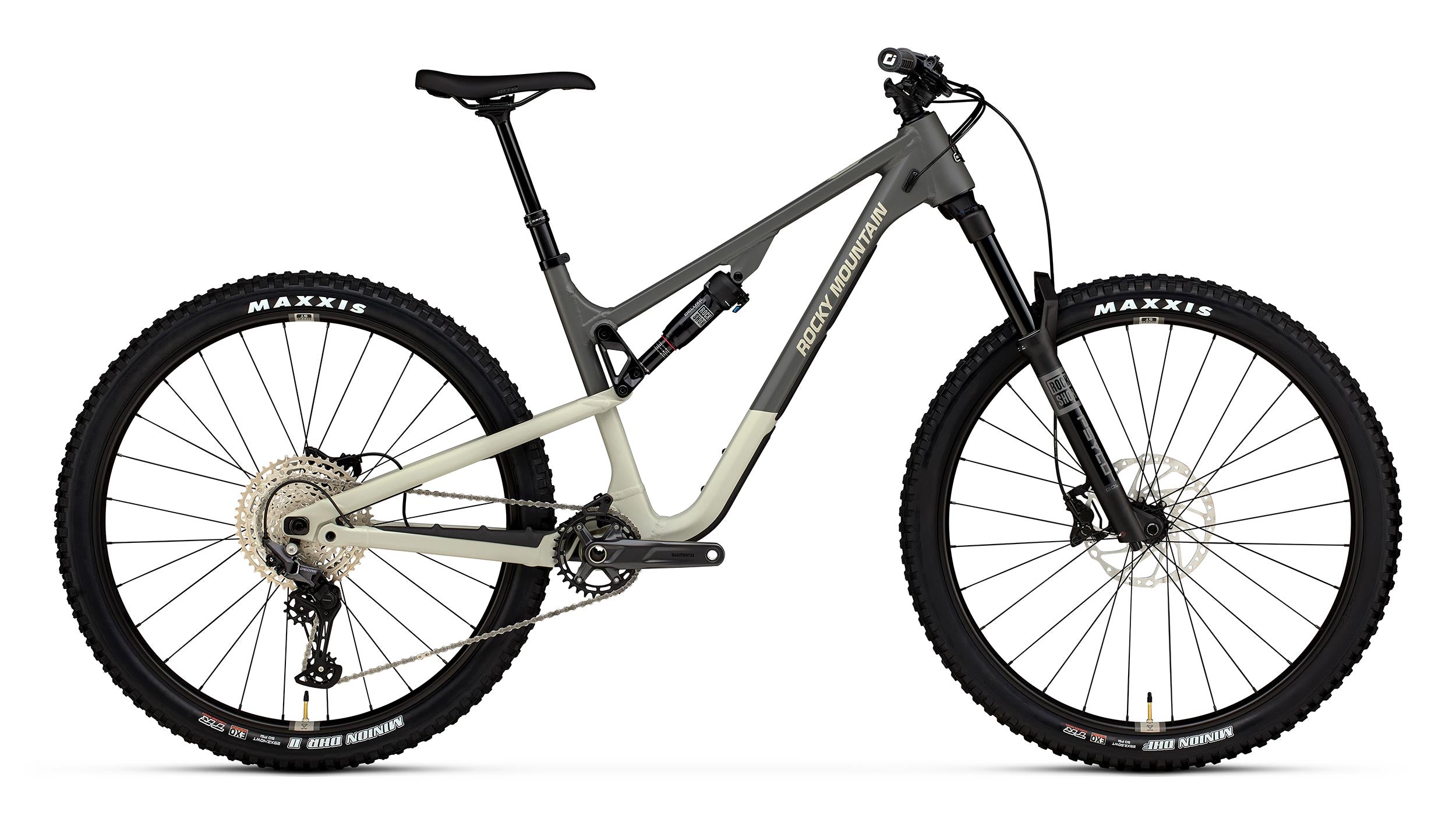

Instinct Alloy 30
Overview
Intended use: Trail
Rear travel: 140
Rider support

5 years warranty, transferable to second owners
We believe in our products, that's why we offer 5-year warranty on our frames, extended to second owners. Learn more
Buy online pick-up in store
It’s now possible for riders to purchase a bike directly through Bikes.com and collect it at an authorized Rocky Mountain dealer.
We're here for you
Got questions about our bikes? Our support team and dealers network are here for you.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
RIDE-9/4 POSITION
View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 621 | 640 | 649 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 44 | 44 | 44 | 44 |
| Reach (mm) | 423 | 449 | 474 | 504 |
| Stack (mm) | 572 | 599 | 628 | 659 |
| Standover Height (mm) | 760 | 798 | 796 | 792 |
| Wheelbase (mm) | 1198 | 1227 | 1259 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 622 | 638 | 644 |
| Head Tube Angle (deg) | 63.7 | 63.7 | 63.7 | 63.7 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 40 | 40 | 40 | 40 |
| Reach (mm) | 427 | 452 | 477 | 507 |
| Stack (mm) | 572 | 599 | 628 | 659 |
| Standover Height (mm) | 762 | 799 | 798 | 794 |
| Wheelbase (mm) | 1198 | 1227 | 1259 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 622 | 636 | 645 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 572 | 599 | 627 | 659 |
| Standover Height (mm) | 763 | 794 | 799 | 796 |
| Wheelbase (mm) | 1198 | 1227 | 1258 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 571 | 623 | 634 | 645 |
| Head Tube Angle (deg) | 64.3 | 64.3 | 64.3 | 64.3 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77.3 | 77.3 | 77.3 | 77.3 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 437 | 458 | 483 | 513 |
| Stack (mm) | 571 | 599 | 626 | 659 |
| Standover Height (mm) | 765 | 801 | 800 | 798 |
| Wheelbase (mm) | 1197 | 1227 | 1258 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 572 | 621 | 640 | 649 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 44 | 44 | 44 | 44 |
| Reach (mm) | 423 | 449 | 474 | 504 |
| Stack (mm) | 572 | 599 | 628 | 659 |
| Standover Height (mm) | 760 | 798 | 796 | 792 |
| Wheelbase (mm) | 1198 | 1227 | 1259 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 572 | 622 | 638 | 644 |
| Head Tube Angle (deg) | 63.7 | 63.7 | 63.7 | 63.7 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 40 | 40 | 40 | 40 |
| Reach (mm) | 427 | 452 | 477 | 507 |
| Stack (mm) | 572 | 599 | 628 | 659 |
| Standover Height (mm) | 762 | 799 | 798 | 794 |
| Wheelbase (mm) | 1198 | 1227 | 1259 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 572 | 622 | 636 | 645 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 572 | 599 | 627 | 659 |
| Standover Height (mm) | 763 | 794 | 799 | 796 |
| Wheelbase (mm) | 1198 | 1227 | 1258 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 571 | 623 | 634 | 645 |
| Head Tube Angle (deg) | 64.3 | 64.3 | 64.3 | 64.3 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77.3 | 77.3 | 77.3 | 77.3 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 437 | 458 | 483 | 513 |
| Stack (mm) | 571 | 599 | 626 | 659 |
| Standover Height (mm) | 765 | 801 | 800 | 798 |
| Wheelbase (mm) | 1197 | 1227 | 1258 | 1293 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 540 | 567 |
| Head Tube Angle (deg) | 63.5 | 63.5 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 27 | 27 |
| Reach (mm) | 398 | 423 |
| Stack (mm) | 585 | 594 |
| Standover Height (mm) | 757 | 753 |
| Wheelbase (mm) | 1150 | 1179 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 540 | 567 |
| Head Tube Angle (deg) | 63.7 | 63.7 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 26 | 26 |
| Reach (mm) | 399 | 424 |
| Stack (mm) | 584 | 593 |
| Standover Height (mm) | 757 | 753 |
| Wheelbase (mm) | 1150 | 1179 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 540 | 567 |
| Head Tube Angle (deg) | 64 | 64 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 77 | 77 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 19 | 19 |
| Reach (mm) | 405 | 430 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 759 | 756 |
| Wheelbase (mm) | 1149 | 1178 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 539 | 567 |
| Head Tube Angle (deg) | 64.3 | 64.3 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 77.3 | 77.3 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 15 | 15 |
| Reach (mm) | 408 | 433 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 760 | 757 |
| Wheelbase (mm) | 1148 | 1177 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 540 | 567 |
| Head Tube Angle (deg) | 63.5 | 63.5 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 27 | 27 |
| Reach (mm) | 398 | 423 |
| Stack (mm) | 585 | 594 |
| Standover Height (mm) | 757 | 753 |
| Wheelbase (mm) | 1150 | 1179 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 540 | 567 |
| Head Tube Angle (deg) | 63.7 | 63.7 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 26 | 26 |
| Reach (mm) | 399 | 424 |
| Stack (mm) | 584 | 593 |
| Standover Height (mm) | 757 | 753 |
| Wheelbase (mm) | 1150 | 1179 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 540 | 567 |
| Head Tube Angle (deg) | 64 | 64 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 77 | 77 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 19 | 19 |
| Reach (mm) | 405 | 430 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 759 | 756 |
| Wheelbase (mm) | 1149 | 1178 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 539 | 567 |
| Head Tube Angle (deg) | 64.3 | 64.3 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 77.3 | 77.3 |
| Seat Tube Length (mm) | 355 | 365 |
| Rear Centre (mm) | 430 - 440 | 430 - 440 |
| Bottom Bracket Drop (mm) | 15 | 15 |
| Reach (mm) | 408 | 433 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 760 | 757 |
| Wheelbase (mm) | 1148 | 1177 |
Standover height is measured 200 mm in front of the bottom bracket.
Features and technologies

Size Specific Tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real-world field testing and adjusts each tune for specific frame sizes. The new Altitude also has size-specific chainstay lengths to offer a balanced ride across all frame sizes.

Smoothlink™ suspension
Smoothlink suspension is efficient yet supple when you’re on the pedals and across a wide range of gears. It features a controlled end-stroke and a rate-curve that feels more capable than the travel would suggest.

FORM™ Alloy
FORM™ tubesets utilize premium materials to meet our strict requirements. Each FORM™ tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.

Two-position axle
The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.

RIDE-4™ adjustment system
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
