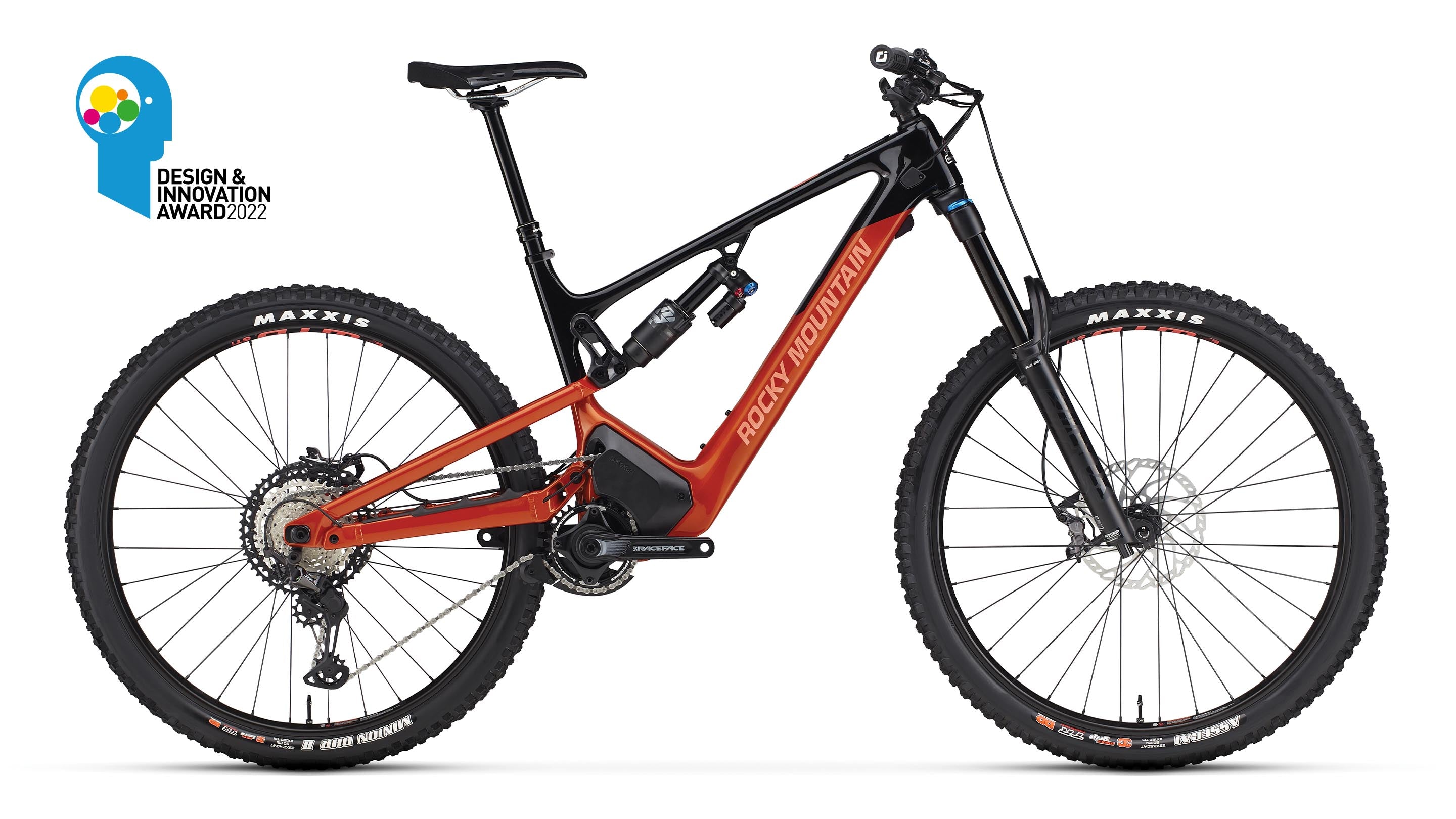

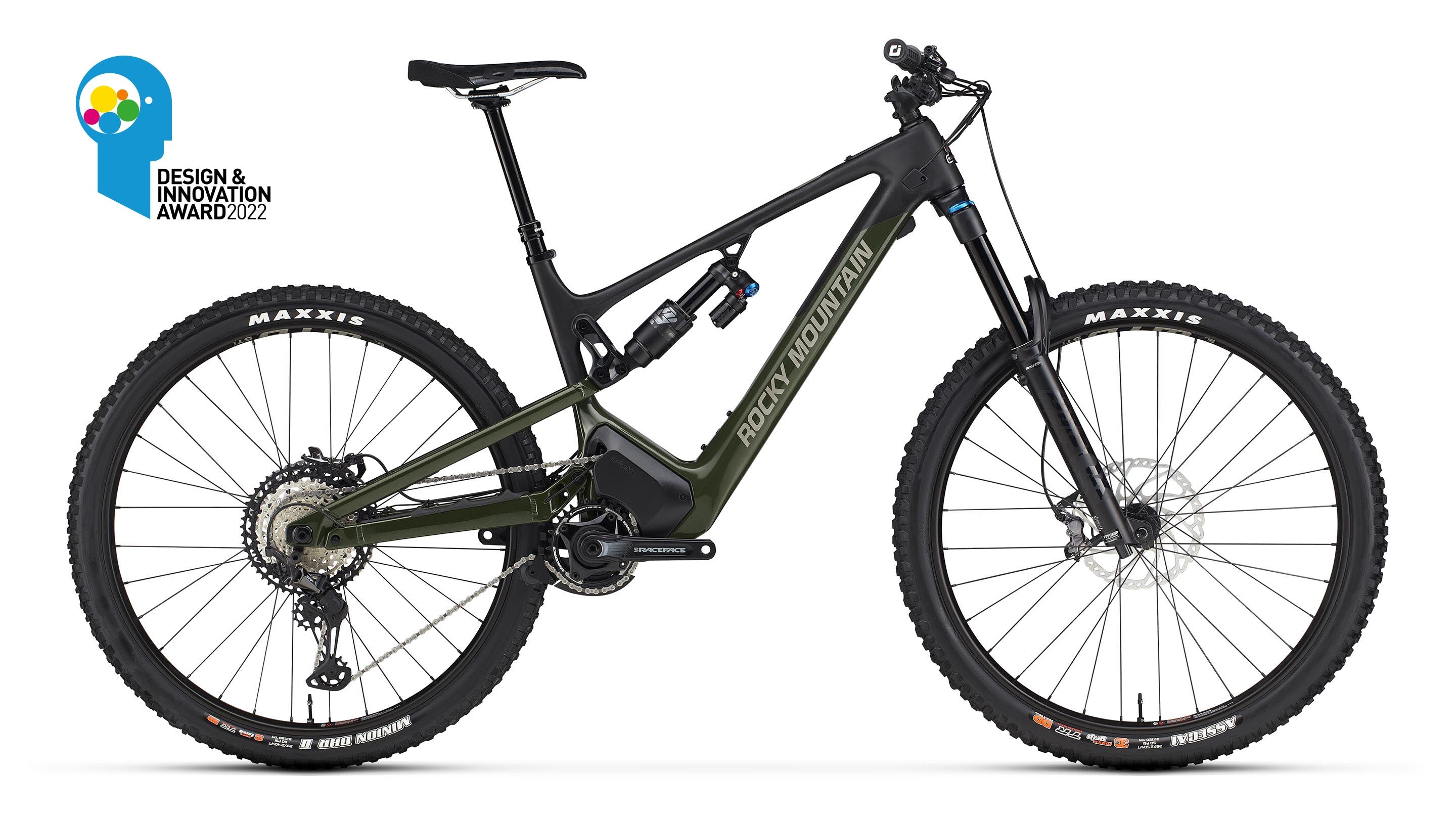

Altitude Powerplay Carbon 70

Altitude Powerplay Carbon 70

Altitude Powerplay Carbon 70

Rated 5.0 out of 5

Based on 6 reviews

Overview

Intended use: Enduro

Rear travel: 160

Description

Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking. The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability.

Wheel Size:

29

29

Size:

SM

SM LG MD XL

Color:

Cinnamon Girl / Black Dog / Love Me Tender

Variant

Register your Altitude Powerplay Carbon 70

Specifications

Frame

SMOOTHWALL™ Carbon. Integrated Display. Mid-High Pivot Smoothlink Suspension System. Press Fit BB. RIDE-4™ Adjustable Geometry + Suspension Rate. 160mm Travel. FORM™ Alloy Rear Triangle
Fork

Fox 38 Float EVOL GRIP Performance Series 170mm | 44mm Offset
Front Travel

170
Shock

Fox Float X2 Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ
Rear Travel

160
Headset

FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem

Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m
Handlebar

Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips

ODI Elite Pro Lock On
Brakes

Shimano XT Trail 4 Piston | Metal Pads | F: Shimano RT66 203mm | R: Shimano RT66 203mm
Shifters

Shimano XT
Rear Derailleur

Shimano XT
Cranks & Chainring

Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Bottom Bracket

FSA BB89.5 24mm
Cassette

Shimano XT 10-51T

Chain

Shimano M8100
Front Hub

Rocky Mountain Sealed Boost 15mm
Rear Hub

DT Swiss Hybrid 370 Boost 148mm
Spokes

F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
Rims

WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape | Valves Incl
Tires

F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready | Cushcore XC Tire Inserts
Seatpost

Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm
Saddle

WTB Volt Race 142
Drive System

Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 700w Peak Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency Classe 1 eMTB System | Designed in Canada
Battery

720 Wh Removable Integrated Li-Ion | xxx g
Remote

Rocky Mountain Micro Remote
Display

Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Weight

54 LBS|24.54 KGS
Notes

We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.

Geometry

Wheel size

RIDE-9/4 POSITION

Learn more

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	20	20	20	20
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	17	17	17	17
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	13	13	13	13
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	9	9	9	9
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	20	20	20	20
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	17	17	17	17
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	13	13	13	13
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	9	9	9	9
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	34	34	34	34
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	31	31	31	31
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	27	27	27	27
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	24	24	24	24
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	34	34	34	34
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	31	31	31	31
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	27	27	27	27
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	24	24	24	24
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

Sizing chart

These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.

Frame Size

157.5 - 170 cm / 5’2” - 5’7”

167.5 - 177.5 cm / 5’6” - 5’10”

175 - 188 cm / 5’9” - 6’2”

185.5 - 198 cm / 6’1” - 6’6”

Owners resources

Features and technologies

Dyname 4.0

Dyname™ 4.0

Dyname™ 4.0, only available on Powerplay, is incredibly powerful and is truly a leader among e-bike motors. We designed the power curve within the software to deliver the 108Nm smoothly, allowing you as the rider to soft pedal around tight switchbacks or drop the hammer through a chunky, punchy, portion of trail.

Size Specific Tune

Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.

Two-position axle

The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.

RIDE-4™ adjustment system

The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.

SMOOTHWALL™ Carbon

Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.

Compatible parts

Bearing Eyelet Tool Kit

Bearing Eyelet Tool Kit

$59.00

Hanger Kit 12x1.0

Hanger Kit 12x1.0

$49.50

Save $144.00

Overtime Pack 2.0

Overtime Pack 2.0

$575.00

$719.00

Drive Side Cover Kit

Drive Side Cover Kit

$36.50

Bearing Kit 4

$38.00

Charger 4 Amps Kit Dyname 4

Charger 4 Amps Kit Dyname 4

$120.00

UDH Stopper Kit

UDH Stopper Kit

$14.90

Upper Chain Guide Kit PP

Upper Chain Guide Kit PP

$15.00

Charge Port Rubber Door Powerplay

Charge Port Rubber Door Powerplay

$7.50

Charger 2 Amps Kit Dyname 4

Charger 2 Amps Kit Dyname 4

$65.00

average rating 5.0 out of 5

Based on 6 reviews

5 Stars

6 Reviews
4 Stars

0 Reviews
3 Stars

0 Reviews
2 Stars

0 Reviews
1 Star

0 Reviews

100% of reviewers would recommend this product to a friend

Sort by

Review posted

Reviewed by Sandee

Verified Reviewer

Rated 5 out of 5

Great bike

This bike rides beautifully, great up and super fun down. I'm in the market for an e-bike and this one is top of the list.

Loading...

I recommend this product

Was this helpful?

Review posted

Reviewed by Eduardo

Verified Reviewer

Rated 5 out of 5

Demo ride Nelson, BC

The climbing was sooo much fun! Quite impressed with the descend…it does great through choppy sections and jumps!

Loading...

I recommend this product

Was this helpful?

Review posted

Reviewed by Kory D.

Verified Reviewer

Rated 5 out of 5

Back to the future

So much fun to ride going up the hill with the power assist. Downhill took a couple times to get used to as it is heavier/faster than normal (ride an Element A50) and a little nose heavy on the steep descents. The next few runs were as if I had owned the bike for years. Bottom line…It makes you feel 15 years old again with not a care in the world! So much fun.

Loading...

I recommend this product

Was this helpful?

Review posted

Reviewed by Steve J.

Verified Reviewer

Rated 5 out of 5

Island Demo

Met Pat and Wade at Marty’s and took a brand new (never ridden) Altitude C70 to Heartland for just over an hour. It’s smooth power and climbing ability was amazing. Met up with the boys the next day at Tzouhalem and took it out for another rip for an hour or so. Thanks again guys! I had Marty’s build me a Green/Black A70 the next week. Love it!

Loading...

I recommend this product

Was this helpful?

Review posted

Reviewed by Matthuw R.

Verified Reviewer

Rated 5 out of 5

Cumberland Demo

I had the chance to get out on the new PowerPlay for a few hours last Saturday when the RM Demo van was in Cumberland. Many thanks to Pat and Wade for setting the bike up for me and getting me out for a second ride in the same day. The RM specific e-tech is bveyr impressive and will have me seriously considering a PowerPlay when the time comes for a new bike.

Loading...

I recommend this product

Was this helpful?
