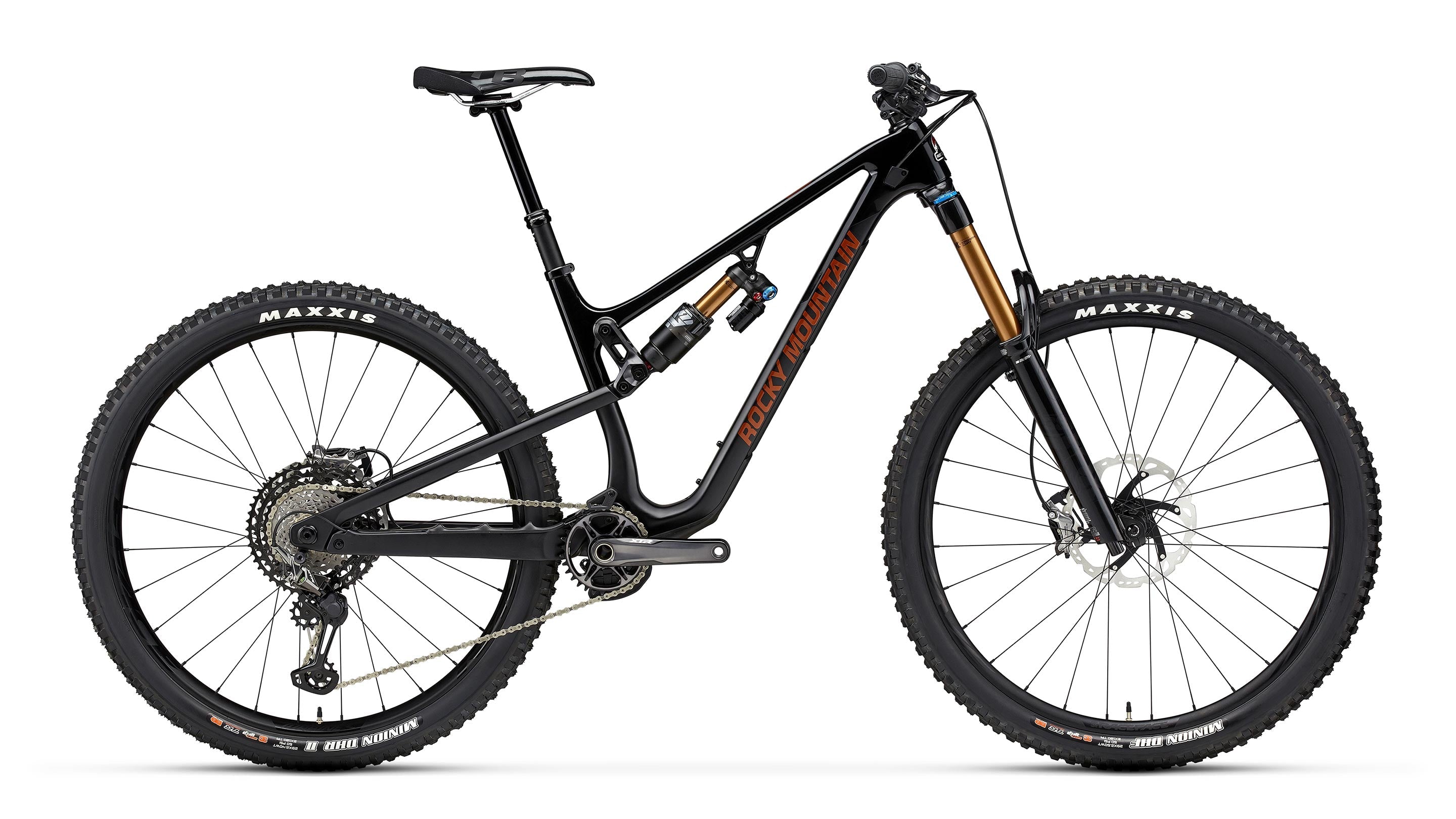

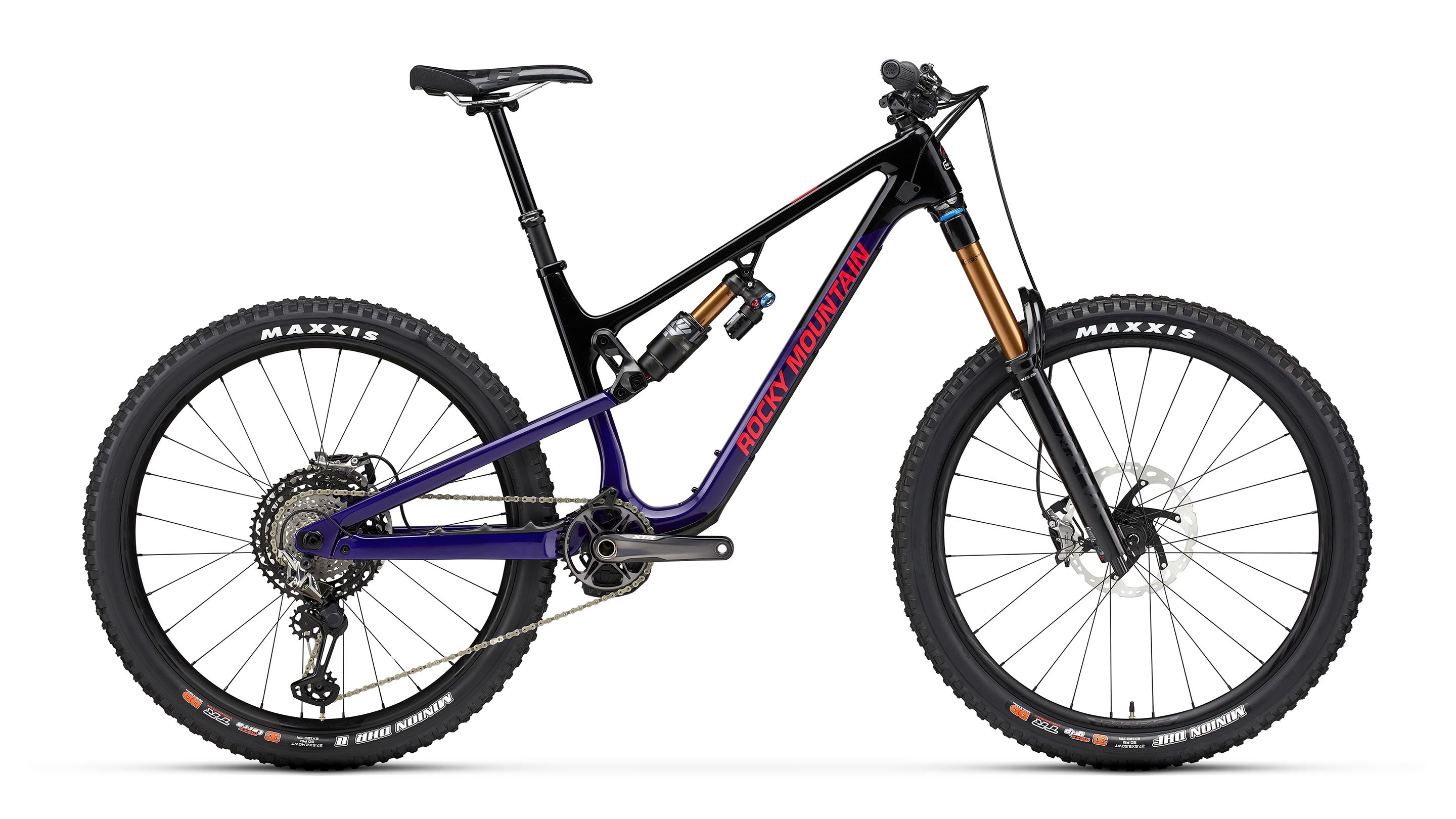

Altitude Carbon 90 Rally Edition
Overview
Intended use: Enduro
Rear travel: 160
Description
Race circuits or Sunday Shreds, the Altitude has you covered. Purpose-built and race-proven, it’s the ultimate enduro weapon for demolishing steep trails and making every session faster. Sure, total enduro capability translates nicely to podiums. But it also means bigger and more committing weekend rides for the rest of us. With so much capability in your corner, it makes you want to push limits, climb faster, and get better.
Altitude Carbon 90 Rally Edition
Sale price$9,499.00
Regular price (/)
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
RIDE-9/4 POSITION
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 611 | 640 | 673 |
| Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.4 | 75.4 | 75.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 |
| Reach (mm) | 449 | 474 | 504 |
| Stack (mm) | 624 | 638 | 652 |
| Standover Height (mm) | 813 | 813 | 813 |
| Wheelbase (mm) | 1218 | 1249 | 504 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 611 | 639 | 672 |
| Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.7 | 75.7 | 75.7 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 |
| Reach (mm) | 451 | 476 | 506 |
| Stack (mm) | 623 | 637 | 650 |
| Standover Height (mm) | 814 | 814 | 814 |
| Wheelbase (mm) | 1218 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 30 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 29 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 610 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65 | 65 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76 | 76 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 27 | 27 | 27 |
| Reach (mm) | 455 | 480 | 510 |
| Stack (mm) | 620 | 634 | 647 |
| Standover Height (mm) | 816 | 816 | 816 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 609 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.4 | 65.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 22 | 22 | 22 |
| Reach (mm) | 459 | 484 | 514 |
| Stack (mm) | 617 | 631 | 644 |
| Standover Height (mm) | 818 | 818 | 818 |
| Wheelbase (mm) | 1217 | 1248 | 1284 |
Standover height is measured 200 mm in front of the bottom bracket.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 19 | 19 | 19 |
| Reach (mm) | 461 | 486 | 516 |
| Stack (mm) | 616 | 629 | 643 |
| Standover Height (mm) | 819 | 819 | 819 |
| Wheelbase (mm) | 1216 | 1248 | 1284 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 611 | 640 | 673 |
| Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.4 | 75.4 | 75.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 |
| Reach (mm) | 449 | 474 | 504 |
| Stack (mm) | 624 | 638 | 652 |
| Standover Height (mm) | 813 | 813 | 813 |
| Wheelbase (mm) | 1218 | 1249 | 504 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 611 | 639 | 672 |
| Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.7 | 75.7 | 75.7 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 |
| Reach (mm) | 451 | 476 | 506 |
| Stack (mm) | 623 | 637 | 650 |
| Standover Height (mm) | 814 | 814 | 814 |
| Wheelbase (mm) | 1218 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 30 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 29 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 610 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65 | 65 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76 | 76 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 27 | 27 | 27 |
| Reach (mm) | 455 | 480 | 510 |
| Stack (mm) | 620 | 634 | 647 |
| Standover Height (mm) | 816 | 816 | 816 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 609 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.4 | 65.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 22 | 22 | 22 |
| Reach (mm) | 459 | 484 | 514 |
| Stack (mm) | 617 | 631 | 644 |
| Standover Height (mm) | 818 | 818 | 818 |
| Wheelbase (mm) | 1217 | 1248 | 1284 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 19 | 19 | 19 |
| Reach (mm) | 461 | 486 | 516 |
| Stack (mm) | 616 | 629 | 643 |
| Standover Height (mm) | 819 | 819 | 819 |
| Wheelbase (mm) | 1216 | 1248 | 1284 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 580 | 607 |
| Head Tube Angle (deg) | 64.4 | 64.4 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.4 | 75.4 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 20 | 19 |
| Reach (mm) | 423 | 449 |
| Stack (mm) | 601 | 610 |
| Standover Height (mm) | 767 | 797 |
| Wheelbase (mm) | 1172 | 1201 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 580 | 607 |
| Head Tube Angle (deg) | 64.7 | 64.6 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.7 | 75.6 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 18 | 17 |
| Reach (mm) | 425 | 451 |
| Stack (mm) | 599 | 608 |
| Standover Height (mm) | 769 | 800 |
| Wheelbase (mm) | 1172 | 1201 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 579 | 606 |
| Head Tube Angle (deg) | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 15 | 15 |
| Reach (mm) | 428 | 453 |
| Stack (mm) | 598 | 607 |
| Standover Height (mm) | 770 | 802 |
| Wheelbase (mm) | 1171 | 1200 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 579 | 606 |
| Head Tube Angle (deg) | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 15 | 14 |
| Reach (mm) | 428 | 453 |
| Stack (mm) | 598 | 607 |
| Standover Height (mm) | 770 | 802 |
| Wheelbase (mm) | 1171 | 1200 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 579 | 603 |
| Head Tube Angle (deg) | 65 | 65 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 12 | 12 |
| Reach (mm) | 430 | 455 |
| Stack (mm) | 596 | 606 |
| Standover Height (mm) | 771 | 804 |
| Wheelbase (mm) | 1171 | 1199 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 578 | 605 |
| Head Tube Angle (deg) | 65.2 | 65.2 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 9 | 10 |
| Reach (mm) | 432 | 457 |
| Stack (mm) | 595 | 604 |
| Standover Height (mm) | 772 | 806 |
| Wheelbase (mm) | 1170 | 1200 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 578 | 457 |
| Head Tube Angle (deg) | 65.2 | 65.2 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 9 | 10 |
| Reach (mm) | 432 | 457 |
| Stack (mm) | 595 | 604 |
| Standover Height (mm) | 772 | 807 |
| Wheelbase (mm) | 1170 | 1200 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 578 | 605 |
| Head Tube Angle (deg) | 65.4 | 65.4 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.4 | 76.4 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 7 | 7 |
| Reach (mm) | 434 | 459 |
| Stack (mm) | 593 | 602 |
| Standover Height (mm) | 773 | 809 |
| Wheelbase (mm) | 1170 | 1199 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 577 | 605 |
| Head Tube Angle (deg) | 65.5 | 65.5 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 425 - 436 | 426 - 437 |
| Bottom Bracket Drop (mm) | 4 | 5 |
| Reach (mm) | 437 | 461 |
| Stack (mm) | 591 | 601 |
| Standover Height (mm) | 774 | 812 |
| Wheelbase (mm) | 1169 | 1198 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 580 | 607 |
| Head Tube Angle (deg) | 64.4 | 64.4 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.4 | 75.4 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 20 | 19 |
| Reach (mm) | 423 | 449 |
| Stack (mm) | 601 | 610 |
| Standover Height (mm) | 767 | 797 |
| Wheelbase (mm) | 1172 | 1201 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 580 | 607 |
| Head Tube Angle (deg) | 64.7 | 64.6 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.7 | 75.6 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 18 | 17 |
| Reach (mm) | 425 | 451 |
| Stack (mm) | 599 | 608 |
| Standover Height (mm) | 769 | 800 |
| Wheelbase (mm) | 1172 | 1201 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 579 | 606 |
| Head Tube Angle (deg) | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 15 | 15 |
| Reach (mm) | 428 | 453 |
| Stack (mm) | 598 | 607 |
| Standover Height (mm) | 770 | 802 |
| Wheelbase (mm) | 1171 | 1200 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 579 | 606 |
| Head Tube Angle (deg) | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 15 | 14 |
| Reach (mm) | 428 | 453 |
| Stack (mm) | 598 | 607 |
| Standover Height (mm) | 770 | 802 |
| Wheelbase (mm) | 1171 | 1200 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 579 | 603 |
| Head Tube Angle (deg) | 65 | 65 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 12 | 12 |
| Reach (mm) | 430 | 455 |
| Stack (mm) | 596 | 606 |
| Standover Height (mm) | 771 | 804 |
| Wheelbase (mm) | 1171 | 1199 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 578 | 605 |
| Head Tube Angle (deg) | 65.2 | 65.2 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 9 | 10 |
| Reach (mm) | 432 | 457 |
| Stack (mm) | 595 | 604 |
| Standover Height (mm) | 772 | 806 |
| Wheelbase (mm) | 1170 | 1200 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 578 | 457 |
| Head Tube Angle (deg) | 65.2 | 65.2 |
| Head Tube Length (mm) |
