Intended use: Cross country
Rear travel: 120
Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.

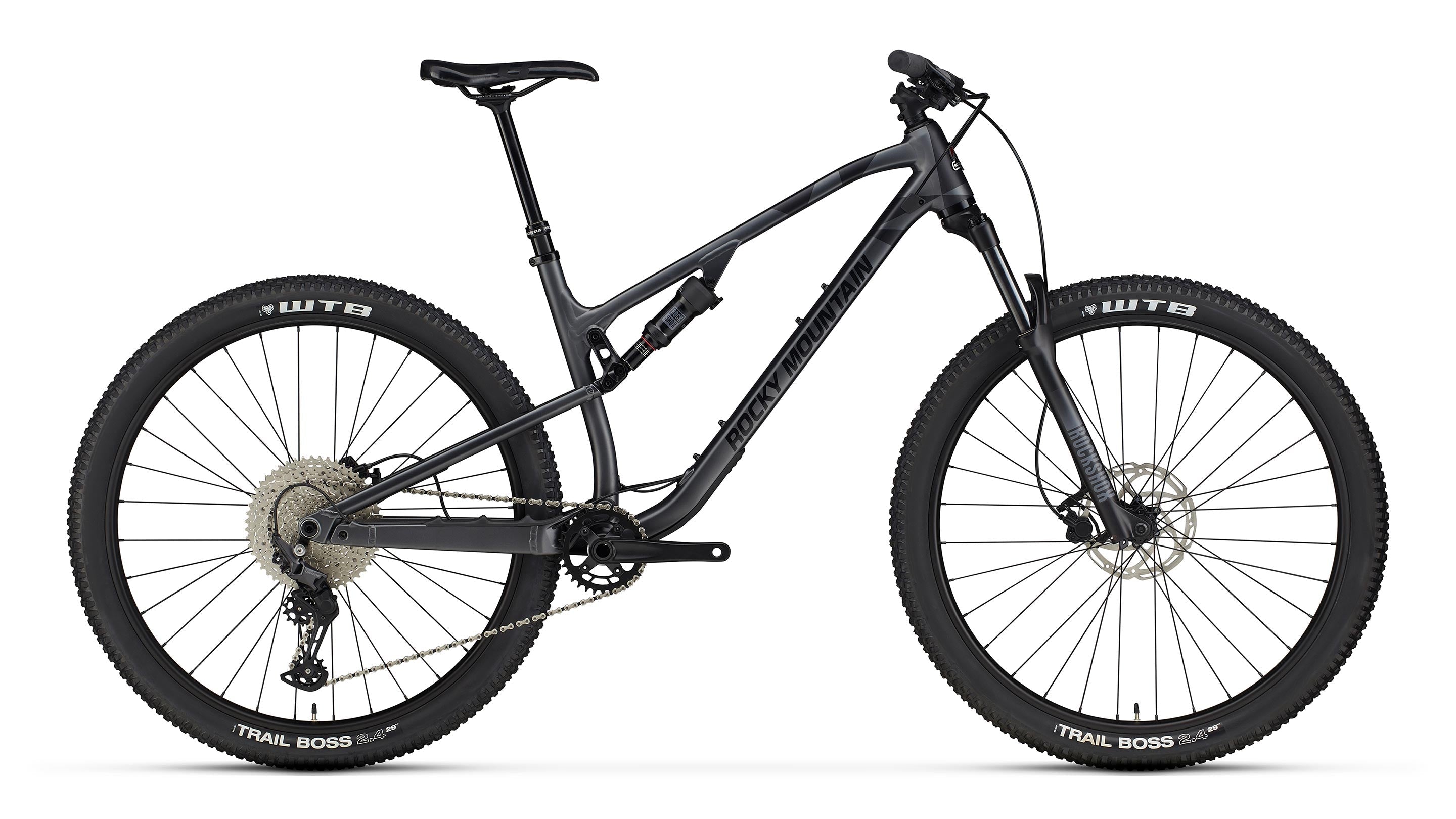

View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 577 | 605 | 632 | 664 |
| Head Tube Angle (deg) | 65 | 65 | 65 | 65 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76 | 76 | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 | 436 | 436 | 436 |
| Bottom Bracket Drop (mm) | 47 | 47 | 47 | 47 |
| Reach (mm) | 425 | 450 | 475 | 505 |
| Stack (mm) | 606 | 615 | 624 | 633 |
| Standover Height (mm) | 810 | 808 | 806 | 804 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 577 | 604 | 631 | 663 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 435 | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 43 | 43 | 43 | 43 |
| Reach (mm) | 427 | 452 | 477 | 507 |
| Stack (mm) | 607 | 616 | 625 | 635 |
| Standover Height (mm) | 811 | 809 | 807 | 805 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 576 | 603 | 631 | 663 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 435 | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 40 | 40 | 40 | 40 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 609 | 618 | 627 | 636 |
| Standover Height (mm) | 812 | 810 | 809 | 807 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 575 | 603 | 630 | 662 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 435 | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 610 | 619 | 628 | 637 |
| Standover Height (mm) | 813 | 811 | 810 | 808 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 577 | 605 | 632 | 664 |
| Head Tube Angle (deg) | 65 | 65 | 65 | 65 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76 | 76 | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 | 436 | 436 | 436 |
| Bottom Bracket Drop (mm) | 47 | 47 | 47 | 47 |
| Reach (mm) | 425 | 450 | 475 | 505 |
| Stack (mm) | 606 | 615 | 624 | 633 |
| Standover Height (mm) | 810 | 808 | 806 | 804 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 577 | 604 | 631 | 663 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 435 | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 43 | 43 | 43 | 43 |
| Reach (mm) | 427 | 452 | 477 | 507 |
| Stack (mm) | 607 | 616 | 625 | 635 |
| Standover Height (mm) | 811 | 809 | 807 | 805 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 576 | 603 | 631 | 663 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 435 | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 40 | 40 | 40 | 40 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 609 | 618 | 627 | 636 |
| Standover Height (mm) | 812 | 810 | 809 | 807 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 575 | 603 | 630 | 662 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 435 | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 610 | 619 | 628 | 637 |
| Standover Height (mm) | 813 | 811 | 810 | 808 |
| Wheelbase (mm) | 1173 | 1202 | 1231 | 1265 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | |
|---|---|
| Top Tube Horizontal (mm) | 542 |
| Head Tube Angle (deg) | 64.7 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 75.7 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 426 |
| Bottom Bracket Drop (mm) | 28 |
| Reach (mm) | 397 |
| Stack (mm) | 561 |
| Standover Height (mm) | 769 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | |
|---|---|
| Top Tube Horizontal (mm) | 542 |
| Head Tube Angle (deg) | 64.9 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 75.9 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 426 |
| Bottom Bracket Drop (mm) | 26 |
| Reach (mm) | 400 |
| Stack (mm) | 563 |
| Standover Height (mm) | 770 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | |
|---|---|
| Top Tube Horizontal (mm) | 541 |
| Head Tube Angle (deg) | 65.3 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 76.1 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 425 |
| Bottom Bracket Drop (mm) | 21 |
| Reach (mm) | 403 |
| Stack (mm) | 565 |
| Standover Height (mm) | 771 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| xs | |
|---|---|
| Top Tube Horizontal (mm) | 541 |
| Head Tube Angle (deg) | 65.5 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 76.5 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 425 |
| Bottom Bracket Drop (mm) | 19 |
| Reach (mm) | 405 |
| Stack (mm) | 566 |
| Standover Height (mm) | 772 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 542 |
| Head Tube Angle (deg) | 64.7 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 75.7 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 426 |
| Bottom Bracket Drop (mm) | 28 |
| Reach (mm) | 397 |
| Stack (mm) | 561 |
| Standover Height (mm) | 769 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 542 |
| Head Tube Angle (deg) | 64.9 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 75.9 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 426 |
| Bottom Bracket Drop (mm) | 26 |
| Reach (mm) | 400 |
| Stack (mm) | 563 |
| Standover Height (mm) | 770 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 541 |
| Head Tube Angle (deg) | 65.3 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 76.1 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 425 |
| Bottom Bracket Drop (mm) | 21 |
| Reach (mm) | 403 |
| Stack (mm) | 565 |
| Standover Height (mm) | 771 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
View from drive side
| Top Tube Horizontal (mm) | 541 |
| Head Tube Angle (deg) | 65.5 |
| Head Tube Length (mm) | 90 |
| Seat Tube Angle (deg) | 76.5 |
| Seat Tube Length (mm) | 355 |
| Rear Centre (mm) | 425 |
| Bottom Bracket Drop (mm) | 19 |
| Reach (mm) | 405 |
| Stack (mm) | 566 |
| Standover Height (mm) | 772 |
| Wheelbase (mm) | 1127 |
Standover height is measured 200 mm in front of the bottom bracket.
These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.
RIDE-4™ adjustment system
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
FORM™ Alloy
FORM™ tubesets utilize premium materials to meet our strict requirements. Each FORM™ tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.
Size Specific Tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
I'm a 5'1" female and I was able to LUCKILY snag an XS from my local bike shop. I took it out twice this past weekend and wow, what a great downhill experience. Stable and responsive and I feel so much more confident on this bike even after just two rides. Will be riding this one for a while.
