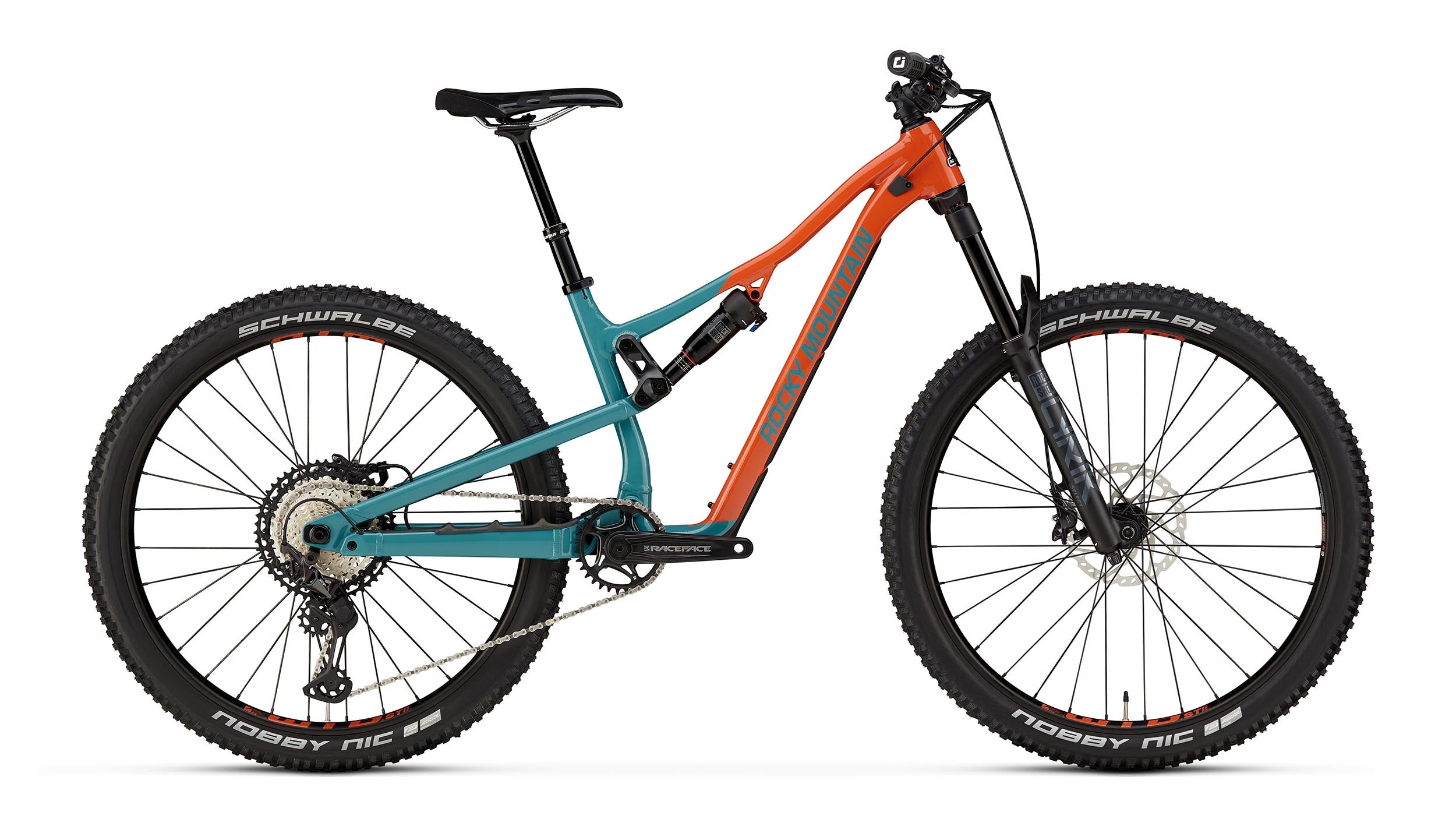

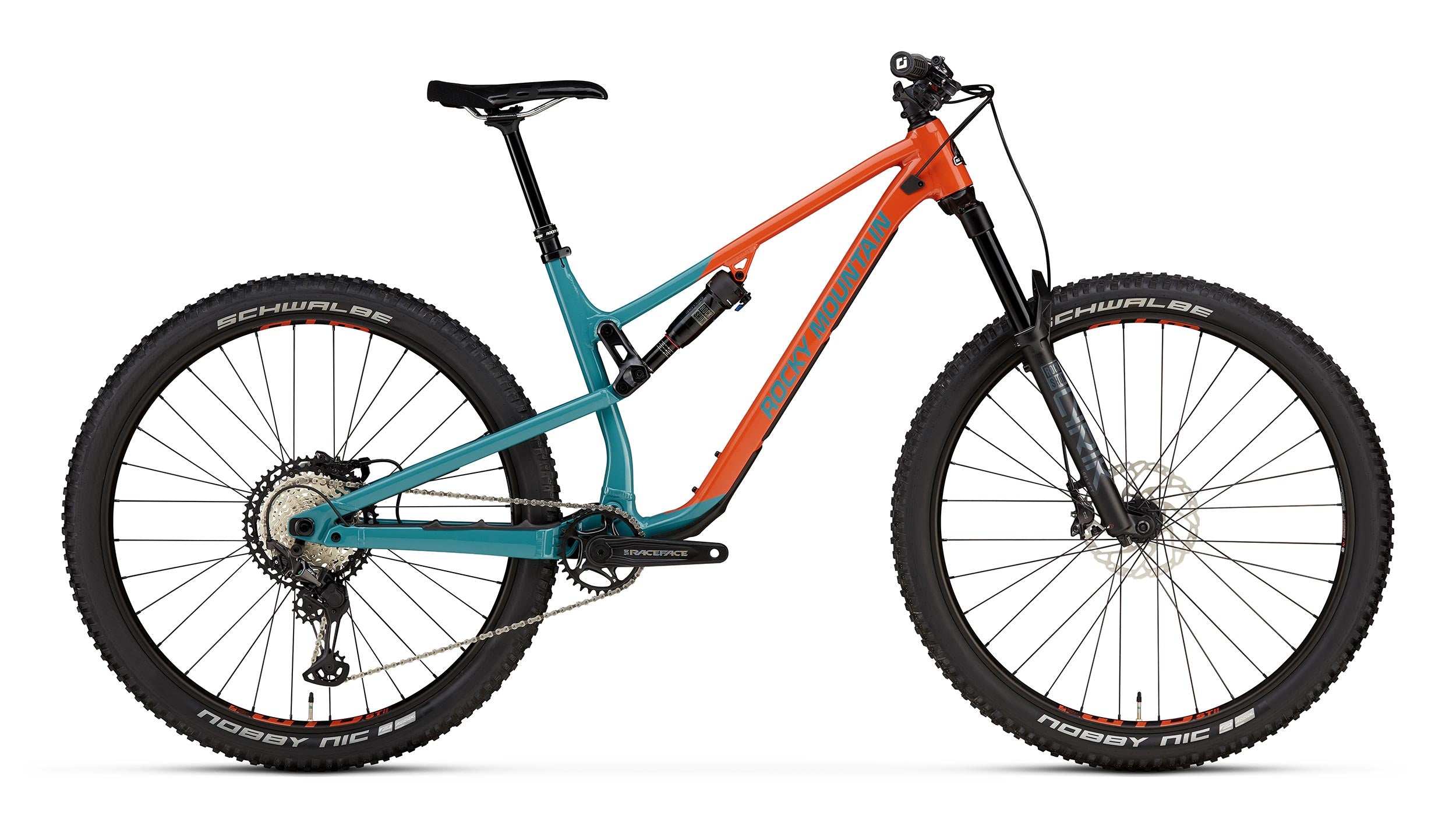

Instinct Alloy 50 Tour
Übersicht
Einsatzgebiet: Trail
Federung (H): 140
Beschreibung
Wenn du ein Fahrrad suchst, das alles kann, ist das Instinct deine Antwort. Wir haben ein Bike entwickelt, das für technische Trails geeignet ist, mit dem du aber trotzdem beim Klettern hart in die Pedale treten kannst. Geometrie, Rahmeneigenschaften und Federungskinematik wurden auf den neuesten Stand gebracht, um dein Selbstvertrauen bei Auf- und Abfahrten und allem, was dazwischen liegt, zu stärken.Vertraue deinem Instinct.
Instinct Alloy 50 Tour
Angebot€4.800,00
Regulärer Preis (/)
5 Jahre Garantie, übertragbar auf Zweitbesitzer
Wir glauben an unsere Produkte, deshalb bieten wir 5 Jahre Garantie auf unsere Rahmen, erweiterbar auf Zweitbesitzer. Erfahren Sie mehr
Wir sind für Dich da
Haben Sie Fragen zu unseren Fahrrädern? Unser Support-Team und unser Händlernetzwerk stehen Ihnen zur Verfügung.
Spezifikationen
Geometrie
Radgröße
RIDE-9/4 POSITION
RIDE-9/4 POSITION
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
| Reach (mm) | 430 | 456 | 481 | 511 |
| Stack (mm) | 615 | 619 | 633 | 646 |
| Standover Height (mm) | 742 | 798 | 798 | 798 |
| Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 614 | 618 | 631 | 645 |
| Standover Height (mm) | 744 | 799 | 799 | 799 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 629 | 643 |
| Standover Height (mm) | 745 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 630 | 643 |
| Standover Height (mm) | 746 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
| Reach (mm) | 437 | 462 | 487 | 517 |
| Stack (mm) | 611 | 615 | 628 | 642 |
| Standover Height (mm) | 749 | 801 | 801 | 801 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 613 | 627 | 640 |
| Standover Height (mm) | 750 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 614 | 627 | 640 |
| Standover Height (mm) | 751 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
| Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 441 | 466 | 491 | 521 |
| Stack (mm) | 608 | 612 | 625 | 639 |
| Standover Height (mm) | 754 | 803 | 803 | 803 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
| Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
| Reach (mm) | 444 | 468 | 493 | 523 |
| Stack (mm) | 606 | 610 | 624 | 637 |
| Standover Height (mm) | 756 | 804 | 804 | 804 |
| Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
| Reach (mm) | 430 | 456 | 481 | 511 |
| Stack (mm) | 615 | 619 | 633 | 646 |
| Standover Height (mm) | 742 | 798 | 798 | 798 |
| Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 614 | 618 | 631 | 645 |
| Standover Height (mm) | 744 | 799 | 799 | 799 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 629 | 643 |
| Standover Height (mm) | 745 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 630 | 643 |
| Standover Height (mm) | 746 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
| Reach (mm) | 437 | 462 | 487 | 517 |
| Stack (mm) | 611 | 615 | 628 | 642 |
| Standover Height (mm) | 749 | 801 | 801 | 801 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 613 | 627 | 640 |
| Standover Height (mm) | 750 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 614 | 627 | 640 |
| Standover Height (mm) | 751 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
| Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 441 | 466 | 491 | 521 |
| Stack (mm) | 608 | 612 | 625 | 639 |
| Standover Height (mm) | 754 | 803 | 803 | 803 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
| Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
| Reach (mm) | 444 | 468 | 493 | 523 |
| Stack (mm) | 606 | 610 | 624 | 637 |
| Standover Height (mm) | 756 | 804 | 804 | 804 |
| Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 551 | 578 |
| Head Tube Angle (deg) | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.3 | 76.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 27 | 27 |
| Reach (mm) | 408 | 433 |
| Stack (mm) | 585 | 594 |
| Standover Height (mm) | 754 | 754 |
| Wheelbase (mm) | 1134 | 1164 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 578 |
| Head Tube Angle (deg) | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 24 | 24 |
| Reach (mm) | 410 | 435 |
| Stack (mm) | 584 | 593 |
| Standover Height (mm) | 756 | 756 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 22 | 22 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 21 | 21 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 65.9 | 65.9 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.9 | 76.9 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 19 | 19 |
| Reach (mm) | 414 | 439 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 758 | 758 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 576 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 579 | 588 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 548 | 576 |
| Head Tube Angle (deg) | 66.3 | 66.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.3 | 77.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 13 | 13 |
| Reach (mm) | 419 | 444 |
| Stack (mm) | 577 | 586 |
| Standover Height (mm) | 760 | 760 |
| Wheelbase (mm) | 1132 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 548 | 575 |
| Head Tube Angle (deg) | 66.6 | 66.6 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.6 | 77.6 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 425 - 436 | 425 - 436 |
| Bottom Bracket Drop (mm) | 11 | 11 |
| Reach (mm) |
