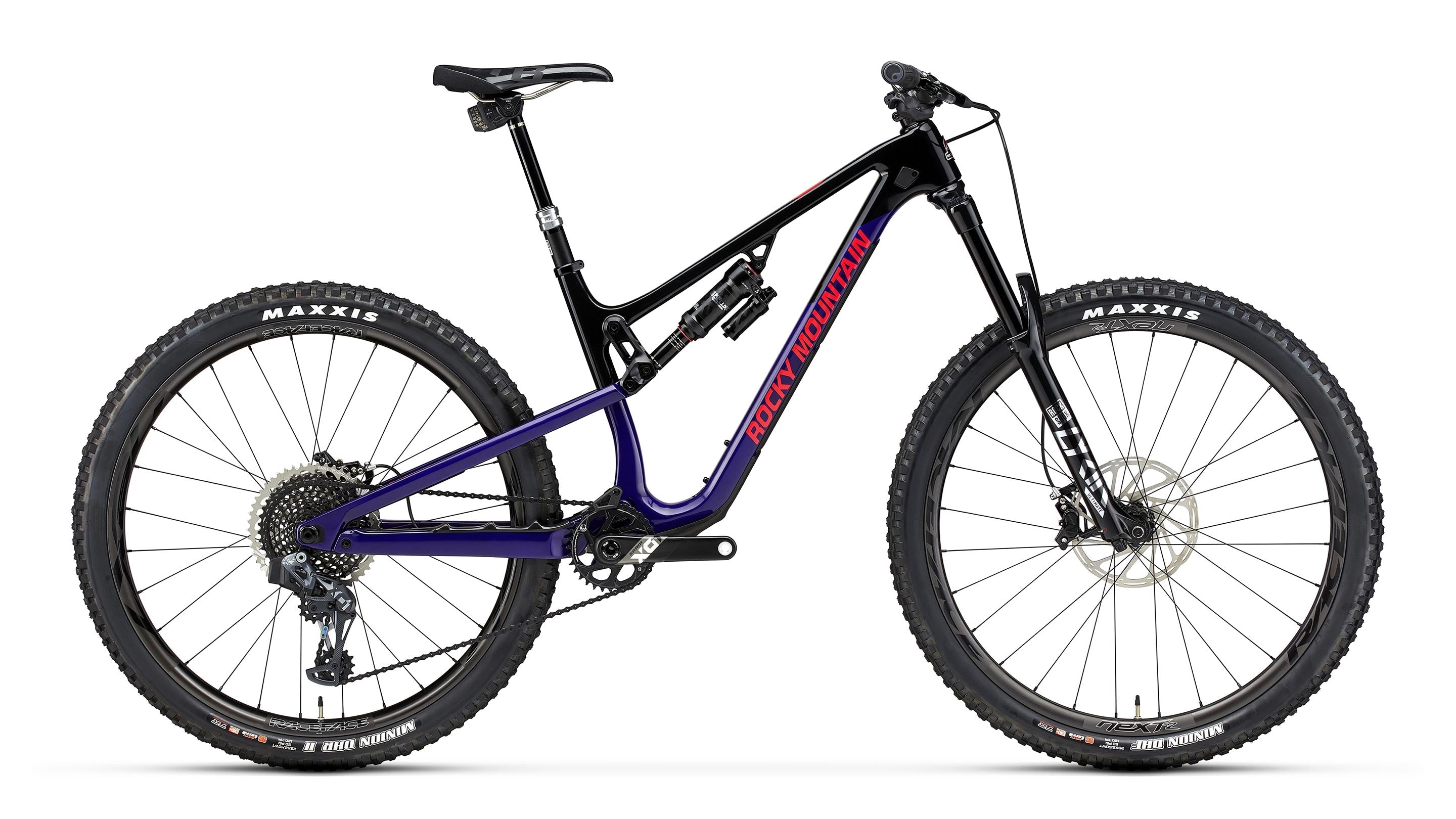

Altitude Carbon 99
Übersicht
Einsatzgebiet: Enduro
Federung (H): 160
Beschreibung
Ob Rennstrecken oder sonntägliches Shredden, das Altitude macht alles mit. Spezialgefertigt und rennerprobt, ist es die ultimative Endurowaffe, um steile Trails zu bezwingen und in jeder Session noch schneller zu werden. Klar, die totale Enduro-Fähigkeit lässt sich gut in Podiumsplätze umsetzen. Aber für den Rest von uns bedeutet sie auch längere und intensivere Wochenendausflüge. Mit so viel Leistungsfähigkeit möchte man alle Möglichkeiten ausreizen, schneller klettern und sich verbessern.
Altitude Carbon 99
Angebot€9.618,22
Regulärer Preis (/)
Spezifikationen
Geometrie
Radgröße
RIDE-9/4 POSITION
RIDE-9/4 POSITION
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 611 | 640 | 673 |
| Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.4 | 75.4 | 75.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 |
| Reach (mm) | 449 | 474 | 504 |
| Stack (mm) | 624 | 638 | 652 |
| Standover Height (mm) | 813 | 813 | 813 |
| Wheelbase (mm) | 1218 | 1249 | 504 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 611 | 639 | 672 |
| Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.7 | 75.7 | 75.7 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 |
| Reach (mm) | 451 | 476 | 506 |
| Stack (mm) | 623 | 637 | 650 |
| Standover Height (mm) | 814 | 814 | 814 |
| Wheelbase (mm) | 1218 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 30 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 29 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 610 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65 | 65 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76 | 76 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 27 | 27 | 27 |
| Reach (mm) | 455 | 480 | 510 |
| Stack (mm) | 620 | 634 | 647 |
| Standover Height (mm) | 816 | 816 | 816 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 609 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.4 | 65.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 22 | 22 | 22 |
| Reach (mm) | 459 | 484 | 514 |
| Stack (mm) | 617 | 631 | 644 |
| Standover Height (mm) | 818 | 818 | 818 |
| Wheelbase (mm) | 1217 | 1248 | 1284 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 19 | 19 | 19 |
| Reach (mm) | 461 | 486 | 516 |
| Stack (mm) | 616 | 629 | 643 |
| Standover Height (mm) | 819 | 819 | 819 |
| Wheelbase (mm) | 1216 | 1248 | 1284 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 611 | 640 | 673 |
| Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.4 | 75.4 | 75.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 |
| Reach (mm) | 449 | 474 | 504 |
| Stack (mm) | 624 | 638 | 652 |
| Standover Height (mm) | 813 | 813 | 813 |
| Wheelbase (mm) | 1218 | 1249 | 504 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 611 | 639 | 672 |
| Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.7 | 75.7 | 75.7 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 |
| Reach (mm) | 451 | 476 | 506 |
| Stack (mm) | 623 | 637 | 650 |
| Standover Height (mm) | 814 | 814 | 814 |
| Wheelbase (mm) | 1218 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 30 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 610 | 639 | 672 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 29 | 30 | 30 |
| Reach (mm) | 453 | 478 | 508 |
| Stack (mm) | 622 | 635 | 649 |
| Standover Height (mm) | 815 | 815 | 815 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 610 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65 | 65 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76 | 76 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 27 | 27 | 27 |
| Reach (mm) | 455 | 480 | 510 |
| Stack (mm) | 620 | 634 | 647 |
| Standover Height (mm) | 816 | 816 | 816 |
| Wheelbase (mm) | 1217 | 1249 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 |
| Reach (mm) | 457 | 482 | 512 |
| Stack (mm) | 619 | 632 | 646 |
| Standover Height (mm) | 817 | 817 | 817 |
| Wheelbase (mm) | 1217 | 1248 | 1285 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 609 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.4 | 65.4 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 22 | 22 | 22 |
| Reach (mm) | 459 | 484 | 514 |
| Stack (mm) | 617 | 631 | 644 |
| Standover Height (mm) | 818 | 818 | 818 |
| Wheelbase (mm) | 1217 | 1248 | 1284 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 19 | 19 | 19 |
| Reach (mm) | 461 | 486 | 516 |
| Stack (mm) | 616 | 629 | 643 |
| Standover Height (mm) | 819 | 819 | 819 |
| Wheelbase (mm) | 1216 | 1248 | 1284 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 580 | 607 |
| Head Tube Angle (deg) | 64.4 | 64.4 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.4 | 75.4 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 20 | 19 |
| Reach (mm) | 423 | 449 |
| Stack (mm) | 601 | 610 |
| Standover Height (mm) | 767 | 797 |
| Wheelbase (mm) | 1172 | 1201 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 580 | 607 |
| Head Tube Angle (deg) | 64.7 | 64.6 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.7 | 75.6 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 18 | 17 |
| Reach (mm) | 425 | 451 |
| Stack (mm) | 599 | 608 |
| Standover Height (mm) | 769 | 800 |
| Wheelbase (mm) | 1172 | 1201 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 579 | 606 |
| Head Tube Angle (deg) | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 15 | 15 |
| Reach (mm) | 428 | 453 |
| Stack (mm) | 598 | 607 |
| Standover Height (mm) | 770 | 802 |
| Wheelbase (mm) | 1171 | 1200 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 579 | 606 |
| Head Tube Angle (deg) | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 15 | 14 |
| Reach (mm) | 428 | 453 |
| Stack (mm) | 598 | 607 |
| Standover Height (mm) | 770 | 802 |
| Wheelbase (mm) | 1171 | 1200 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 579 | 603 |
| Head Tube Angle (deg) | 65 | 65 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 12 | 12 |
| Reach (mm) | 430 | 455 |
| Stack (mm) | 596 | 606 |
| Standover Height (mm) | 771 | 804 |
| Wheelbase (mm) | 1171 | 1199 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 578 | 605 |
| Head Tube Angle (deg) | 65.2 | 65.2 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 9 | 10 |
| Reach (mm) | 432 | 457 |
| Stack (mm) | 595 | 604 |
| Standover Height (mm) | 772 | 806 |
| Wheelbase (mm) | 1170 | 1200 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 578 | 457 |
| Head Tube Angle (deg) | 65.2 | 65.2 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 9 | 10 |
| Reach (mm) | 432 | 457 |
| Stack (mm) | 595 | 604 |
| Standover Height (mm) | 772 | 807 |
| Wheelbase (mm) | 1170 | 1200 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 578 | 605 |
| Head Tube Angle (deg) | 65.4 | 65.4 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.4 | 76.4 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 7 | 7 |
| Reach (mm) | 434 | 459 |
| Stack (mm) | 593 | 602 |
| Standover Height (mm) | 773 | 809 |
| Wheelbase (mm) | 1170 | 1199 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | |
|---|---|---|
| Top Tube Horizontal (mm) | 577 | 605 |
| Head Tube Angle (deg) | 65.5 | 65.5 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 425 - 436 | 426 - 437 |
| Bottom Bracket Drop (mm) | 4 | 5 |
| Reach (mm) | 437 | 461 |
| Stack (mm) | 591 | 601 |
| Standover Height (mm) | 774 | 812 |
| Wheelbase (mm) | 1169 | 1198 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 580 | 607 |
| Head Tube Angle (deg) | 64.4 | 64.4 |
| Head Tube Length (mm) | 100 | 110 |
| Seat Tube Angle (deg) | 75.4 | 75.4 |
| Seat Tube Length (mm) | 380 | 420 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 20 | 19 |
| Reach (mm) | 423 | 449 |
| Stack (mm) | 601 | 610 |
