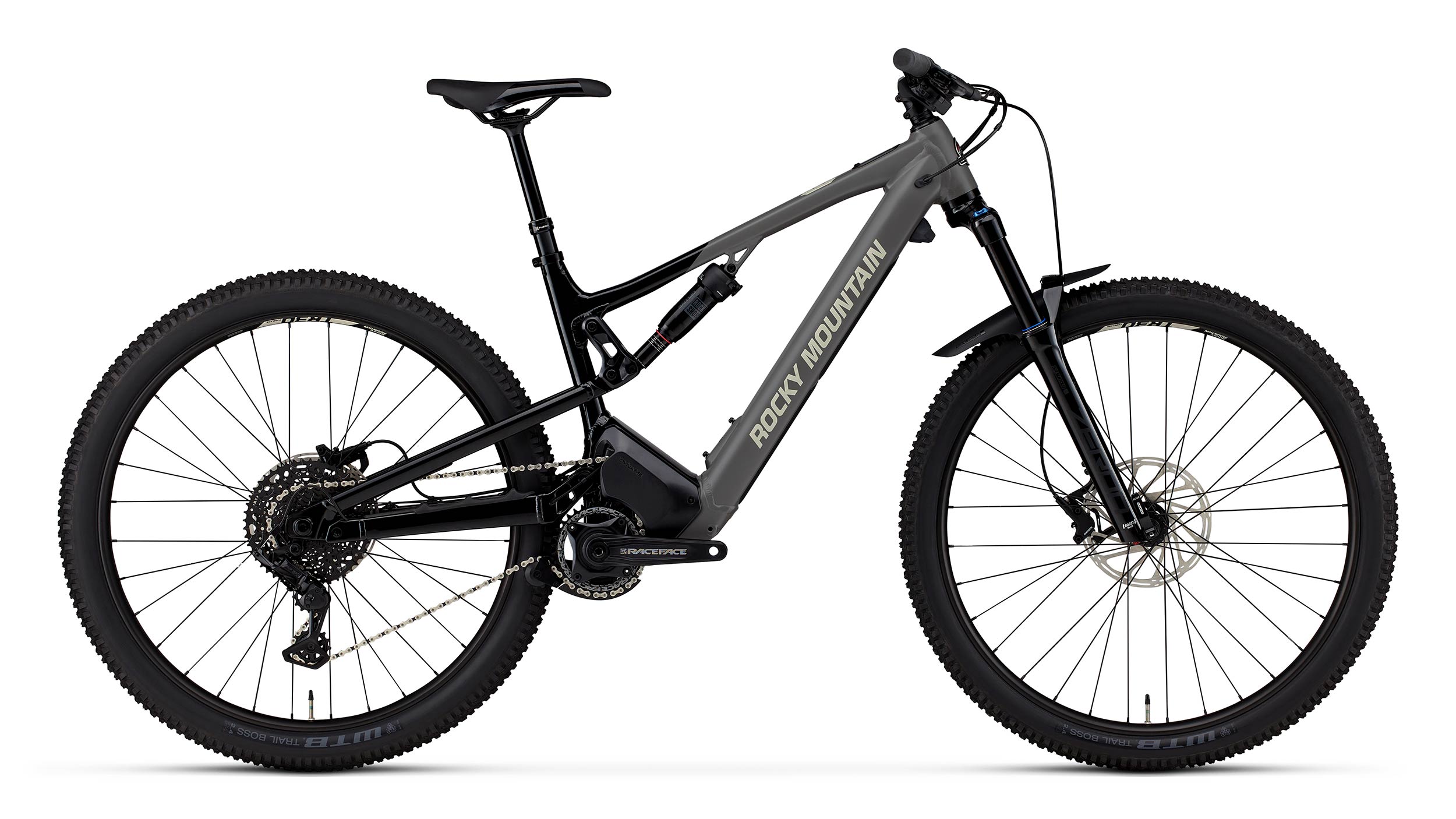

Instinct Powerplay Alloy 10
Übersicht
Einsatzgebiet: Trail
Federung (H): 140
Beschreibung
The Instinct Powerplay is built for exploration. Versatile geometry, dialed kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
Instinct Powerplay Alloy 10
Angebot$5,499.00
Regulärer Preis (/)
Spezifikationen
Geometrie
Radgröße
RIDE-9/4 POSITION
Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 585 | 610 | 638 | 671 |
| Head Tube Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 439 | 439 | 439 | 439 |
| Bottom Bracket Drop (mm) | 42 | 42 | 42 | 42 |
| Reach (mm) | 432 | 457 | 482 | 512 |
| Stack (mm) | 624 | 624 | 632 | 646 |
| Standover Height (mm) | 819 | 818 | 817 | 818 |
| Wheelbase (mm) | 1201 | 1226 | 1256 | 1292 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 585 | 610 | 637 | 670 |
| Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 | 64.4 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 | 76.4 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 | 438 | 438 | 438 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 622 | 622 | 630 | 644 |
| Standover Height (mm) | 820 | 820 | 820 | 820 |
| Wheelbase (mm) | 1201 | 1226 | 1255 | 1292 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 584 | 609 | 636 | 670 |
| Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 | 64.7 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 | 437 | 437 | 437 |
| Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
| Reach (mm) | 438 | 463 | 488 | 518 |
| Stack (mm) | 620 | 620 | 628 | 642 |
| Standover Height (mm) | 822 | 821 | 821 | 821 |
| Wheelbase (mm) | 1200 | 1225 | 1254 | 1291 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 583 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 64.95 | 64.95 | 64.95 | 64.95 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.95 | 76.95 | 76.95 | 76.95 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 | 436 | 436 | 436 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 441 | 466 | 491 | 520 |
| Stack (mm) | 618 | 618 | 626 | 639 |
| Standover Height (mm) | 823 | 823 | 823 | 823 |
| Wheelbase (mm) | 1199 | 1224 | 1253 | 1290 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 585 | 610 | 638 | 671 |
| Head Tube Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 439 | 439 | 439 | 439 |
| Bottom Bracket Drop (mm) | 42 | 42 | 42 | 42 |
| Reach (mm) | 432 | 457 | 482 | 512 |
| Stack (mm) | 624 | 624 | 632 | 646 |
| Standover Height (mm) | 819 | 818 | 817 | 818 |
| Wheelbase (mm) | 1201 | 1226 | 1256 | 1292 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 585 | 610 | 637 | 670 |
| Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 | 64.4 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 | 76.4 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 | 438 | 438 | 438 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 622 | 622 | 630 | 644 |
| Standover Height (mm) | 820 | 820 | 820 | 820 |
| Wheelbase (mm) | 1201 | 1226 | 1255 | 1292 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 584 | 609 | 636 | 670 |
| Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 | 64.7 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 | 437 | 437 | 437 |
| Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
| Reach (mm) | 438 | 463 | 488 | 518 |
| Stack (mm) | 620 | 620 | 628 | 642 |
| Standover Height (mm) | 822 | 821 | 821 | 821 |
| Wheelbase (mm) | 1200 | 1225 | 1254 | 1291 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 583 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 64.95 | 64.95 | 64.95 | 64.95 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.95 | 76.95 | 76.95 | 76.95 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 | 436 | 436 | 436 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 441 | 466 | 491 | 520 |
| Stack (mm) | 618 | 618 | 626 | 639 |
| Standover Height (mm) | 823 | 823 | 823 | 823 |
| Wheelbase (mm) | 1199 | 1224 | 1253 | 1290 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
