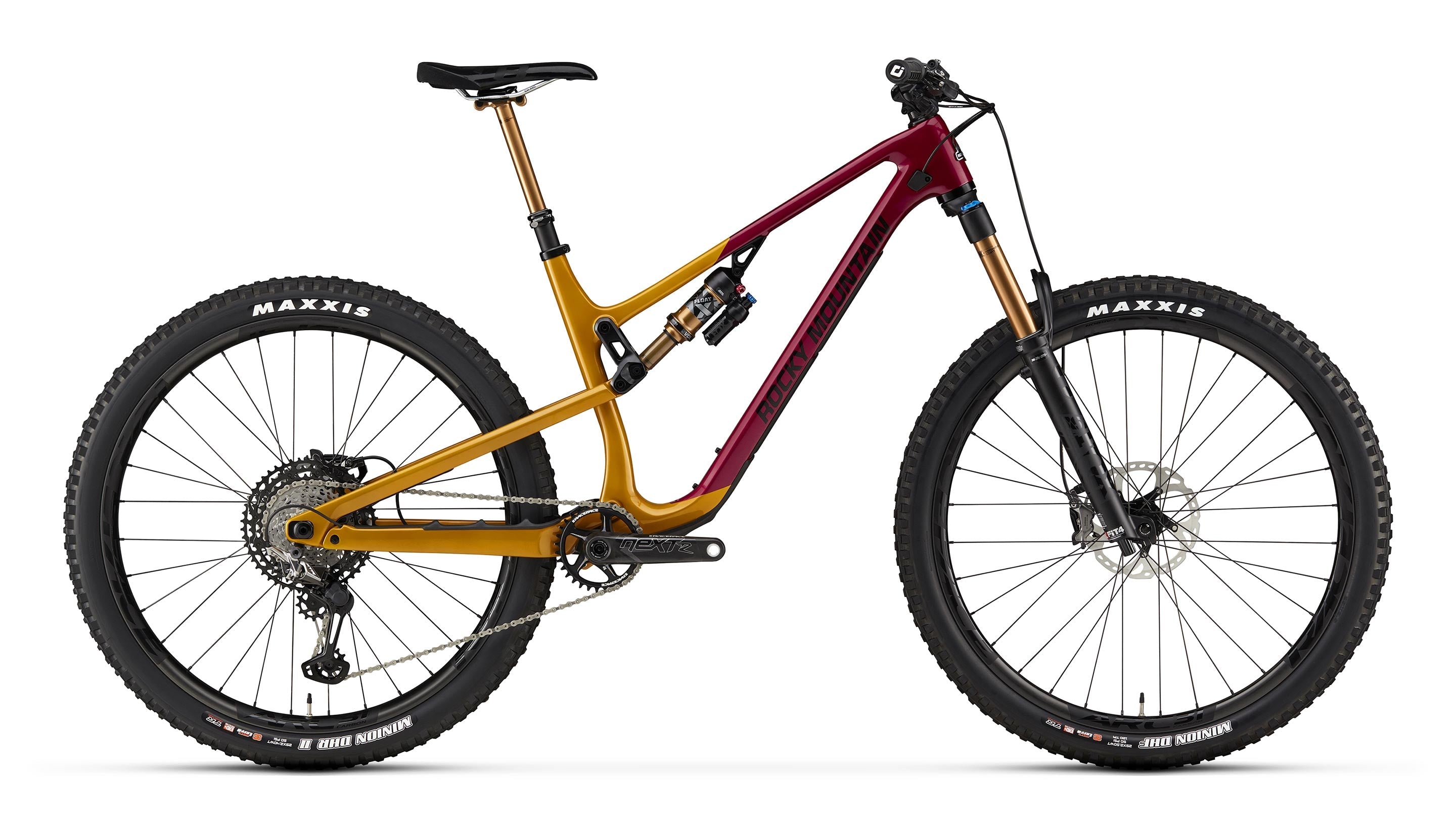

Instinct Carbon 90
Übersicht
Einsatzgebiet: Trail
Federung (H): 140
Beschreibung
Wenn du ein Fahrrad suchst, das alles kann, ist das Instinct deine Antwort. Wir haben ein Bike entwickelt, das für technische Trails geeignet ist, mit dem du aber trotzdem beim Klettern hart in die Pedale treten kannst. Geometrie, Rahmeneigenschaften und Federungskinematik wurden auf den neuesten Stand gebracht, um dein Selbstvertrauen bei Auf- und Abfahrten und allem, was dazwischen liegt, zu stärken.Vertraue deinem Instinct.
Instinct Carbon 90
Angebot$7,839.00
Regulärer Preis$9,799.00 (/)
Spezifikationen
Geometrie
Radgröße
RIDE-9/4 POSITION
RIDE-9/4 POSITION
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
| Reach (mm) | 430 | 456 | 481 | 511 |
| Stack (mm) | 615 | 619 | 633 | 646 |
| Standover Height (mm) | 742 | 798 | 798 | 798 |
| Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 614 | 618 | 631 | 645 |
| Standover Height (mm) | 744 | 799 | 799 | 799 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 629 | 643 |
| Standover Height (mm) | 745 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 630 | 643 |
| Standover Height (mm) | 746 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
| Reach (mm) | 437 | 462 | 487 | 517 |
| Stack (mm) | 611 | 615 | 628 | 642 |
| Standover Height (mm) | 749 | 801 | 801 | 801 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 613 | 627 | 640 |
| Standover Height (mm) | 750 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 614 | 627 | 640 |
| Standover Height (mm) | 751 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
| Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 441 | 466 | 491 | 521 |
| Stack (mm) | 608 | 612 | 625 | 639 |
| Standover Height (mm) | 754 | 803 | 803 | 803 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
| Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
| Reach (mm) | 444 | 468 | 493 | 523 |
| Stack (mm) | 606 | 610 | 624 | 637 |
| Standover Height (mm) | 756 | 804 | 804 | 804 |
| Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
| Reach (mm) | 430 | 456 | 481 | 511 |
| Stack (mm) | 615 | 619 | 633 | 646 |
| Standover Height (mm) | 742 | 798 | 798 | 798 |
| Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 614 | 618 | 631 | 645 |
| Standover Height (mm) | 744 | 799 | 799 | 799 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 629 | 643 |
| Standover Height (mm) | 745 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 630 | 643 |
| Standover Height (mm) | 746 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
| Reach (mm) | 437 | 462 | 487 | 517 |
| Stack (mm) | 611 | 615 | 628 | 642 |
| Standover Height (mm) | 749 | 801 | 801 | 801 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 613 | 627 | 640 |
| Standover Height (mm) | 750 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 614 | 627 | 640 |
| Standover Height (mm) | 751 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
| Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 441 | 466 | 491 | 521 |
| Stack (mm) | 608 | 612 | 625 | 639 |
| Standover Height (mm) | 754 | 803 | 803 | 803 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
| Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
| Reach (mm) | 444 | 468 | 493 | 523 |
| Stack (mm) | 606 | 610 | 624 | 637 |
| Standover Height (mm) | 756 | 804 | 804 | 804 |
| Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 551 | 578 |
| Head Tube Angle (deg) | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.3 | 76.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 27 | 27 |
| Reach (mm) | 408 | 433 |
| Stack (mm) | 585 | 594 |
| Standover Height (mm) | 754 | 754 |
| Wheelbase (mm) | 1134 | 1164 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 578 |
| Head Tube Angle (deg) | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 24 | 24 |
| Reach (mm) | 410 | 435 |
| Stack (mm) | 584 | 593 |
| Standover Height (mm) | 756 | 756 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 22 | 22 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 21 | 21 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 65.9 | 65.9 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.9 | 76.9 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 19 | 19 |
| Reach (mm) | 414 | 439 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 758 | 758 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 576 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 579 | 588 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 548 | 576 |
| Head Tube Angle (deg) | 66.3 | 66.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.3 | 77.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 13 | 13 |
| Reach (mm) | 419 | 444 |
| Stack (mm) | 577 | 586 |
| Standover Height (mm) | 760 | 760 |
| Wheelbase (mm) | 1132 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 548 | 575 |
| Head Tube Angle (deg) | 66.6 | 66.6 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.6 | 77.6 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 425 - 436 | 425 - 436 |
| Bottom Bracket Drop (mm) | 11 | 11 |
| Reach (mm) | 421 | 446 |
| Stack (mm) | 576 | 584 |
| Standover Height (mm) | 761 | 761 |
| Wheelbase (mm) | 1132 | 1161 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 551 | 578 |
| Head Tube Angle (deg) | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.3 | 76.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 27 | 27 |
| Reach (mm) | 408 | 433 |
| Stack (mm) | 585 | 594 |
| Standover Height (mm) | 754 | 754 |
| Wheelbase (mm) | 1134 | 1164 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 550 | 578 |
| Head Tube Angle (deg) | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 24 | 24 |
| Reach (mm) | 410 | 435 |
| Stack (mm) | 584 | 593 |
| Standover Height (mm) | 756 | 756 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 22 | 22 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 21 | 21 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 65.9 | 65.9 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.9 | 76.9 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 19 | 19 |
| Reach (mm) | 414 | 439 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 758 | 758 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 549 | 576 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 579 | 588 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 548 | 576 |
| Head Tube Angle (deg) | 66.3 | 66.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.3 | 77.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 13 | 13 |
| Reach (mm) | 419 | 444 |
| Stack (mm) | 577 | 586 |
| Standover Height (mm) | 760 | 760 |
| Wheelbase (mm) | 1132 | 1162 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
| Top Tube Horizontal (mm) | 548 | 575 |
| Head Tube Angle (deg) | 66.6 | 66.6 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.6 | 77.6 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 425 - 436 | 425 - 436 |
| Bottom Bracket Drop (mm) | 11 | 11 |
| Reach (mm) | 421 | 446 |
| Stack (mm) | 576 | 584 |
| Standover Height (mm) | 761 | 761 |
| Wheelbase (mm) | 1132 | 1161 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Größentabelle
Diese Tabelle dient nur als grober Anhaltspunkt. Faktoren, die die Auswahl der richtigen Fahrradgröße beeinflussen, sind die Proportionen des Fahrers, der Fahrstil und persönliche Vorlieben. Rocky Mountain empfiehlt daher, die Bikes immer bei einem Vertragshändler Probe zu fahren und professionell anpassen zu lassen.
Frame Size
27.5”: 142.5 - 157.5 cm / 4’8” - 5’2”
29”: Not available for this frame size
29”: Not available for this frame size
27.5”: 155 - 167.5 cm / 5’1” - 5’6”
29”:157.5 - 170 cm / 5’2” - 5’7”
29”:157.5 - 170 cm / 5’2” - 5’7”
27.5”: Not available for this frame size
29”: 167.5 - 177.5 cm / 5’6” - 5’10”
29”: 167.5 - 177.5 cm / 5’6” - 5’10”
27.5”: Not available for this frame size
29”: 175 - 188 cm / 5’9” - 6’2”
29”: 175 - 188 cm / 5’9” - 6’2”
27.5”: Not available for this frame size
29”: 185.5 - 198 cm / 6’1” - 6’6”
29”: 185.5 - 198 cm / 6’1” - 6’6”
Ressourcen des Eigentümers
- Benutzerhandbuch
- Technisches Handbuch (Instinct Alloy) | Enthält eine Anleitung zur Einstellung der Aufhängung, Drehmomentangaben und alles, was Sie zum Einstellen Ihres Fahrrads benötigen.
- Technisches Handbuch (Instinct Carbon) | Enthält eine Anleitung zur Einstellung der Aufhängung, Drehmomentangaben und alles, was Sie zum Einstellen Ihres Fahrrads benötigen.
- FAQ
Merkmale und Technologie
RIDE-9™ Einstellung
Unser patentiertes RIDE-9™ System verwendet zwei verzahnte Chip-Einsätze, um die Geometrie und Federung des Bikes entsprechend des Fahrstils, Geländes und Gewichts anpassen zu können.
Zwei-Positionen-Achse
Die Altitude-, Instinct- und Slayer-Rahmen, sowohl aus Aluminium als auch aus Carbon, sind mit einem zweistufigen Ausfallende (+/- 10 mm) ausgestattet, das es dem Fahrer ermöglicht, sein bevorzugtes Setup zu wählen.
Size Specific Tune
Was Dämpfereinstellungen angeht, kommt es doch auf die Größe an. Jedes unserer Fully Bikes wird mit besonderen Dämpfereinstellungen versehen.
SMOOTHWALL™ Carbon
Smoothwall™ Carbon basiert auf einem der weltweit anspruchsvollsten Carbon Herstellungsverfahren, die unseren Rahmen branchenführende Steifigkeit-zu-Gewicht Werte (STW), legendäre Fahrqualität und hohe Lebensdauer verleihen.
Durchsuchen Sie die Sammlung
Neu
Instinct Carbon 99RockShox Lyrik Ultimate Flight Attendant, RockShox Super Deluxe Ultimate Flight Attendant, Sram X0 Transmission Wireless
Angebot$10,499.00
Neu
Instinct Carbon 90Fox 36 Grip 2 Factory, Fox Float X Factory, Shimano XTR
Angebot$8,999.00
Neu
Instinct Carbon 70RockShox Lyrik Select+, RockShox Super Deluxe Ultimate, Sram X0 Transmission Wireless
Angebot$7,899.00
Neu
Instinct Carbon 70Fox 36 Performance Elite, Fox Float X Performance Elite, Shimano XT
Angebot$6,499.00
Neu
Instinct Carbon 50RockShox Lyrik Select RC, Fox Float X Performance, Shimano XT
Angebot$5,499.00
Neu
Instinct Carbon 30Marzocchi Z2 Rail, Fox Float DPS Performance, Shimano Deore
Angebot$4,699.00
Neu
Instinct C FramesetFox Float X Factory
Angebot$3,899.00
Neu
Instinct Alloy 50Fox 36 GRIP Performance, Fox Float X Performance, Shimano XT
Angebot$4,599.00
Neu
Instinct Alloy 30RockShox 35 Gold RL, RockShox Deluxe Select RT, Shimano Deore
Angebot$3,399.00
Neu
Instinct Alloy 10RockShox Recon Silver RL, RockShox Deluxe Select, Shimano CUES
Angebot$2,899.00
Compatible parts
Bearing Eyelet Tool Kit
Angebot$59.00
Shock Bearing Eyelet Kit 1
Angebot$44.90
Hanger 29
Angebot$44.90
Bearing Kit 2
Angebot$44.90
Hinterachse 5
Angebot$23.90
Shock Bolt Kit 1
Angebot$21.90
Canadian Shield Kit 29''
Angebot$9.90
Chain Guide Kit 2
Angebot$69.90
Pivot Bolt Kit 3
Angebot$189.99
Protection Kit 2
Angebot$74.90
