Einsatzgebiet: Enduro
Federung (H): 160
Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking. The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability.

Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 587 | 612 | 639 | 673 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 75.5 | 75.5 | 75.5 | 75.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 439 | 439 | 439 | 439 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 425 | 450 | 475 | 508 |
| Stack (mm) | 629 | 628 | 638 | 652 |
| Standover Height (mm) | 834 | 832 | 831 | 831 |
| Wheelbase (mm) | 1210 | 1237 | 1264 | 1301 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 587 | 612 | 639 | 672 |
| Head Tube Angle (deg) | 63.7 | 63.7 | 63.7 | 63.7 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 75.7 | 75.7 | 75.7 | 75.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 | 438 | 438 | 438 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 427 | 452 | 477 | 507 |
| Stack (mm) | 627 | 627 | 636 | 650 |
| Standover Height (mm) | 835 | 833 | 833 | 833 |
| Wheelbase (mm) | 1209 | 1234 | 1263 | 1300 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 586 | 611 | 638 | 671 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 76 | 76 | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 | 437 | 437 | 437 |
| Bottom Bracket Drop (mm) | 27 | 27 | 27 | 27 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 625 | 625 | 634 | 647 |
| Standover Height (mm) | 836 | 835 | 835 | 835 |
| Wheelbase (mm) | 1208 | 1233 | 1262 | 1299 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 585 | 610 | 637 | 671 |
| Head Tube Angle (deg) | 64.3 | 64.3 | 64.3 | 64.3 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 76.3 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 | 436 | 436 | 436 |
| Bottom Bracket Drop (mm) | 24 | 24 | 24 | 24 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 623 | 623 | 632 | 645 |
| Standover Height (mm) | 838 | 836 | 836 | 836 |
| Wheelbase (mm) | 1207 | 1232 | 1261 | 1298 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 587 | 612 | 639 | 673 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 75.5 | 75.5 | 75.5 | 75.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 439 | 439 | 439 | 439 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 425 | 450 | 475 | 508 |
| Stack (mm) | 629 | 628 | 638 | 652 |
| Standover Height (mm) | 834 | 832 | 831 | 831 |
| Wheelbase (mm) | 1210 | 1237 | 1264 | 1301 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 587 | 612 | 639 | 672 |
| Head Tube Angle (deg) | 63.7 | 63.7 | 63.7 | 63.7 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 75.7 | 75.7 | 75.7 | 75.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 | 438 | 438 | 438 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 427 | 452 | 477 | 507 |
| Stack (mm) | 627 | 627 | 636 | 650 |
| Standover Height (mm) | 835 | 833 | 833 | 833 |
| Wheelbase (mm) | 1209 | 1234 | 1263 | 1300 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 586 | 611 | 638 | 671 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 76 | 76 | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 | 437 | 437 | 437 |
| Bottom Bracket Drop (mm) | 27 | 27 | 27 | 27 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 625 | 625 | 634 | 647 |
| Standover Height (mm) | 836 | 835 | 835 | 835 |
| Wheelbase (mm) | 1208 | 1233 | 1262 | 1299 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Ansicht von der Antriebsseite
| Top Tube Horizontal (mm) | 585 | 610 | 637 | 671 |
| Head Tube Angle (deg) | 64.3 | 64.3 | 64.3 | 64.3 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 76.3 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 | 436 | 436 | 436 |
| Bottom Bracket Drop (mm) | 24 | 24 | 24 | 24 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 623 | 623 | 632 | 645 |
| Standover Height (mm) | 838 | 836 | 836 | 836 |
| Wheelbase (mm) | 1207 | 1232 | 1261 | 1298 |
Die Standover-Höhe wird 200 mm vor dem Tretlager gemessen.
Diese Tabelle dient nur als grober Anhaltspunkt. Faktoren, die die Auswahl der richtigen Fahrradgröße beeinflussen, sind die Proportionen des Fahrers, der Fahrstil und persönliche Vorlieben. Rocky Mountain empfiehlt daher, die Bikes immer bei einem Vertragshändler Probe zu fahren und professionell anpassen zu lassen.

Dyname™ S4 Pro
Der Dyname™ S4 Pro ist unglaublich leistungsstark und ein echter Spitzenreiter unter den E-Bike-Motoren. Wir haben die Leistungskurve in der Software so gestaltet, dass die 108 Nm gleichmäßig abgegeben werden, so dass Sie als Fahrer in engen Kurven sanft in die Pedale treten oder auf einem rauhen, kraftvollen Abschnitt des Trails richtig Gas geben können.

FORM™ Aluminium
Nicht alle Aluminium Rohre sind gleich. FORM Aluminium ist der Schlüssel zu den einzigartigen Fahreigenschaften unserer Bikes.

Size Specific Tune
Was Dämpfereinstellungen angeht, kommt es doch auf die Größe an. Jedes unserer Fully Bikes wird mit besonderen Dämpfereinstellungen versehen.

Zwei-Positionen-Achse
Die Altitude-, Instinct- und Slayer-Rahmen, sowohl aus Aluminium als auch aus Carbon, sind mit einem zweistufigen Ausfallende (+/- 10 mm) ausgestattet, das es dem Fahrer ermöglicht, sein bevorzugtes Setup zu wählen.

RIDE-4™ Einstellung
Das RIDE-4-Einstellsystem ermöglicht dem Fahrer eine schnelle Feinabstimmung der Geometrie mit einem einzigen Inbusschlüssel. Vier Konfigurationen sind dank eines drehbaren Chips möglich.
I'm 100% satisfied when it's comes to power of the motor. this ebike is a beast.
J buy this bike in Bassano Moretti Italy .in novembre 2023 . J find this probem :
1 too noise
2 to much rates (80_90) to reach maximum Power 108 nm .
3 j think that you have to change this parameter to give everyone the possibility of riding with this e-bike also old people like me 70 yo , j like Mountain but j Need like others ,to do less efforts when driving in hard thail

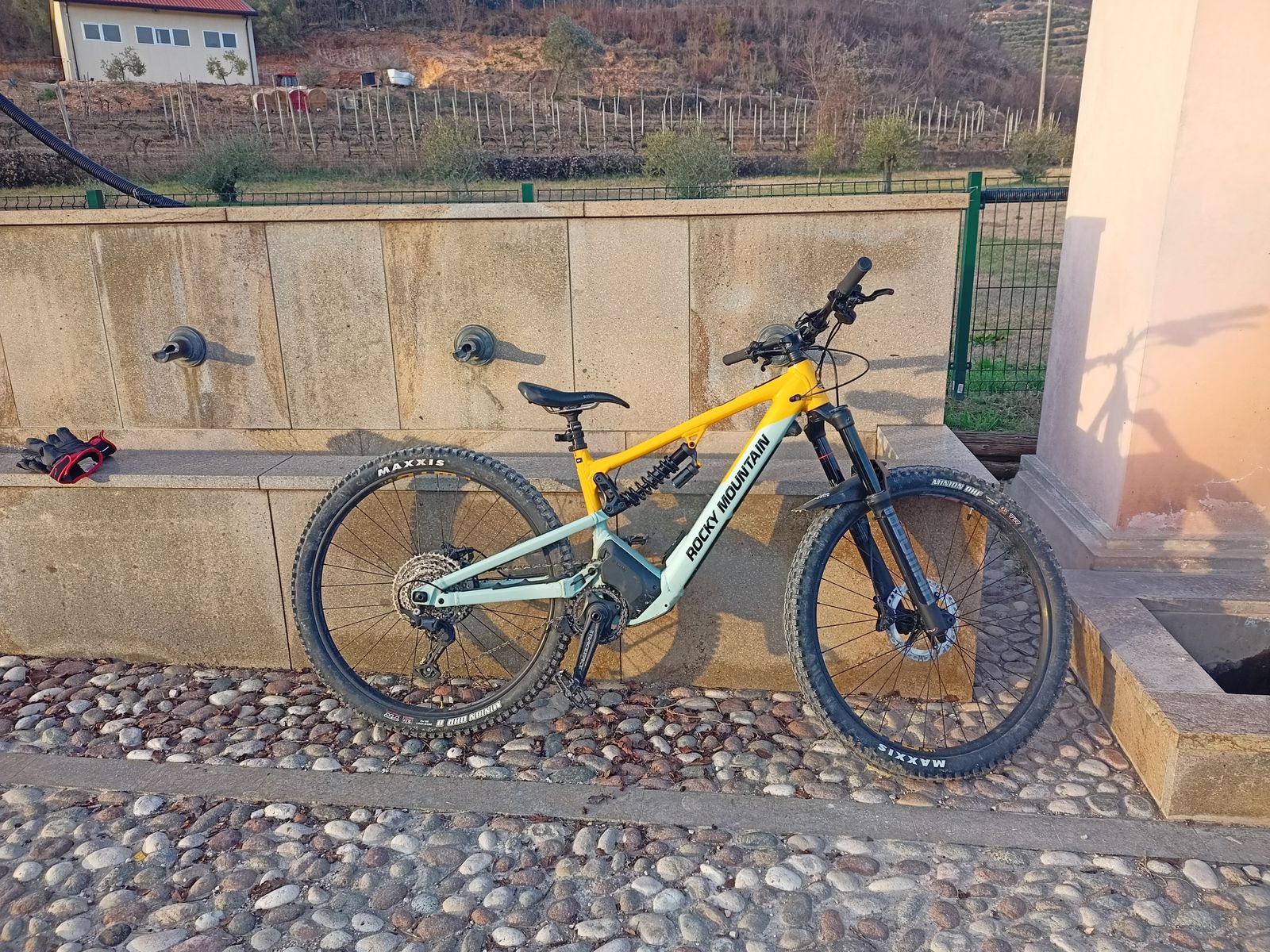

I arrive from the Powerplay Altitude 2020, and I must say that I liked it so much that I decided to purchase the 2022 model. Improved in many things, a great bike, it really performs!
I made some upgrades, such as the ZEB ULTIMATE fork, OHLINS shock absorber, and two-tone tires.
If you're looking for an aggressive and agile enduro bike, this is for you!

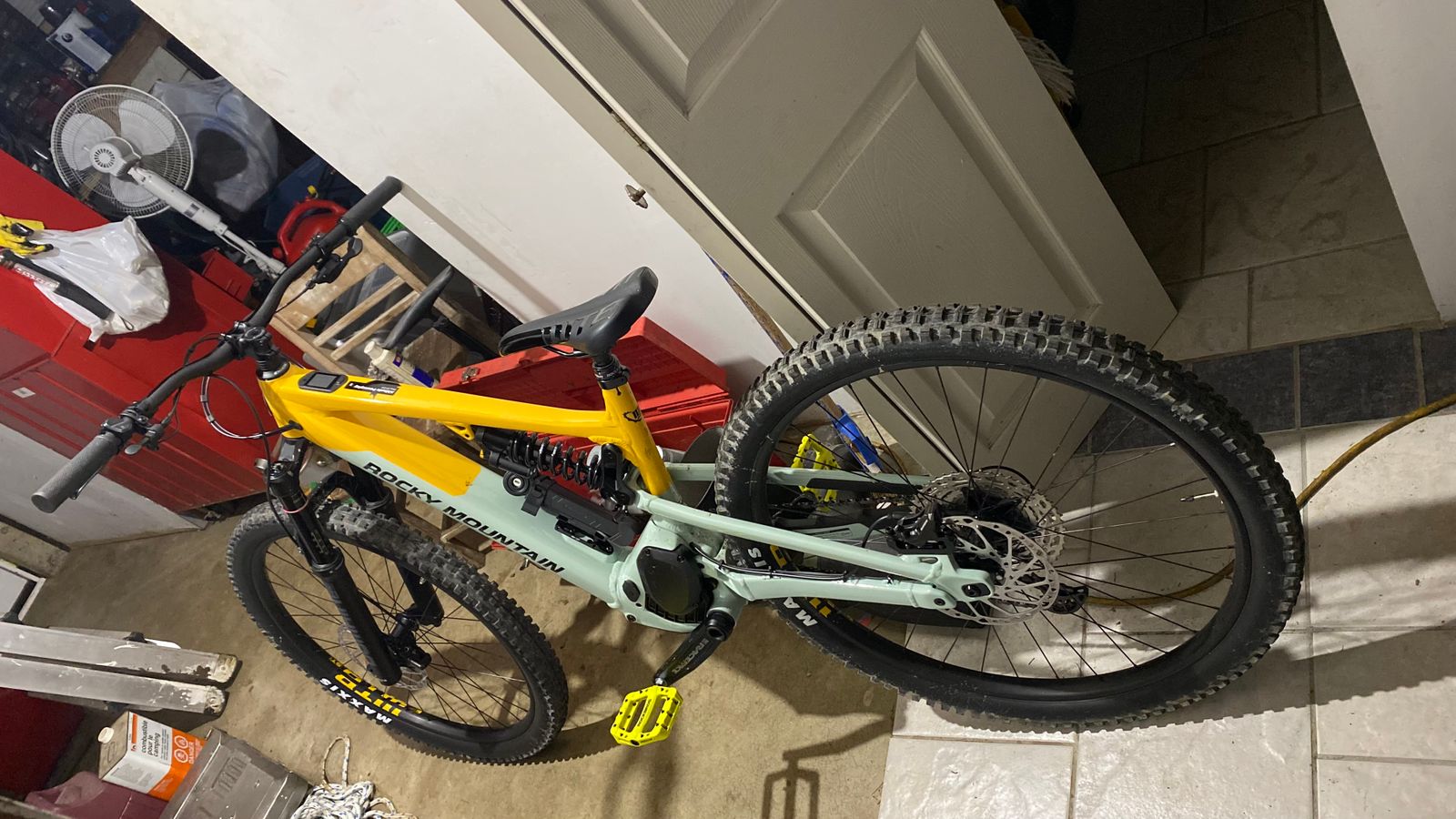

I threw it on credit, threw the bars on, bought some lime green nylon pedals from Amazon for $26. Used My genius to get air in the front tire without the adapter while plugging it in till the light turned green, maybe 20 minutes. Took it for a ride, and I was disappointed at first cause of the chain noise, the chain would also bind up rolling backwards. I threw some pneumatic tool oil on the chain, tried adjusting the shift lever, took it too the bike shop, but they said it’s normal and the chain will break in and it will subside. I’ve been riding for 3 days now, it goes up steel terrain like nothing, and I’m used to the roughness in the chain in the lower 3 gears that I barely use. I think I was just in too low of a gear on flat ground to begin with. Buy the bike it’s amazing and the drive system is super simple, has the most torque, and the most seamless of any other drive system, which is what makes it the best. I bike for exercise so having the bike make you work a little is also a plus for Me.
