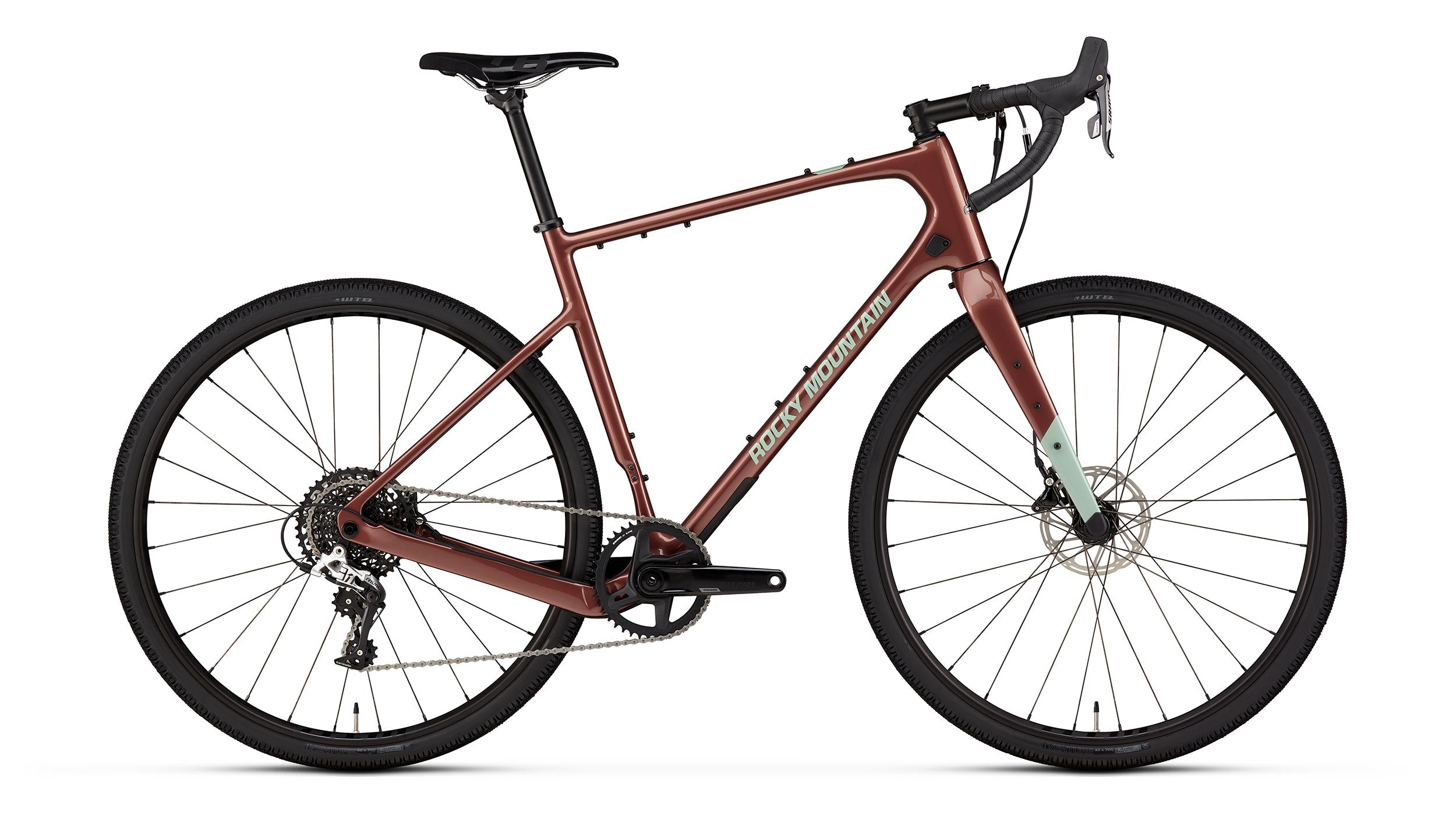

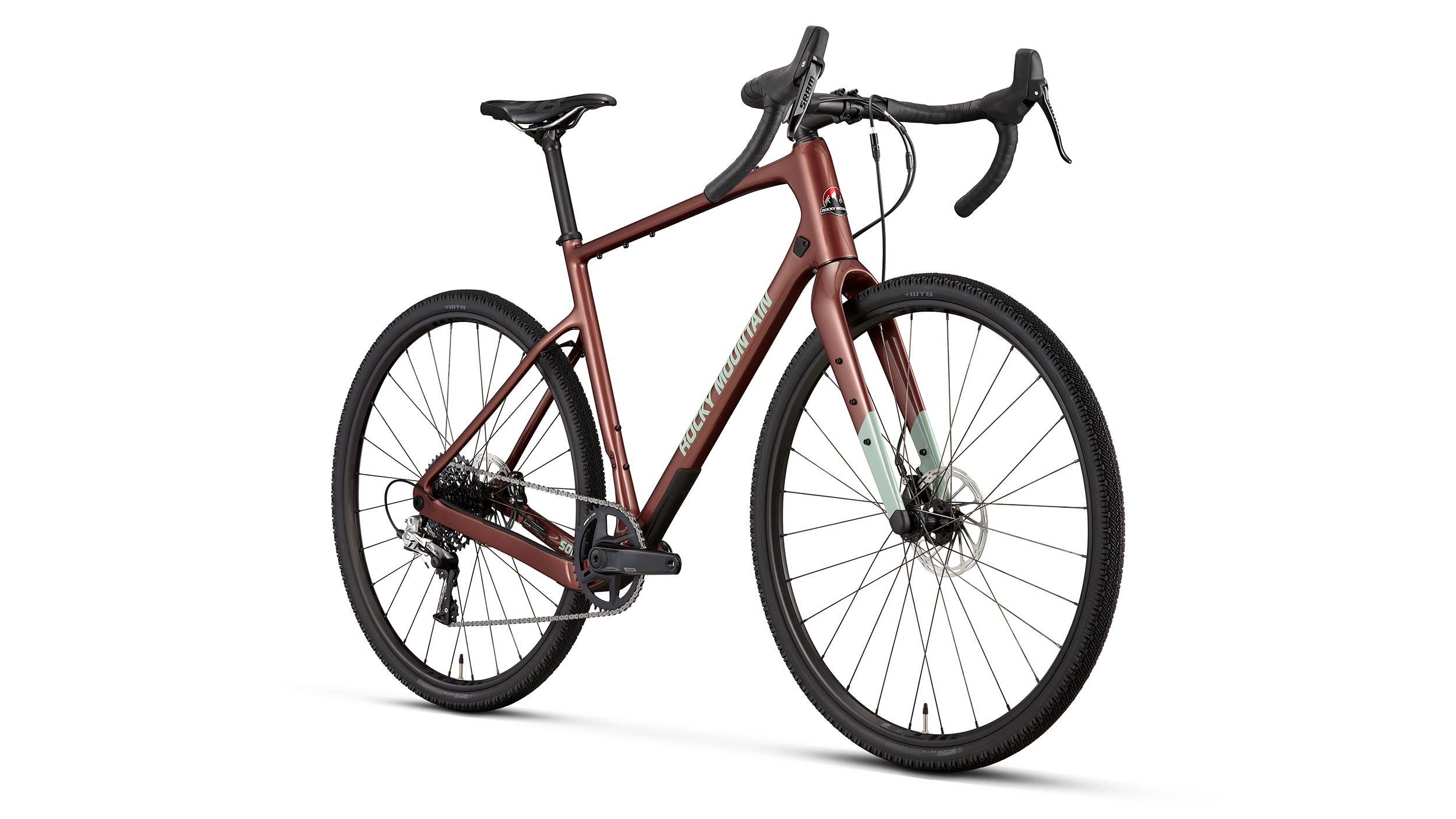

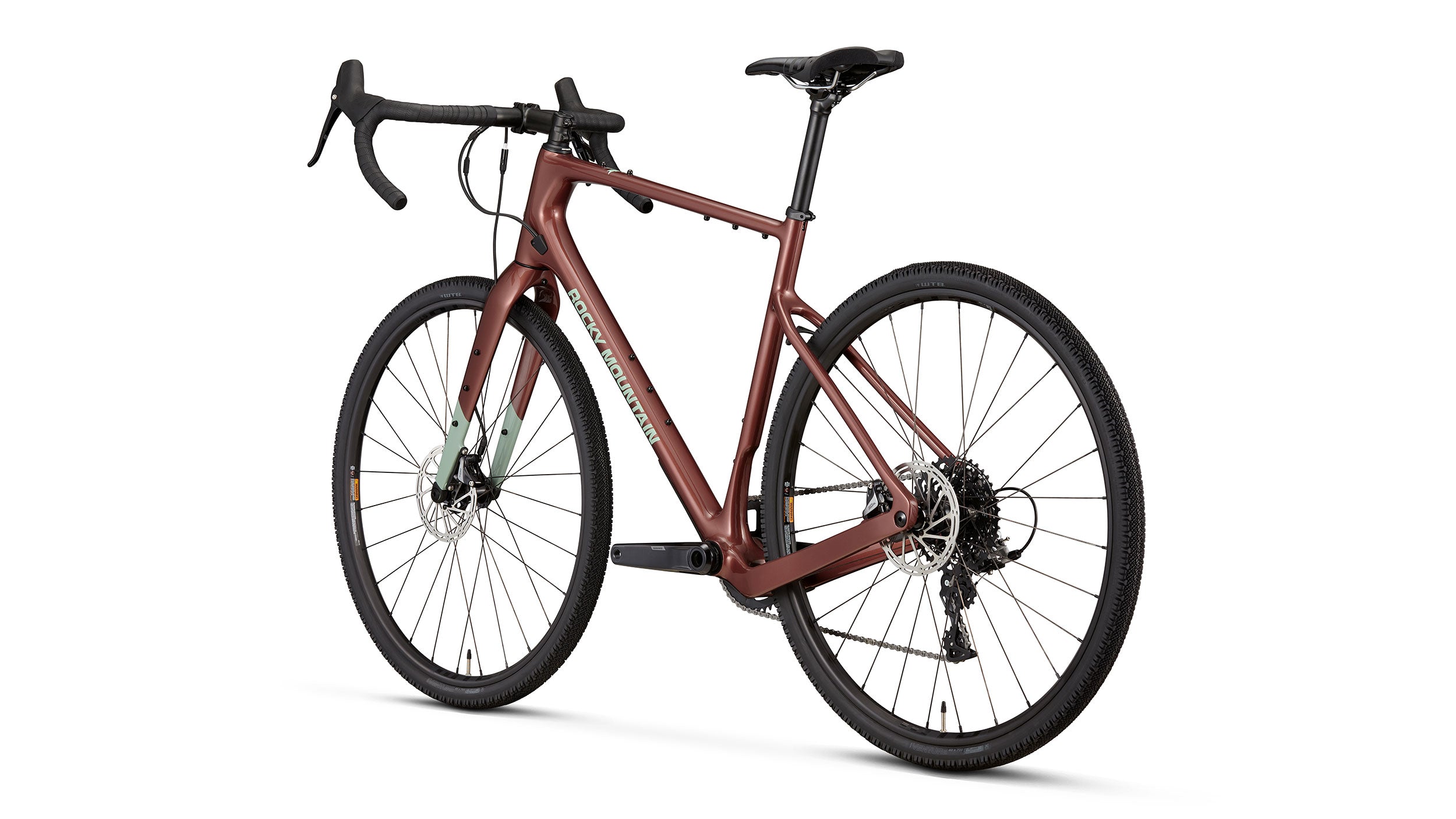

Solo Carbon 50
Overview
Intended use: Gravel
Rear travel:
Description
Designed to make every ride an adventure, the Solo is the perfect tool to escape, log some miles, and make multi-day rides a blast.
5-year warranty, transferable to second owners
We believe in our products, that's why we offer 5-year warranty on our frames, extended to second owners. Learn more
We're here for you
Got questions about our bikes? Our support team and dealers network are here for you.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
| xs | sm | md | lg | xl | |
|---|---|---|---|---|---|
| Top Tube Horizontal (mm) | 520 | 540 | 560 | 580 | 605 |
| Head Tube Angle (deg) | 70 | 70.5 | 71 | 71.5 | 71.5 |
| Head Tube Length (mm) | 100 | 130 | 150 | 185 | 210 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74 | 73.5 | 73 |
| Seat Tube Length (mm) | 414 | 452 | 490 | 528 | 566 |
| Rear Centre (mm) | 425 | 425 | 425 | 425 | 425 |
| Bottom Bracket Drop (mm) | 78 | 77 | 75 | 75 | 75 |
| Reach (mm) | 375.8 | 382.66 | 391.9 | 395.9 | 407.7 |
| Stack (mm) | 538.2 | 567.4 | 586.2 | 621.4 | 645.1 |
| Standover Height (mm) | 754 | 787 | 814 | 850 | 877 |
| Wheelbase (mm) | 1021 | 1034 | 1045 | 1056 | 1076 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 520 | 540 | 560 | 580 | 605 |
| Head Tube Angle (deg) | 70 | 70.5 | 71 | 71.5 | 71.5 |
| Head Tube Length (mm) | 100 | 130 | 150 | 185 | 210 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74 | 73.5 | 73 |
| Seat Tube Length (mm) | 414 | 452 | 490 | 528 | 566 |
| Rear Centre (mm) | 425 | 425 | 425 | 425 | 425 |
| Bottom Bracket Drop (mm) | 78 | 77 | 75 | 75 | 75 |
| Reach (mm) | 375.8 | 382.66 | 391.9 | 395.9 | 407.7 |
| Stack (mm) | 538.2 | 567.4 | 586.2 | 621.4 | 645.1 |
| Standover Height (mm) | 754 | 787 | 814 | 850 | 877 |
| Wheelbase (mm) | 1021 | 1034 | 1045 | 1056 | 1076 |
Standover height is measured 200 mm in front of the bottom bracket.
Sizing chart
These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.
Frame Size
Features and technologies
SMOOTHWALL™ Carbon
Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
Browse the lineup
Compatible parts
