Instinct Powerplay Alloy 30
Overview
Intended use: Trail
Rear travel: 140
Description

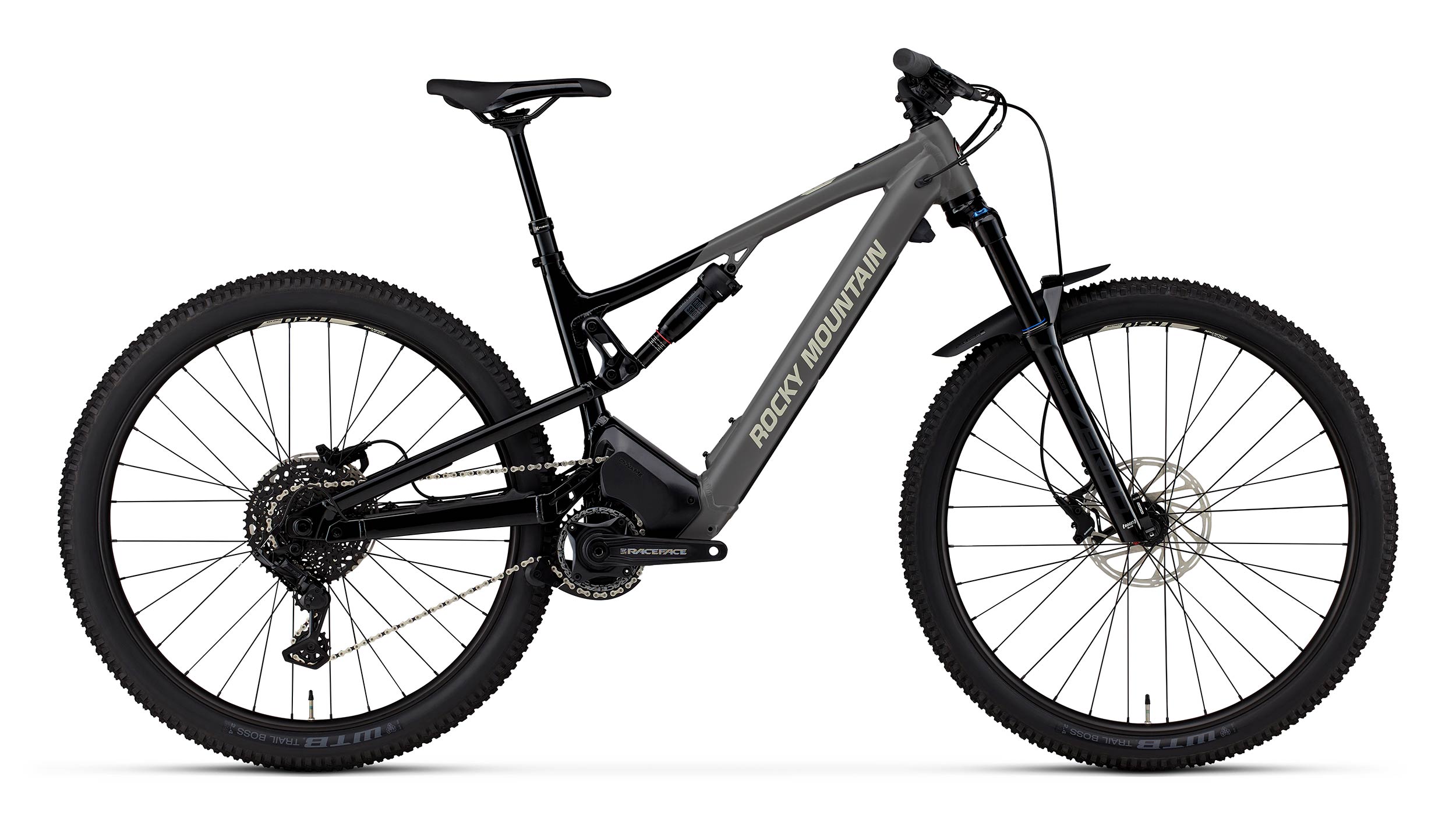

The Instinct Powerplay is built for exploration. Versatile geometry, dialed kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
Rider support
5 years warranty, transferable to second owners
We believe in our products, that's why we offer 5-year warranty on our frames, extended to second owners. Learn more
Buy online pick-up in store
It’s now possible for riders to purchase a bike directly through Bikes.com and collect it at an authorized Rocky Mountain dealer.
We're here for you
Got questions about our bikes? Our support team and dealers network are here for you.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 585 | 610 | 638 | 671 |
Head Tube Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 439 | 439 | 439 | 439 |
Bottom Bracket Drop (mm) | 42 | 42 | 42 | 42 |
Reach (mm) | 432 | 457 | 482 | 512 |
Stack (mm) | 624 | 624 | 632 | 646 |
Standover Height (mm) | 819 | 818 | 817 | 818 |
Wheelbase (mm) | 1201 | 1226 | 1256 | 1292 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 585 | 610 | 637 | 670 |
Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 | 64.4 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 | 76.4 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 438 | 438 | 438 | 438 |
Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
Reach (mm) | 435 | 460 | 485 | 515 |
Stack (mm) | 622 | 622 | 630 | 644 |
Standover Height (mm) | 820 | 820 | 820 | 820 |
Wheelbase (mm) | 1201 | 1226 | 1255 | 1292 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 584 | 609 | 636 | 670 |
Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 | 64.7 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 | 437 | 437 | 437 |
Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
Reach (mm) | 438 | 463 | 488 | 518 |
Stack (mm) | 620 | 620 | 628 | 642 |
Standover Height (mm) | 822 | 821 | 821 | 821 |
Wheelbase (mm) | 1200 | 1225 | 1254 | 1291 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 583 | 608 | 636 | 669 |
Head Tube Angle (deg) | 64.95 | 64.95 | 64.95 | 64.95 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.95 | 76.95 | 76.95 | 76.95 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 436 | 436 | 436 | 436 |
Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
Reach (mm) | 441 | 466 | 491 | 520 |
Stack (mm) | 618 | 618 | 626 | 639 |
Standover Height (mm) | 823 | 823 | 823 | 823 |
Wheelbase (mm) | 1199 | 1224 | 1253 | 1290 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 585 | 610 | 638 | 671 |
Head Tube Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 439 | 439 | 439 | 439 |
Bottom Bracket Drop (mm) | 42 | 42 | 42 | 42 |
Reach (mm) | 432 | 457 | 482 | 512 |
Stack (mm) | 624 | 624 | 632 | 646 |
Standover Height (mm) | 819 | 818 | 817 | 818 |
Wheelbase (mm) | 1201 | 1226 | 1256 | 1292 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 585 | 610 | 637 | 670 |
Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 | 64.4 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 | 76.4 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 438 | 438 | 438 | 438 |
Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
Reach (mm) | 435 | 460 | 485 | 515 |
Stack (mm) | 622 | 622 | 630 | 644 |
Standover Height (mm) | 820 | 820 | 820 | 820 |
Wheelbase (mm) | 1201 | 1226 | 1255 | 1292 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 584 | 609 | 636 | 670 |
Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 | 64.7 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 | 437 | 437 | 437 |
Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 |
Reach (mm) | 438 | 463 | 488 | 518 |
Stack (mm) | 620 | 620 | 628 | 642 |
Standover Height (mm) | 822 | 821 | 821 | 821 |
Wheelbase (mm) | 1200 | 1225 | 1254 | 1291 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 583 | 608 | 636 | 669 |
Head Tube Angle (deg) | 64.95 | 64.95 | 64.95 | 64.95 |
Head Tube Length (mm) | 100 | 100 | 110 | 125 |
Seat Tube Angle (deg) | 76.95 | 76.95 | 76.95 | 76.95 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 436 | 436 | 436 | 436 |
Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
Reach (mm) | 441 | 466 | 491 | 520 |
Stack (mm) | 618 | 618 | 626 | 639 |
Standover Height (mm) | 823 | 823 | 823 | 823 |
Wheelbase (mm) | 1199 | 1224 | 1253 | 1290 |
Standover height is measured 200 mm in front of the bottom bracket.
Browse the lineup
Compatible parts
FAQs
What are the Instinct Powerplay rear suspension specifications?
The 2022 Instinct Powerplay runs happily at approximately 30% sag. More information can be found on the technical manual.
What are the bottom bracket & drivetrain specifications?
Bottom Bracket Shell Measurement: 89.5mm x 41mm | Bottom Bracket: Press Fit BB92 | Chain Length: 124 links | Chain Ring Compatible: Raceface, Chainline 52mm | Max Chain Ring Size: 34t
What are the Instinct Powerplay seatpost dimensions?
Both the carbon and alloy 2022 Instinct Powerplay require a 30.9mm diameter seatpost/dropper post.
What are the Instinct Powerplay fork dimensions & specifications?
Fork Offset (Fox): 44mm | Fork Offset (Rock Shox): 42mm | Max Axle-to-Crown: 581mm
What are th Instinct Powerplay headset dimensions?
Carbon: ZS44 | ZS56, standard lower cup (2.9mm stack)
Alloy: ZS44 | ZS56, standard lower cup (2.9 stack)
What small parts kit do I need for my Instinct Powerplay?
Pivot Bearing Kit, Shock Bearing Eyelet Kit, Pivot Bolt Kit, Shock Bolt Kit, Instinct Forward Shock Mount Kit, RIDE-4 Kit, Rear Axle Kit, Lower Chain Guide 34T, Derailleur Hanger, Axle Flip Chip Kit, Bash Guard Kit, Chain Guide Kit, Upper Chain Guide
