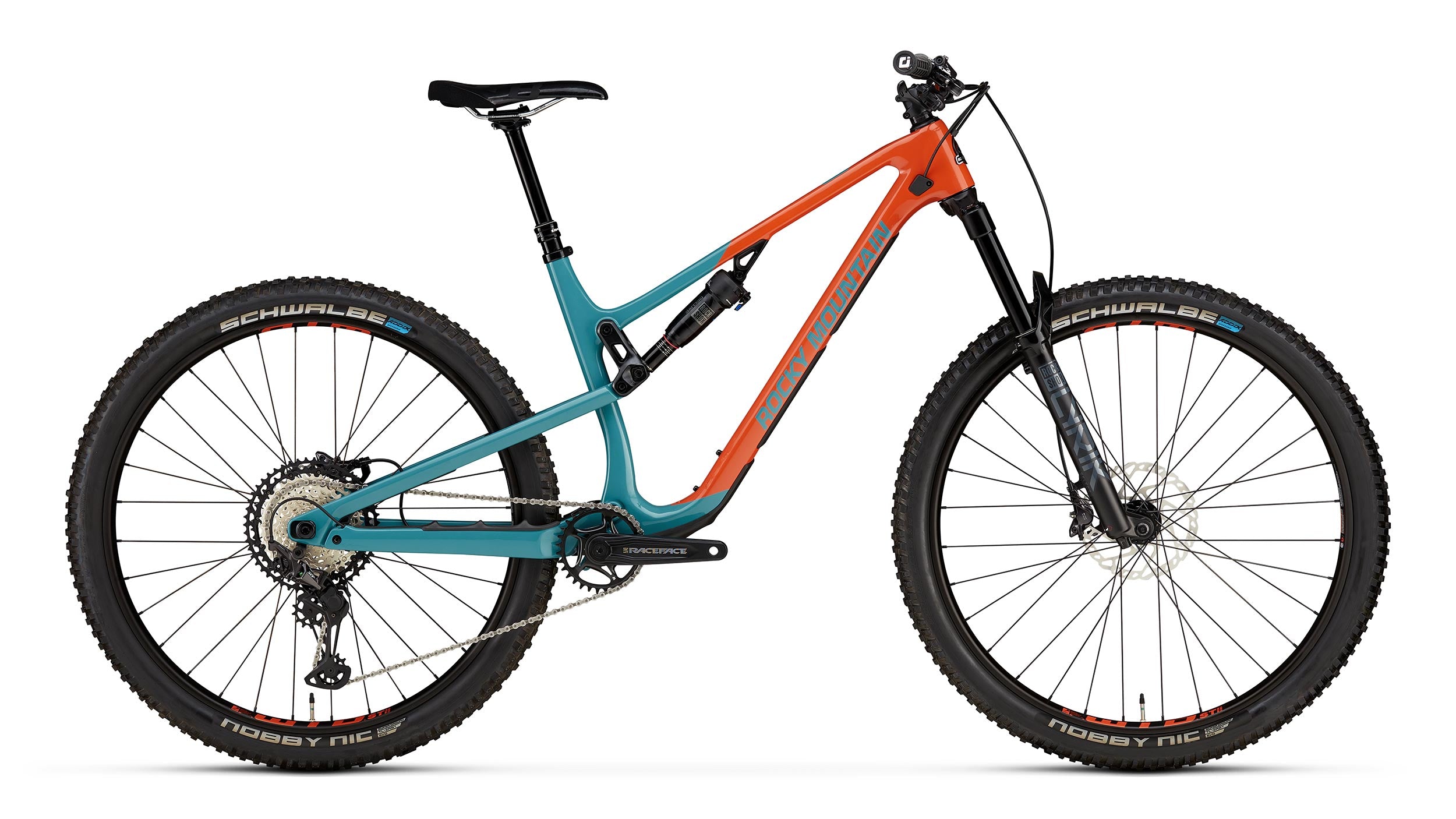

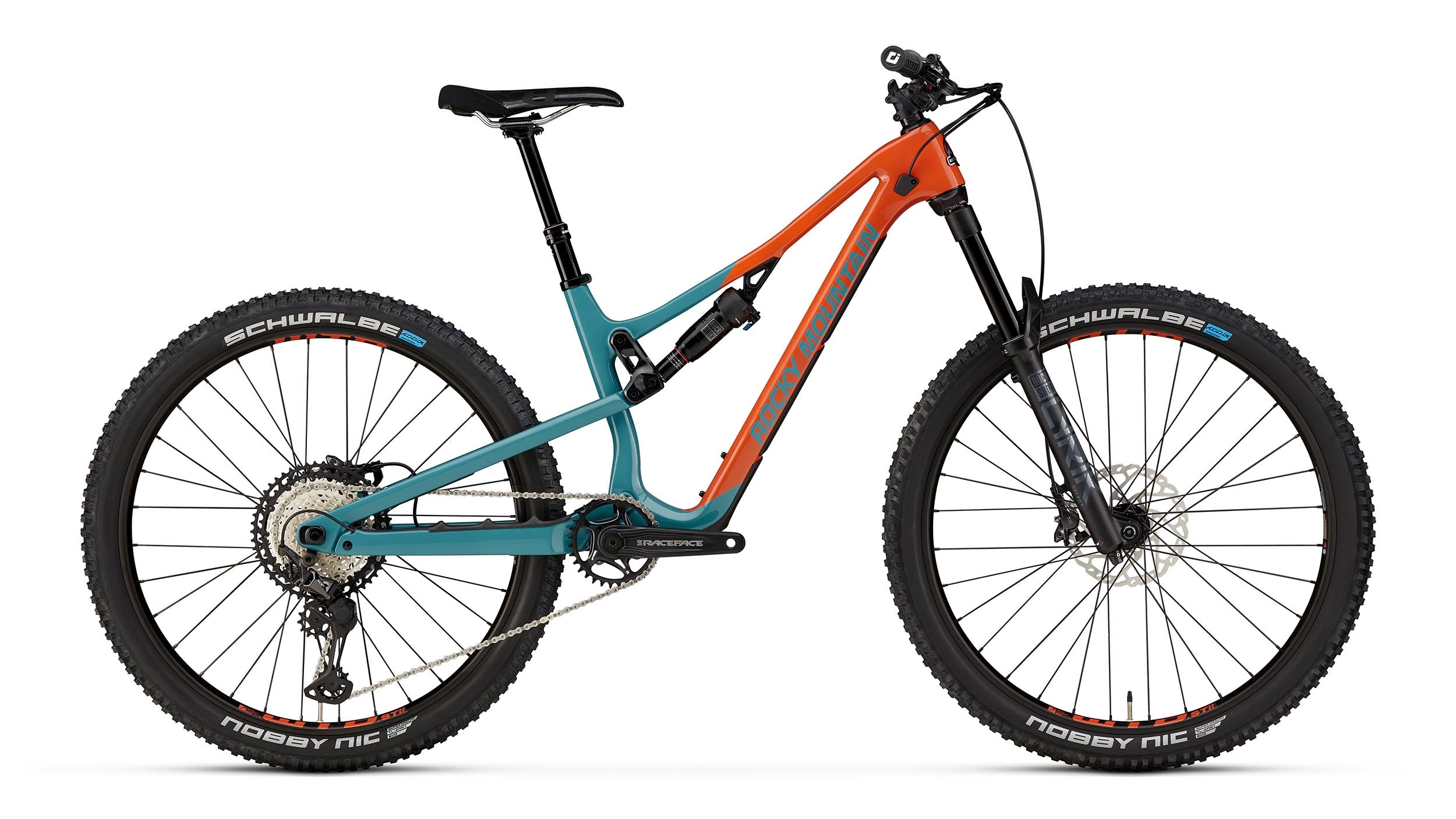

Instinct Carbon 50 Tour
Overview
Intended use: Trail
Rear travel: 140
Description
If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Instinct Carbon 50 Tour
Sale price€6.100,00
Regular price (/)
5-year warranty, transferable to second owners
We believe in our products, that's why we offer 5-year warranty on our frames, extended to second owners. Learn more
We're here for you
Got questions about our bikes? Our support team and dealers network are here for you.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
RIDE-9/4 POSITION
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
| Reach (mm) | 430 | 456 | 481 | 511 |
| Stack (mm) | 615 | 619 | 633 | 646 |
| Standover Height (mm) | 742 | 798 | 798 | 798 |
| Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 614 | 618 | 631 | 645 |
| Standover Height (mm) | 744 | 799 | 799 | 799 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 629 | 643 |
| Standover Height (mm) | 745 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 630 | 643 |
| Standover Height (mm) | 746 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
| Reach (mm) | 437 | 462 | 487 | 517 |
| Stack (mm) | 611 | 615 | 628 | 642 |
| Standover Height (mm) | 749 | 801 | 801 | 801 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 613 | 627 | 640 |
| Standover Height (mm) | 750 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 614 | 627 | 640 |
| Standover Height (mm) | 751 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
| Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 441 | 466 | 491 | 521 |
| Stack (mm) | 608 | 612 | 625 | 639 |
| Standover Height (mm) | 754 | 803 | 803 | 803 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
| Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
| Reach (mm) | 444 | 468 | 493 | 523 |
| Stack (mm) | 606 | 610 | 624 | 637 |
| Standover Height (mm) | 756 | 804 | 804 | 804 |
| Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
| Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
| Reach (mm) | 430 | 456 | 481 | 511 |
| Stack (mm) | 615 | 619 | 633 | 646 |
| Standover Height (mm) | 742 | 798 | 798 | 798 |
| Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
| Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
| Reach (mm) | 433 | 458 | 483 | 513 |
| Stack (mm) | 614 | 618 | 631 | 645 |
| Standover Height (mm) | 744 | 799 | 799 | 799 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 629 | 643 |
| Standover Height (mm) | 745 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 | 515 |
| Stack (mm) | 612 | 616 | 630 | 643 |
| Standover Height (mm) | 746 | 800 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
| Reach (mm) | 437 | 462 | 487 | 517 |
| Stack (mm) | 611 | 615 | 628 | 642 |
| Standover Height (mm) | 749 | 801 | 801 | 801 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 613 | 627 | 640 |
| Standover Height (mm) | 750 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 439 | 464 | 489 | 519 |
| Stack (mm) | 609 | 614 | 627 | 640 |
| Standover Height (mm) | 751 | 802 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
| Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
| Reach (mm) | 441 | 466 | 491 | 521 |
| Stack (mm) | 608 | 612 | 625 | 639 |
| Standover Height (mm) | 754 | 803 | 803 | 803 |
| Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
| Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
| Head Tube Length (mm) | 90 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
| Reach (mm) | 444 | 468 | 493 | 523 |
| Stack (mm) | 606 | 610 | 624 | 637 |
| Standover Height (mm) | 756 | 804 | 804 | 804 |
| Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 551 | 578 |
| Head Tube Angle (deg) | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.3 | 76.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 27 | 27 |
| Reach (mm) | 408 | 433 |
| Stack (mm) | 585 | 594 |
| Standover Height (mm) | 754 | 754 |
| Wheelbase (mm) | 1134 | 1164 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 578 |
| Head Tube Angle (deg) | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 24 | 24 |
| Reach (mm) | 410 | 435 |
| Stack (mm) | 584 | 593 |
| Standover Height (mm) | 756 | 756 |
| Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 22 | 22 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 21 | 21 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 65.9 | 65.9 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.9 | 76.9 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 19 | 19 |
| Reach (mm) | 414 | 439 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 758 | 758 |
| Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 549 | 576 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 579 | 588 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 548 | 576 |
| Head Tube Angle (deg) | 66.3 | 66.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.3 | 77.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 13 | 13 |
| Reach (mm) | 419 | 444 |
| Stack (mm) | 577 | 586 |
| Standover Height (mm) | 760 | 760 |
| Wheelbase (mm) | 1132 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| xs | sm | |
|---|---|---|
| Top Tube Horizontal (mm) | 548 | 575 |
| Head Tube Angle (deg) | 66.6 | 66.6 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.6 | 77.6 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 425 - 436 | 425 - 436 |
| Bottom Bracket Drop (mm) | 11 | 11 |
| Reach (mm) | 421 | 446 |
| Stack (mm) | 576 | 584 |
| Standover Height (mm) | 761 | 761 |
| Wheelbase (mm) | 1132 | 1161 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 551 | 578 |
| Head Tube Angle (deg) | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.3 | 76.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 27 | 27 |
| Reach (mm) | 408 | 433 |
| Stack (mm) | 585 | 594 |
| Standover Height (mm) | 754 | 754 |
| Wheelbase (mm) | 1134 | 1164 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 550 | 578 |
| Head Tube Angle (deg) | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.5 | 76.5 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 428 - 439 | 428 - 439 |
| Bottom Bracket Drop (mm) | 24 | 24 |
| Reach (mm) | 410 | 435 |
| Stack (mm) | 584 | 593 |
| Standover Height (mm) | 756 | 756 |
| Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 22 | 22 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 550 | 577 |
| Head Tube Angle (deg) | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.7 | 76.7 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 21 | 21 |
| Reach (mm) | 412 | 437 |
| Stack (mm) | 582 | 591 |
| Standover Height (mm) | 757 | 757 |
| Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 65.9 | 65.9 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 76.9 | 76.9 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 |
| Bottom Bracket Drop (mm) | 19 | 19 |
| Reach (mm) | 414 | 439 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 758 | 758 |
| Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 549 | 577 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 581 | 589 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 549 | 576 |
| Head Tube Angle (deg) | 66.1 | 66.1 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.1 | 77.1 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 417 | 441 |
| Stack (mm) | 579 | 588 |
| Standover Height (mm) | 759 | 759 |
| Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 548 | 576 |
| Head Tube Angle (deg) | 66.3 | 66.3 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.3 | 77.3 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 426 - 437 | 426 - 437 |
| Bottom Bracket Drop (mm) | 13 | 13 |
| Reach (mm) | 419 | 444 |
| Stack (mm) | 577 | 586 |
| Standover Height (mm) | 760 | 760 |
| Wheelbase (mm) | 1132 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 548 | 575 |
| Head Tube Angle (deg) | 66.6 | 66.6 |
| Head Tube Length (mm) | 90 | 100 |
| Seat Tube Angle (deg) | 77.6 | 77.6 |
| Seat Tube Length (mm) | 355 | 380 |
| Rear Centre (mm) | 425 - 436 | 425 - 436 |
| Bottom Bracket Drop (mm) | 11 | 11 |
| Reach (mm) | 421 | 446 |
| Stack (mm) | 576 | 584 |
| Standover Height (mm) | 761 | 761 |
| Wheelbase (mm) | 1132 | 1161 |
Standover height is measured 200 mm in front of the bottom bracket.
Features and technologies
RIDE-9™ adjustment system
The RIDE-9 adjustment system allows riders to quickly fine-tune their geometry and suspension with a pair of Allen keys. Nine configurations are possible thanks to two interlocking chips.
SMOOTHWALL™ Carbon
Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
Size Specific Tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
Two-position axle
The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.
Browse the lineup
New
Instinct Carbon 90Fox 36 Grip 2 Factory, Fox Float X Factory, Shimano XTR
Sale price€12.000,00
New
Instinct Carbon 70Fox 36 Performance Elite, Fox Float X Performance Elite, Shimano XT
Sale price€7.900,00
New
Instinct Carbon 50RockShox Lyrik Select RC, Fox Float X Performance, Shimano XT
Sale price€6.000,00
New
Instinct C FramesetFox Float X Factory
Sale price€4.400,00
New
Instinct Alloy 50Fox 36 GRIP Performance, Fox Float X Performance, Shimano XT
Sale price€4.600,00
Compatible parts
688 BEARING EYELET TOOL KIT
Sale price€55,24
2021 Hanger kit
Sale price€42,04
Pivot Bearing Kit ALT/INST 2021
Sale price€42,04
Axle Kit Boost M12X1.5
Sale price€22,38
Shock Bolt Kit Alt/Inst 2021
Sale price€20,50
Canadian Shield Kit 29''
Sale price€9,27
Chain Guide Kit ALT/INST 2021
Sale price€65,44
Pivot Bolt Kit Alt/Inst 2021
Sale price€177,88
Protection Alt/Inst 2021 29''
Sale price€70,13
UDH Stopper Kit
Sale price€13,95
