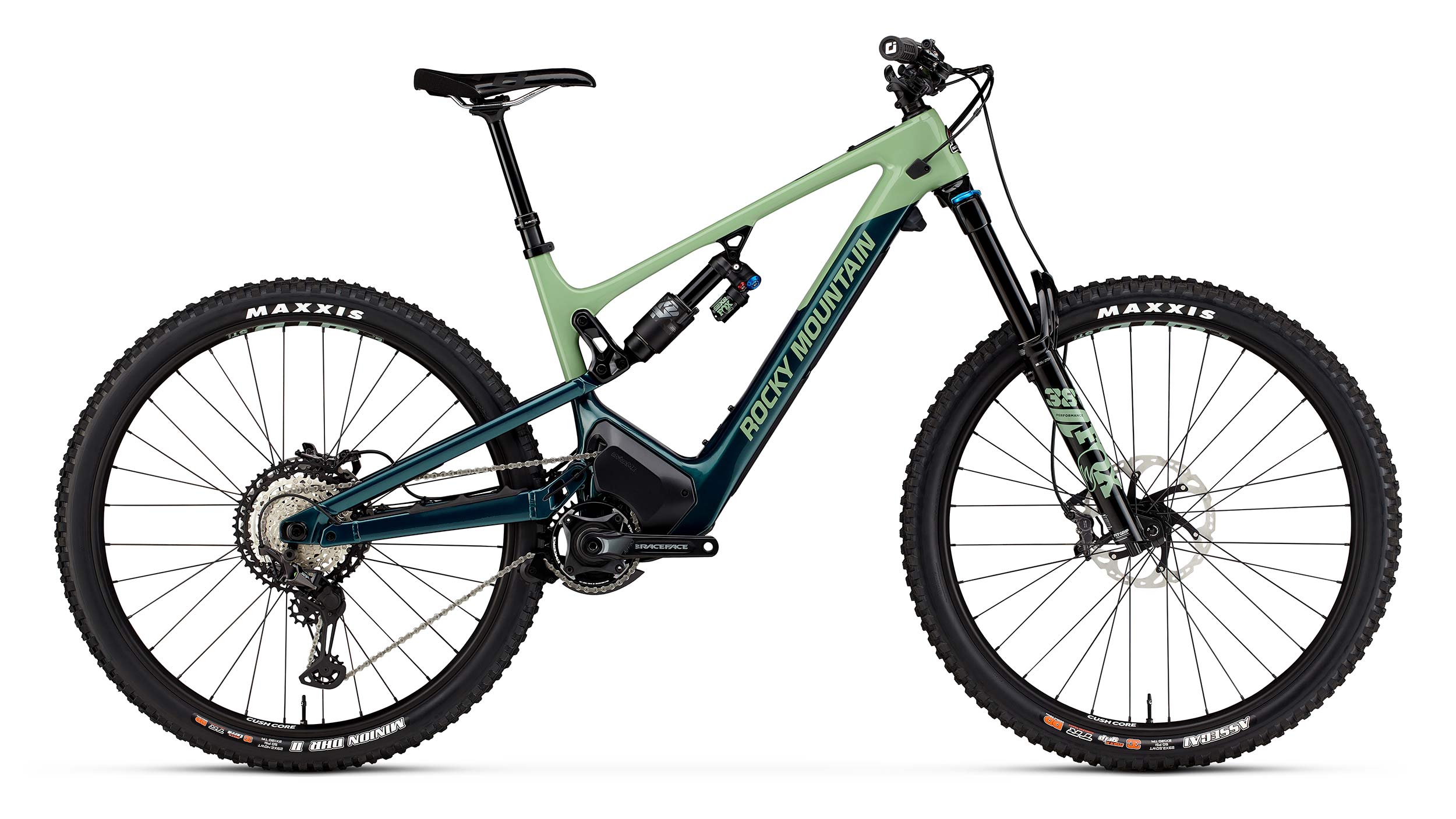

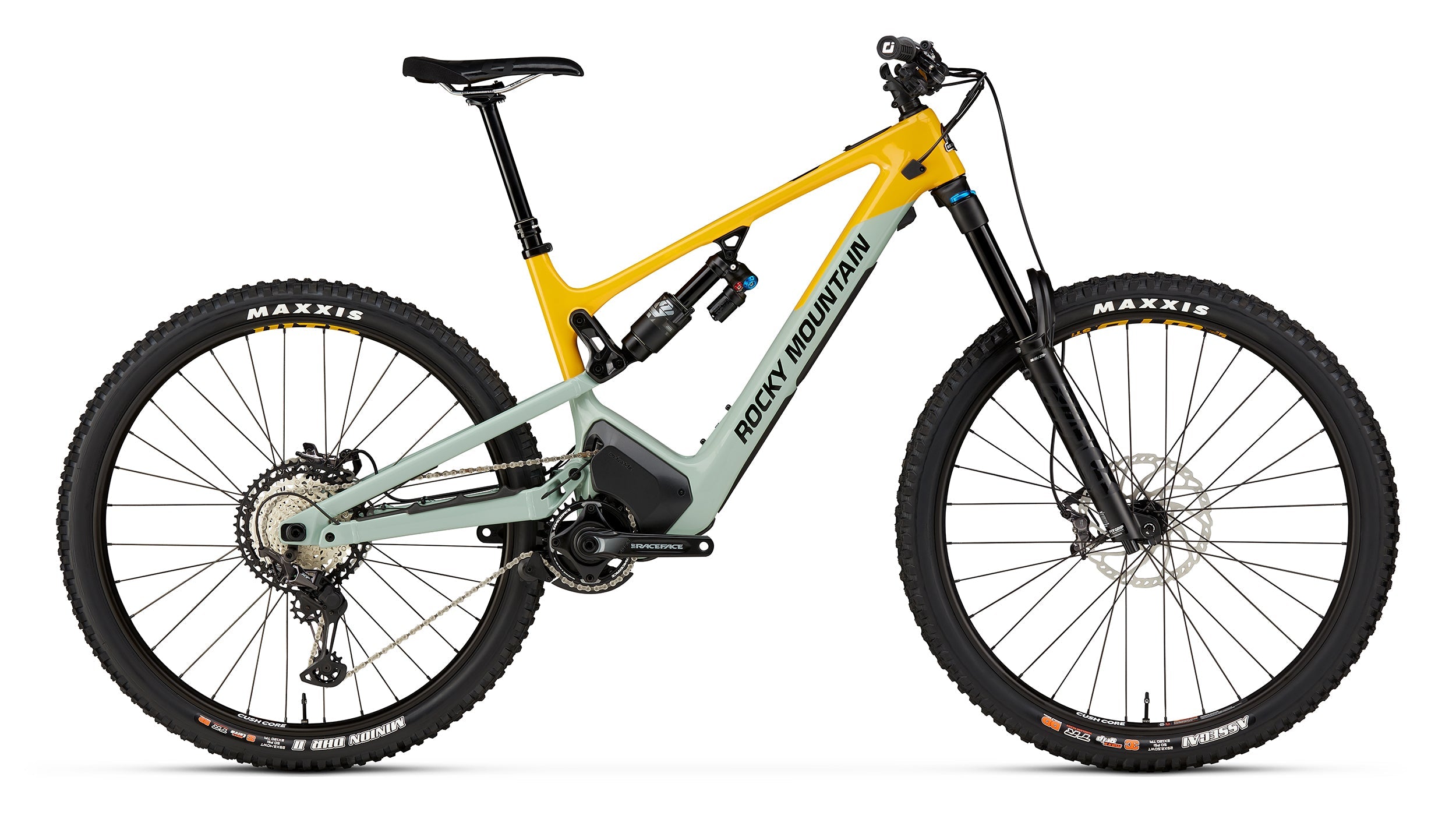

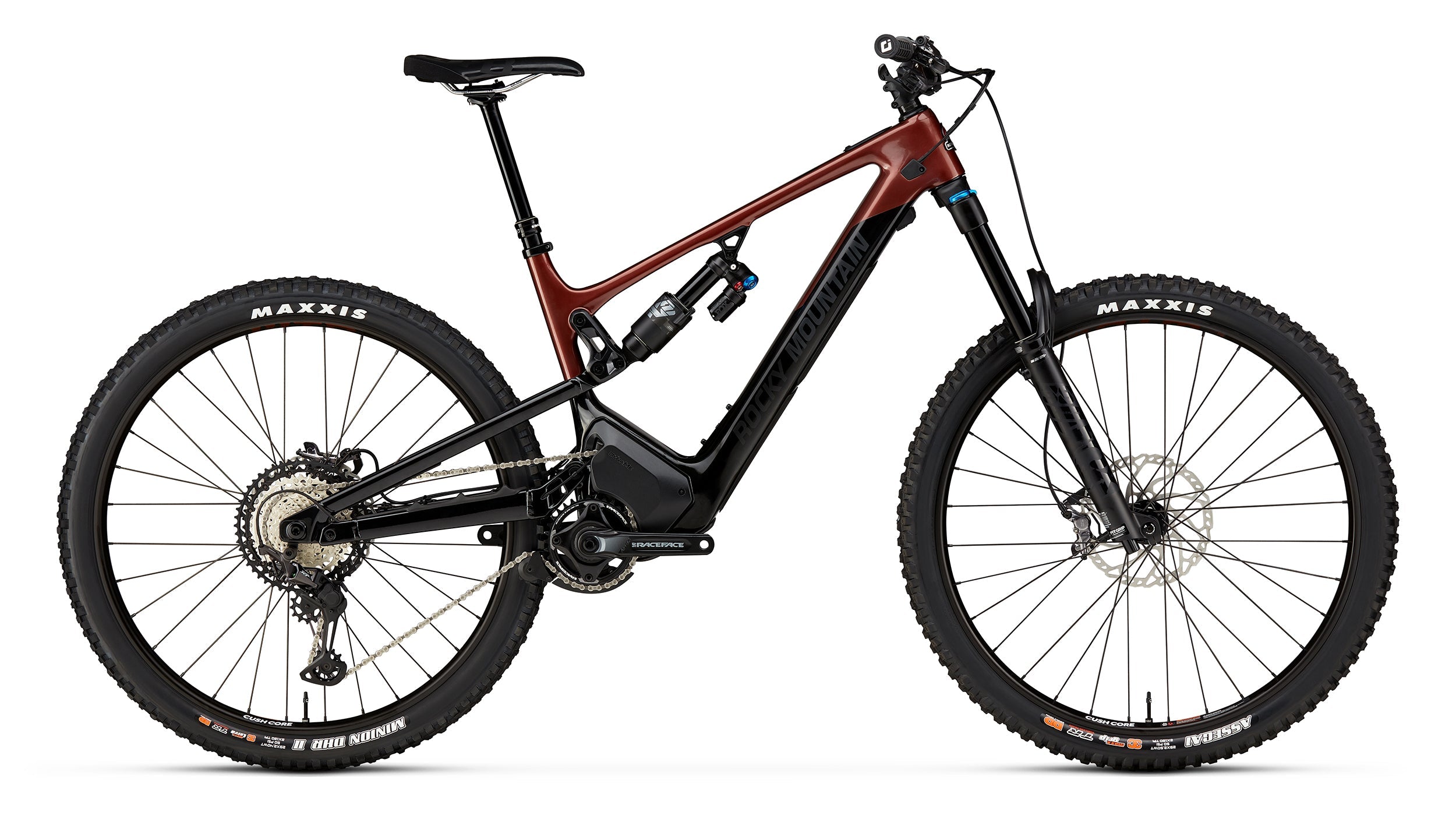

Altitude Powerplay Carbon 70

Altitude Powerplay Carbon 70

Altitude Powerplay Carbon 70

Rated 4.5 out of 5

Based on 2 reviews

Overview

Intended use: Enduro

Rear travel: 160

Description

Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking. The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability.

Wheel Size:

29

29

Size:

SM

SM MD LG XL

Color:

Black Dog / Another Brick in the Wall /

Variant

Register your Altitude Powerplay Carbon 70

Specifications

Geometry

Wheel size

RIDE-9/4 POSITION

Learn more

RIDE-9/4 POSITION

Learn more

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	20	20	20	20
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	17	17	17	17
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	13	13	13	13
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	9	9	9	9
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	20	20	20	20
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	17	17	17	17
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	13	13	13	13
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	9	9	9	9
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	34	34	34	34
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	31	31	31	31
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	27	27	27	27
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	24	24	24	24
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	673
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.5	75.5	75.5	75.5
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	439	439	439	439
Bottom Bracket Drop (mm)	34	34	34	34
Reach (mm)	425	450	475	508
Stack (mm)	629	628	638	652
Standover Height (mm)	834	832	831	831
Wheelbase (mm)	1210	1237	1264	1301

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	587	612	639	672
Head Tube Angle (deg)	63.7	63.7	63.7	63.7
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	75.7	75.7	75.7	75.7
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	438	438	438	438
Bottom Bracket Drop (mm)	31	31	31	31
Reach (mm)	427	452	477	507
Stack (mm)	627	627	636	650
Standover Height (mm)	835	833	833	833
Wheelbase (mm)	1209	1234	1263	1300

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	586	611	638	671
Head Tube Angle (deg)	64	64	64	64
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76	76	76	76
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	437	437	437	437
Bottom Bracket Drop (mm)	27	27	27	27
Reach (mm)	430	455	480	510
Stack (mm)	625	625	634	647
Standover Height (mm)	836	835	835	835
Wheelbase (mm)	1208	1233	1262	1299

Standover height is measured 200 mm in front of the bottom bracket.

View from drive side

Top Tube Horizontal (mm)	585	610	637	671
Head Tube Angle (deg)	64.3	64.3	64.3	64.3
Head Tube Length (mm)	100	100	110	125
Seat Tube Angle (deg)	76.3	76.3	76.3	76.3
Seat Tube Length (mm)	380	420	445	480
Rear Centre (mm)	436	436	436	436
Bottom Bracket Drop (mm)	24	24	24	24
Reach (mm)	433	458	483	513
Stack (mm)	623	623	632	645
Standover Height (mm)	838	836	836	836
Wheelbase (mm)	1207	1232	1261	1298

Standover height is measured 200 mm in front of the bottom bracket.

Sizing chart

These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.

Frame Size

157.5 - 170 cm / 5’2” - 5’7”

167.5 - 177.5 cm / 5’6” - 5’10”

175 - 188 cm / 5’9” - 6’2”

185.5 - 198 cm / 6’1” - 6’6”

Owners resources

Features and technologies

Dyname 4.0

Dyname™ 4.0

Dyname™ 4.0, only available on Powerplay, is incredibly powerful and is truly a leader among e-bike motors. We designed the power curve within the software to deliver the 108Nm smoothly, allowing you as the rider to soft pedal around tight switchbacks or drop the hammer through a chunky, punchy, portion of trail.

Size Specific Tune

Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.

Two-position axle

The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.

RIDE-4™ adjustment system

The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.

SMOOTHWALL™ Carbon

Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.

Browse the lineup

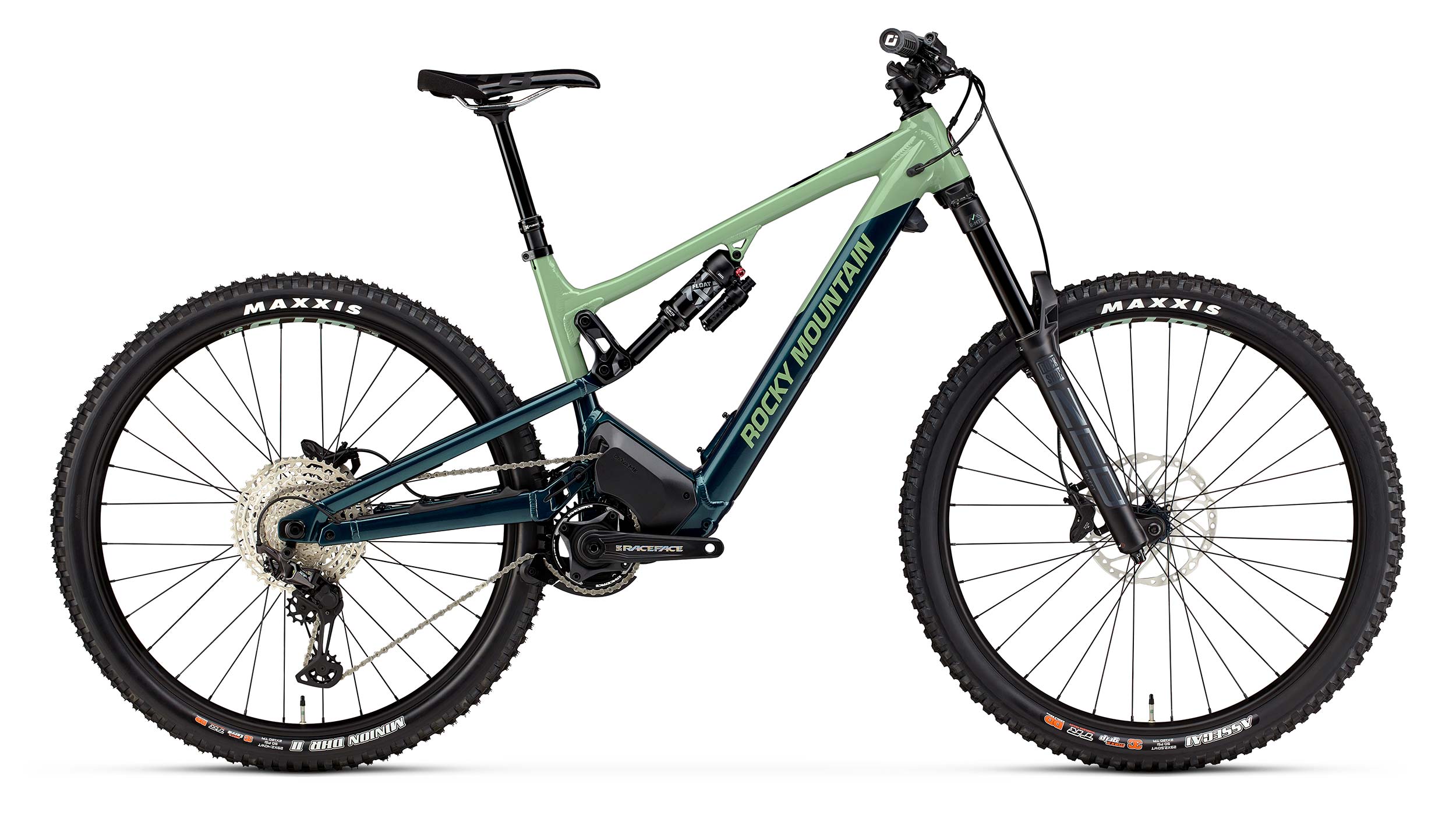

Altitude Powerplay Alloy 50

Altitude Powerplay Alloy 50RockShox Zeb Select RC, Fox Float X Performance, Shimano XT

€7.500,00

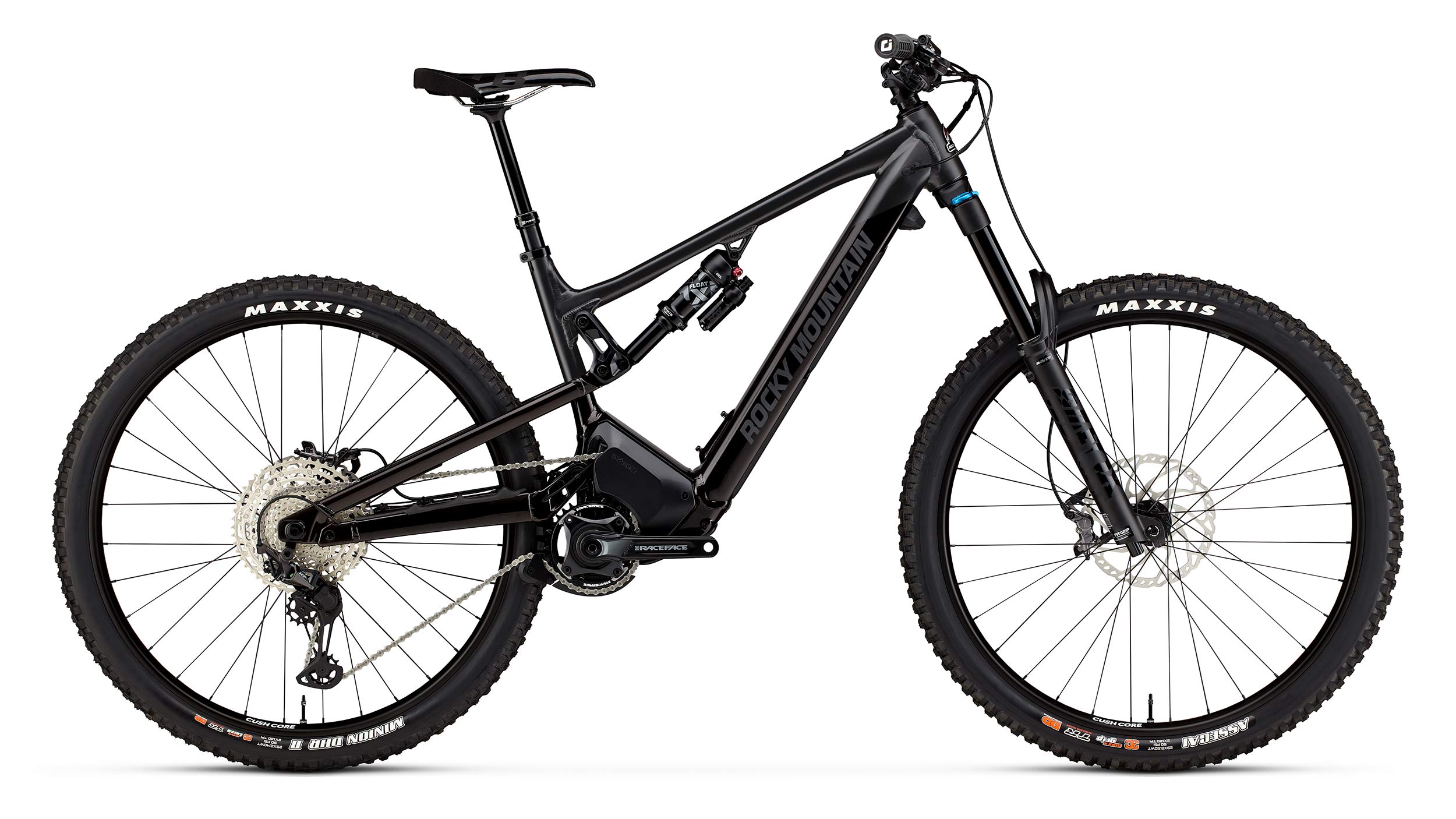

Altitude Powerplay Alloy 70

Altitude Powerplay Alloy 70Fox 38 Float EVOL GRIP Performance Series, Fox Float X Performance, Shimano XT

€8.200,00

Altitude Powerplay Carbon 70

Altitude Powerplay Carbon 70Fox 38 Float EVOL GRIP Performance Series, Fox Float X2 Performance, Shimano XT

€9.800,00

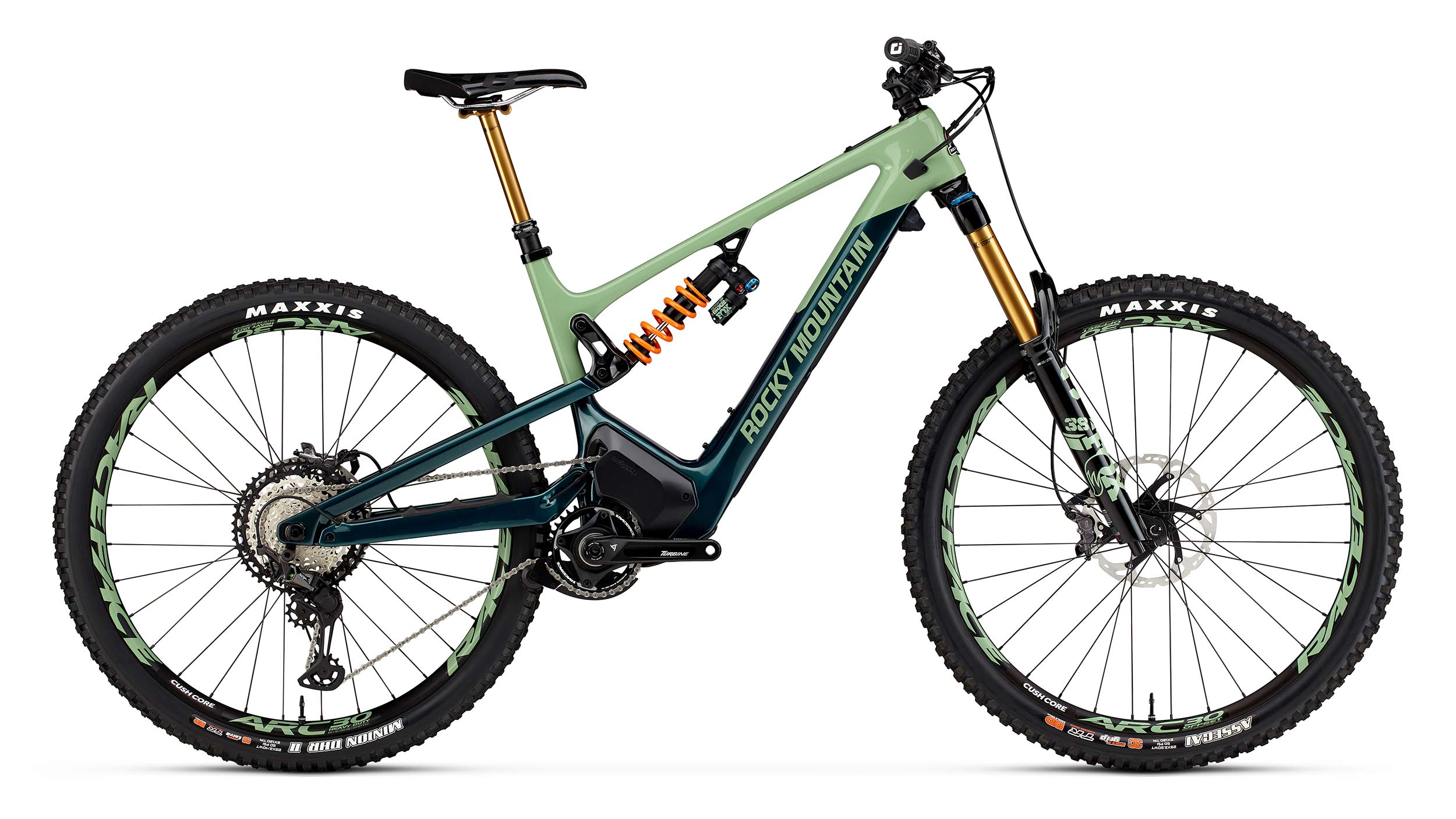

Altitude Powerplay Carbon 90 Rally

Altitude Powerplay Carbon 90 Rally

€12.000,00

Compatible parts

Bearing Eyelet Tool Kit

Bearing Eyelet Tool Kit

€52,24

Hanger Kit 12x1.0

Hanger Kit 12x1.0

€43,83

Drive Side Cover Kit

Drive Side Cover Kit

€32,32

Bearing Kit 4

€33,65

UDH Stopper Kit

UDH Stopper Kit

€13,19

Upper Chain Guide Kit PP

Upper Chain Guide Kit PP

€13,28

Charge Port Rubber Door Powerplay

Charge Port Rubber Door Powerplay

€6,64

Axle Flip Chip Kit 1

Axle Flip Chip Kit 1

€42,41

Rear Axle 4

€34,09

Head Tube Panel Kit 2

Head Tube Panel Kit 2

€21,96

average rating 4.5 out of 5

Based on 2 reviews

5 Stars

1 Review
4 Stars

1 Review
3 Stars

0 Reviews
2 Stars

0 Reviews
1 Star

0 Reviews

100% of reviewers would recommend this product to a friend

Customer photos and videos

Open user-uploaded photo and review in a modal

Open user-uploaded photo and review in a modal

Sort by

Review posted

Reviewed by JCG

Verified Reviewer

Rated 4 out of 5

Great Bike! Motor can be finicky at times

Had it for nearly a year now. Upgraded to factory fork and coil dhx2 on rear, atlas pedals, and various others. Also just swapped the 29” rear wheel using MX mount and trying out the mullet setup. Getting some faster splits on the mullet but not feeling too different other than a bit lower to the ground by like 5mm. All in all a great bike and I woulda given it 5 stars if the motor just wasn’t a touch finicky at times. Every time it just needed turned off and then turned back on but enough to give you a bit of a ‘gulp’ out on the trail. Tech help via the web is outstanding.

Loading...

I recommend this product

Open Image by JCG in a modal

Was this helpful?

Review posted

Reviewed by coste

Verified Reviewer

Rated 5 out of 5

incredible bike

After 6 months of uses, I can told this bike 100% fit me, aggressivity, powerful, light in the air. I will not change for another E-bike for ever. Love it

Loading...

I recommend this product

Open Image by coste in a modal

Was this helpful?
