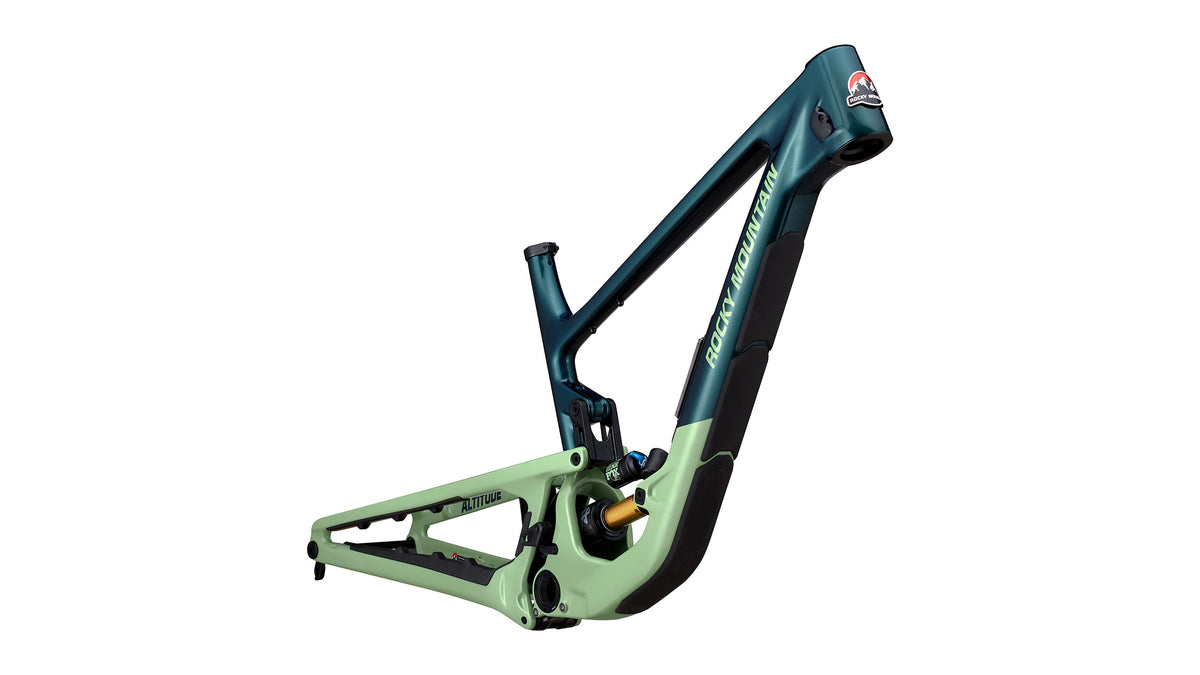

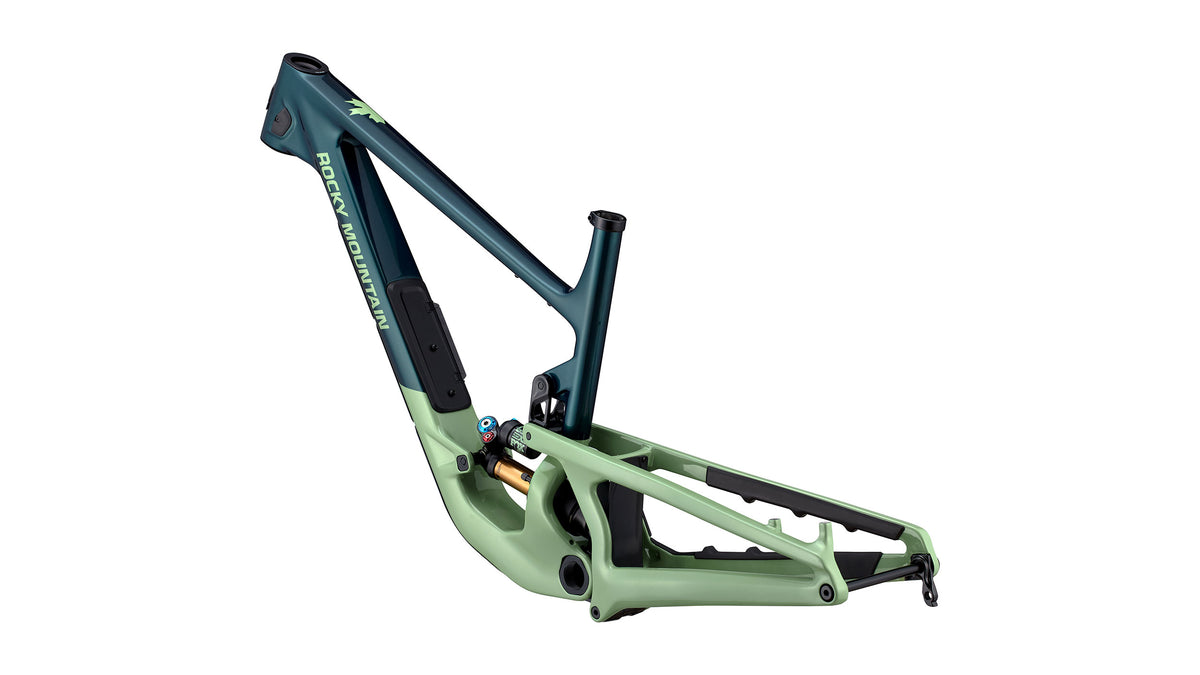

Altitude C Frameset
Overview
Intended use: Enduro
Rear travel: 160
Description
![Altitude C Frameset](http://bikes.com/cdn/shop/files/Web_MY24__F0054-GREENGREEN_Altitude_Frameset_C1_29_Profile_1.jpg?v=1709920603&width=2500)
5-year warranty, transferable to second owners
We believe in our products, that's why we offer 5-year warranty on our frames, extended to second owners. Learn more
We're here for you
Got questions about our bikes? Our support team and dealers network are here for you.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
RIDE-9/4 POSITION
RIDE-9/4 POSITION
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos1_43546780-562e-47c7-914e-fde44571da2c_300x.png?v=1712613147)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 62.9 | 62.9 | 62.9 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77 | 77 | 77 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 29 | 29 | 29 |
Reach (mm) | 450 | 475 | 505 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 791 | 797 | 808 |
Wheelbase (mm) | 1243 | 1282 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos2_a925c9cf-1223-4439-b364-b326bd8c9e77_300x.png?v=1712613168)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.2 | 63.2 | 63.2 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.2 | 77.2 | 77.2 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 25 | 25 | 25 |
Reach (mm) | 453 | 478 | 508 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 793 | 801 | 812 |
Wheelbase (mm) | 1242 | 1282 | 1318 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos3_24fac9ed-2987-493d-b0c9-8bb87bcc9bcd_300x.png?v=1712613223)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.4 | 63.4 | 63.4 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.4 | 77.4 | 77.4 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 22 | 22 | 22 |
Reach (mm) | 455 | 480 | 510 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 796 | 803 | 814 |
Wheelbase (mm) | 1242 | 1281 | 1318 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos4_cd1a4eb4-50d2-41d2-9424-796f03289979_300x.png?v=1712613245)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.7 | 63.7 | 63.7 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.7 | 77.7 | 77.7 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 18 | 18 | 18 |
Reach (mm) | 458 | 483 | 513 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 798 | 806 | 817 |
Wheelbase (mm) | 1241 | 1281 | 1317 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos1_43546780-562e-47c7-914e-fde44571da2c_300x.png?v=1712613147)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 62.9 | 62.9 | 62.9 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77 | 77 | 77 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 29 | 29 | 29 |
Reach (mm) | 450 | 475 | 505 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 791 | 797 | 808 |
Wheelbase (mm) | 1243 | 1282 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos2_a925c9cf-1223-4439-b364-b326bd8c9e77_300x.png?v=1712613168)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.2 | 63.2 | 63.2 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.2 | 77.2 | 77.2 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 25 | 25 | 25 |
Reach (mm) | 453 | 478 | 508 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 793 | 801 | 812 |
Wheelbase (mm) | 1242 | 1282 | 1318 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos3_24fac9ed-2987-493d-b0c9-8bb87bcc9bcd_300x.png?v=1712613223)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.4 | 63.4 | 63.4 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.4 | 77.4 | 77.4 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 22 | 22 | 22 |
Reach (mm) | 455 | 480 | 510 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 796 | 803 | 814 |
Wheelbase (mm) | 1242 | 1281 | 1318 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos4_cd1a4eb4-50d2-41d2-9424-796f03289979_300x.png?v=1712613245)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.7 | 63.7 | 63.7 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.7 | 77.7 | 77.7 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 18 | 18 | 18 |
Reach (mm) | 458 | 483 | 513 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 798 | 806 | 817 |
Wheelbase (mm) | 1241 | 1281 | 1317 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos1_43546780-562e-47c7-914e-fde44571da2c_300x.png?v=1712613147)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63 | 63 | 63 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77 | 77 | 77 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 38 | 38 | 38 |
Reach (mm) | 450 | 475 | 505 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 792 | 798 | 809 |
Wheelbase (mm) | 1244 | 1283 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos2_a925c9cf-1223-4439-b364-b326bd8c9e77_300x.png?v=1712613168)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.3 | 63.3 | 63.3 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.3 | 77.3 | 77.3 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 34 | 34 | 34 |
Reach (mm) | 453 | 478 | 508 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 794 | 801 | 812 |
Wheelbase (mm) | 1243 | 1283 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos3_24fac9ed-2987-493d-b0c9-8bb87bcc9bcd_300x.png?v=1712613223)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.5 | 77.5 | 77.5 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 31 | 31 | 31 |
Reach (mm) | 455 | 480 | 510 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 796 | 803 | 814 |
Wheelbase (mm) | 1243 | 1282 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos4_cd1a4eb4-50d2-41d2-9424-796f03289979_300x.png?v=1712613245)
md | lg | xl | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.8 | 63.8 | 63.8 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.8 | 77.8 | 77.8 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 27 | 27 | 27 |
Reach (mm) | 458 | 483 | 513 |
Stack (mm) | 630 | 640 | 653 |
Standover Height (mm) | 798 | 806 | 817 |
Wheelbase (mm) | 1242 | 1282 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos1_43546780-562e-47c7-914e-fde44571da2c_300x.png?v=1712613147)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63 | 63 | 63 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77 | 77 | 77 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 38 | 38 | 38 |
Reach (mm) | 450 | 475 | 505 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 792 | 798 | 809 |
Wheelbase (mm) | 1244 | 1283 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos2_a925c9cf-1223-4439-b364-b326bd8c9e77_300x.png?v=1712613168)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.3 | 63.3 | 63.3 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.3 | 77.3 | 77.3 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 34 | 34 | 34 |
Reach (mm) | 453 | 478 | 508 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 794 | 801 | 812 |
Wheelbase (mm) | 1243 | 1283 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos3_24fac9ed-2987-493d-b0c9-8bb87bcc9bcd_300x.png?v=1712613223)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.5 | 77.5 | 77.5 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 31 | 31 | 31 |
Reach (mm) | 455 | 480 | 510 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 796 | 803 | 814 |
Wheelbase (mm) | 1243 | 1282 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos4_cd1a4eb4-50d2-41d2-9424-796f03289979_300x.png?v=1712613245)
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 63.8 | 63.8 | 63.8 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77.8 | 77.8 | 77.8 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 27 | 27 | 27 |
Reach (mm) | 458 | 483 | 513 |
Stack (mm) | 630 | 640 | 653 |
Standover Height (mm) | 798 | 806 | 817 |
Wheelbase (mm) | 1242 | 1282 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos1_43546780-562e-47c7-914e-fde44571da2c_300x.png?v=1712613147)
sm | |
---|---|
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 24 |
Reach (mm) | 424 |
Stack (mm) | 599 |
Standover Height (mm) | 760 |
Wheelbase (mm) | 1189 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos2_a925c9cf-1223-4439-b364-b326bd8c9e77_300x.png?v=1712613168)
sm | |
---|---|
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63.3 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77.3 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 20 |
Reach (mm) | 427 |
Stack (mm) | 599 |
Standover Height (mm) | 763 |
Wheelbase (mm) | 1189 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos3_24fac9ed-2987-493d-b0c9-8bb87bcc9bcd_300x.png?v=1712613223)
sm | |
---|---|
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63.5 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77.5 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 17 |
Reach (mm) | 430 |
Stack (mm) | 599 |
Standover Height (mm) | 765 |
Wheelbase (mm) | 1188 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos4_cd1a4eb4-50d2-41d2-9424-796f03289979_300x.png?v=1712613245)
sm | |
---|---|
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63.8 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77.8 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 13 |
Reach (mm) | 433 |
Stack (mm) | 599 |
Standover Height (mm) | 768 |
Wheelbase (mm) | 1188 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos1_43546780-562e-47c7-914e-fde44571da2c_300x.png?v=1712613147)
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 24 |
Reach (mm) | 424 |
Stack (mm) | 599 |
Standover Height (mm) | 760 |
Wheelbase (mm) | 1189 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos2_a925c9cf-1223-4439-b364-b326bd8c9e77_300x.png?v=1712613168)
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63.3 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77.3 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 20 |
Reach (mm) | 427 |
Stack (mm) | 599 |
Standover Height (mm) | 763 |
Wheelbase (mm) | 1189 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos3_24fac9ed-2987-493d-b0c9-8bb87bcc9bcd_300x.png?v=1712613223)
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63.5 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77.5 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 17 |
Reach (mm) | 430 |
Stack (mm) | 599 |
Standover Height (mm) | 765 |
Wheelbase (mm) | 1188 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
![](http://bikes.com/cdn/shop/files/RM_Technologies_RIDE-4_LC2R_Pos4_cd1a4eb4-50d2-41d2-9424-796f03289979_300x.png?v=1712613245)
Top Tube Horizontal (mm) | 553 |
Head Tube Angle (deg) | 63.8 |
Head Tube Length (mm) | 100 |
Seat Tube Angle (deg) | 77.8 |
Seat Tube Length (mm) | 365 |
Rear Centre (mm) | 430 |
Bottom Bracket Drop (mm) | 13 |
Reach (mm) | 433 |
Stack (mm) | 599 |
Standover Height (mm) | 768 |
Wheelbase (mm) | 1188 |
Standover height is measured 200 mm in front of the bottom bracket.
![](https://cdn.shopify.com/s/files/1/0449/1496/6691/files/MY24_BikeGeo_Altitude_Blank.jpg?v=1711665245)
Features and technologies
![](http://bikes.com/cdn/shop/files/RM_Website_Technologies_MY24_Altitude_Links.jpg?v=1712088570&width=2880)
LC2R™ suspension systemm
LC2R™ (Low Centre Counter Rotating) is our unique take on a virtual pivot suspension design, delivering a smooth and predictable ride on challenging terrain.
![](http://bikes.com/cdn/shop/files/RM_Website_Technologies_MY24_Altitude_RIDE-4_v2.jpg?v=1712101658&width=2880)
RIDE-4™ adjustment system
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
![](http://bikes.com/cdn/shop/files/reach-adjust-4.001.jpg?v=1709699618&width=800)
Reach adjust headsets
Fine tune your ride with center, +/- 5mm offset options.
![](http://bikes.com/cdn/shop/files/RM_Website_Technologies_MY24_Altitude_Storage_1.jpg?v=1712174767&width=2880)
PenaltyBox™ 2.0
The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
![](http://bikes.com/cdn/shop/files/RM_Website_Technologies_MY24_Altitude_Flip-Chip_2.jpg?v=1712175511&width=2880)
29” / MX
Ability to mullet MD-XL via built-in flip chip. No need to buy a separate link or mount.
![](http://bikes.com/cdn/shop/files/RM_Website_Technologies_SizeSpecificTune_Altitude_1.jpg?v=1712603776&width=2880)
Size Specific Tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real-world field testing and adjusts each tune for specific frame sizes. The new Altitude also has size-specific chainstay lengths to offer a balanced ride across all frame sizes.
![](http://bikes.com/cdn/shop/files/RM_Website_Technologies_SmoothwallCarbon_cfab506d-3486-4243-a674-0bddb2c23ee0.jpg?v=1631638337&width=2880)
SMOOTHWALL™ Carbon
Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
