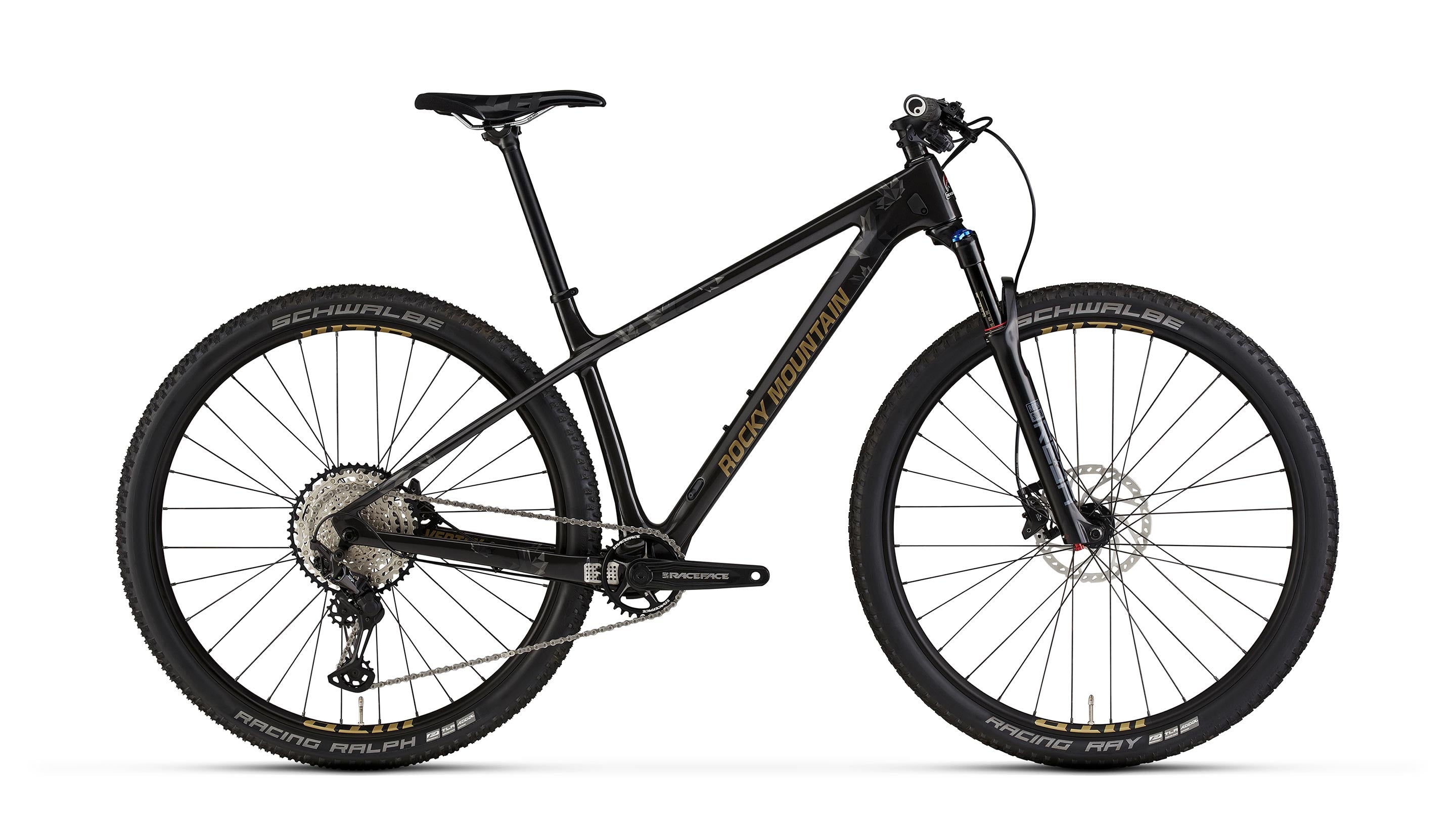

Vertex Carbon 50

Name: Vertex Carbon 50
Brand: Rocky Mountain
SKU: B0103SM1
Price: 2929.0 USD
Availability: OutOfStock

Overview

Intended use: Cross country

Rear travel: Hardtail

Wheel Size:

29

Size:

SM

SM MD LG XL

Color:

UD Carbon / Brass Monkey /

Variant

Register your Vertex Carbon 50

Specifications

Geometry

Wheel size

	sm	md	lg	xl
Top Tube Horizontal (mm)	575	600	625	650
Head Tube Angle (deg)	69.5	69.5	69.5	69.5
Head Tube Length (mm)	90	95	110	125
Seat Tube Angle (deg)	73.5	73.5	73.5	73.5
Seat Tube Length (mm)	394	432	470	508
Rear Centre (mm)	430	430	430	430
Bottom Bracket Drop (mm)	60	60	60	60
Reach (mm)	391	415	435	456
Stack (mm)	602	607	621	635
Standover Height (mm)	799	806	826	847
Wheelbase (mm)	1076	1101	1127	1153

Standover height is measured 200 mm in front of the bottom bracket.

Top Tube Horizontal (mm)	575	600	625	650
Head Tube Angle (deg)	69.5	69.5	69.5	69.5
Head Tube Length (mm)	90	95	110	125
Seat Tube Angle (deg)	73.5	73.5	73.5	73.5
Seat Tube Length (mm)	394	432	470	508
Rear Centre (mm)	430	430	430	430
Bottom Bracket Drop (mm)	60	60	60	60
Reach (mm)	391	415	435	456
Stack (mm)	602	607	621	635
Standover Height (mm)	799	806	826	847
Wheelbase (mm)	1076	1101	1127	1153

Standover height is measured 200 mm in front of the bottom bracket.

Sizing chart

These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.

Frame Size

165 - 172.5 cm / 5’5” - 5’8”

170 - 177.5 cm / 5’7” - 5’10”

177.5 - 185.5 cm / 5’10” - 6’1”

183 - 193 cm / 6’0” - 6’4”

Owners resources

Owners manual

Features and technologies

SMOOTHWALL™ Carbon

Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
