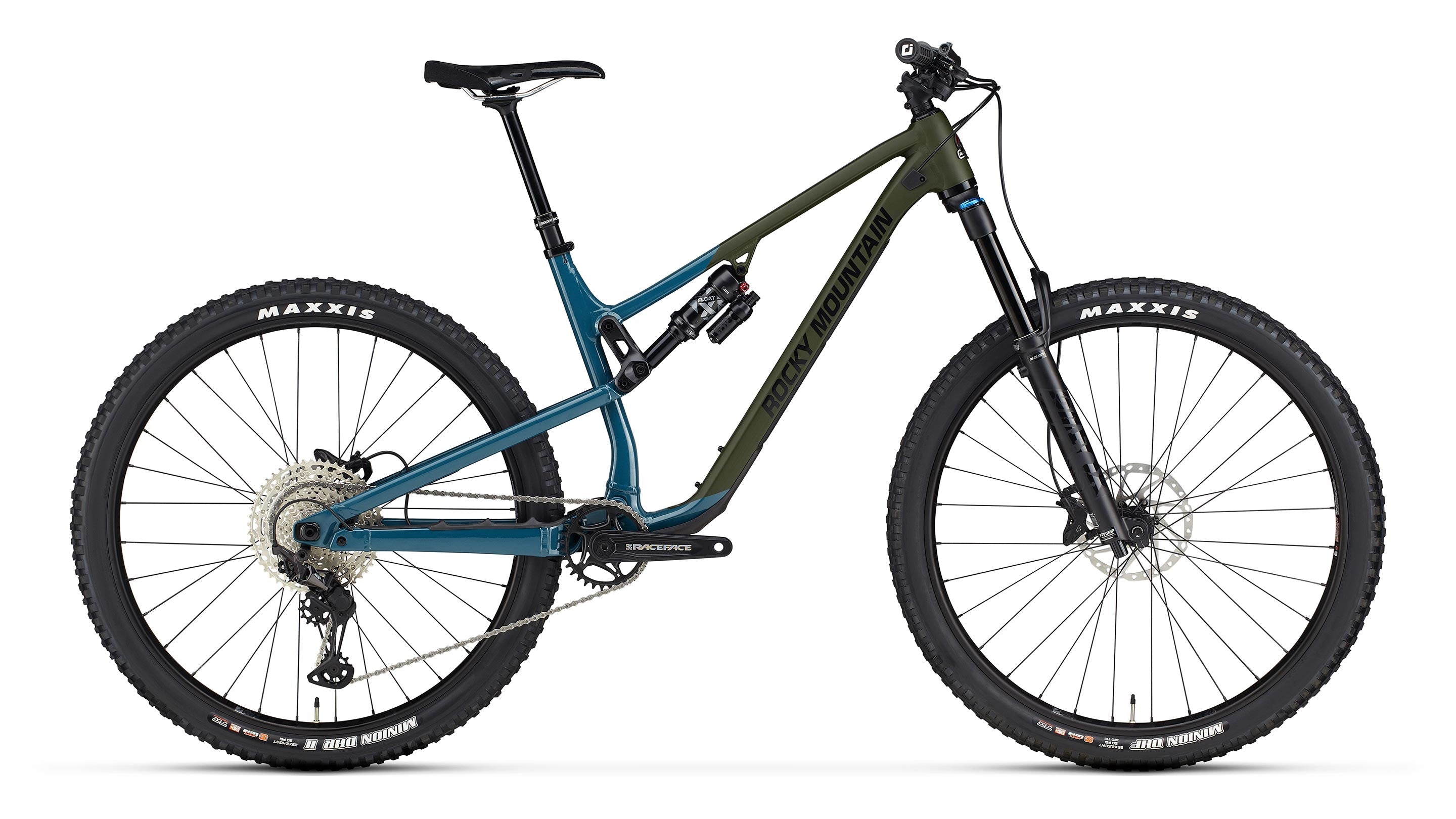

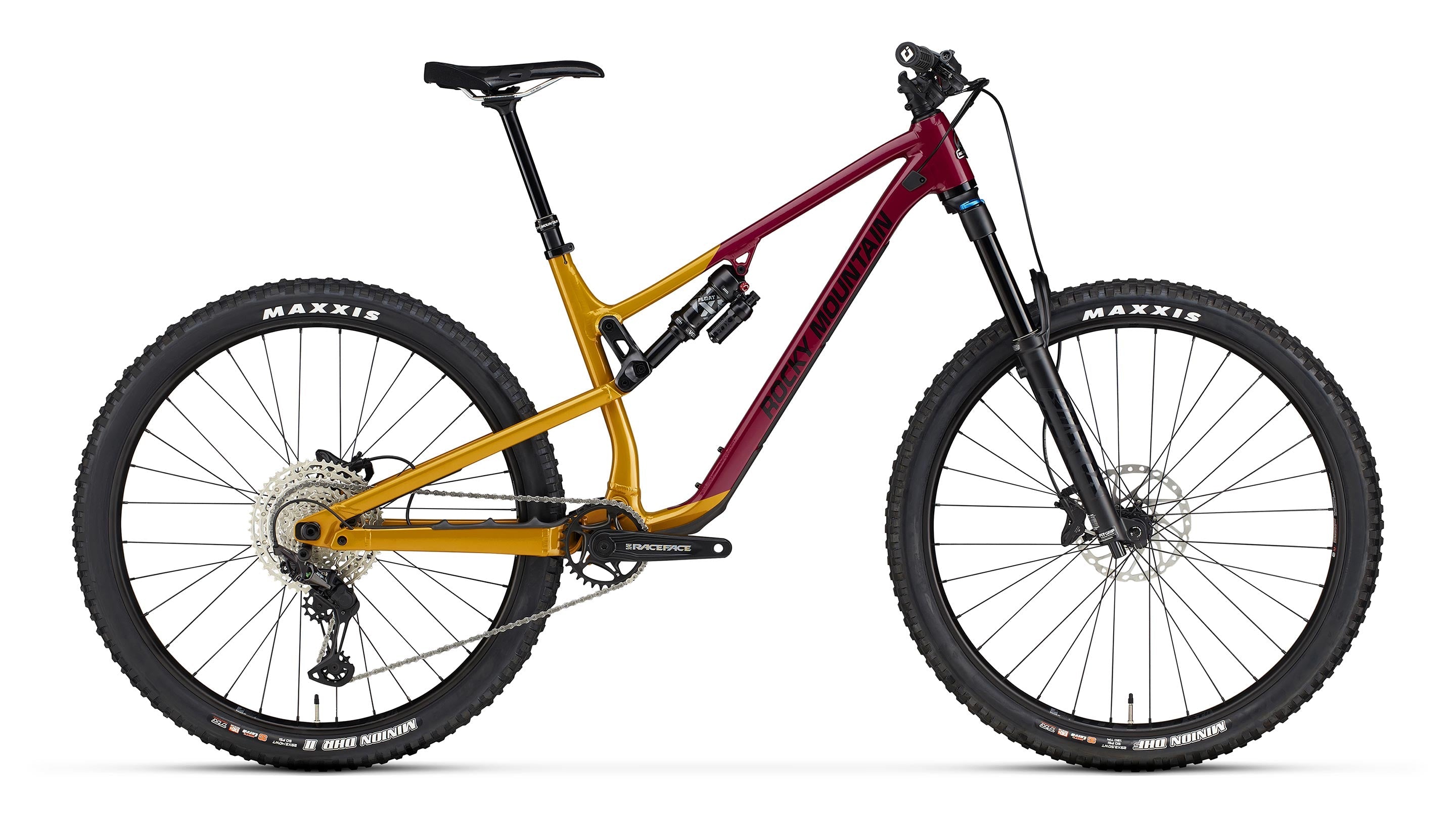

Instinct Alloy 50
Overview
Intended use: Trail
Rear travel: 140
Description
If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
RIDE-9/4 POSITION
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
Reach (mm) | 430 | 456 | 481 | 511 |
Stack (mm) | 615 | 619 | 633 | 646 |
Standover Height (mm) | 742 | 798 | 798 | 798 |
Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
Reach (mm) | 433 | 458 | 483 | 513 |
Stack (mm) | 614 | 618 | 631 | 645 |
Standover Height (mm) | 744 | 799 | 799 | 799 |
Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
Reach (mm) | 435 | 460 | 485 | 515 |
Stack (mm) | 612 | 616 | 629 | 643 |
Standover Height (mm) | 745 | 800 | 800 | 800 |
Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
Reach (mm) | 435 | 460 | 485 | 515 |
Stack (mm) | 612 | 616 | 630 | 643 |
Standover Height (mm) | 746 | 800 | 800 | 800 |
Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
Reach (mm) | 437 | 462 | 487 | 517 |
Stack (mm) | 611 | 615 | 628 | 642 |
Standover Height (mm) | 749 | 801 | 801 | 801 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
Reach (mm) | 439 | 464 | 489 | 519 |
Stack (mm) | 609 | 613 | 627 | 640 |
Standover Height (mm) | 750 | 802 | 802 | 802 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
Reach (mm) | 439 | 464 | 489 | 519 |
Stack (mm) | 609 | 614 | 627 | 640 |
Standover Height (mm) | 751 | 802 | 802 | 802 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
Reach (mm) | 441 | 466 | 491 | 521 |
Stack (mm) | 608 | 612 | 625 | 639 |
Standover Height (mm) | 754 | 803 | 803 | 803 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
sm | md | lg | xl | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
Reach (mm) | 444 | 468 | 493 | 523 |
Stack (mm) | 606 | 610 | 624 | 637 |
Standover Height (mm) | 756 | 804 | 804 | 804 |
Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 583 | 609 | 638 | 671 |
Head Tube Angle (deg) | 65 | 65.1 | 65.1 | 65.1 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76 | 76.1 | 76.1 | 76.1 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 | 438 - 449 |
Bottom Bracket Drop (mm) | 45 | 43 | 43 | 43 |
Reach (mm) | 430 | 456 | 481 | 511 |
Stack (mm) | 615 | 619 | 633 | 646 |
Standover Height (mm) | 742 | 798 | 798 | 798 |
Wheelbase (mm) | 1182 | 1210 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 583 | 609 | 637 | 671 |
Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 | 65.3 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 | 76.3 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 42 | 41 | 41 | 41 |
Reach (mm) | 433 | 458 | 483 | 513 |
Stack (mm) | 614 | 618 | 631 | 645 |
Standover Height (mm) | 744 | 799 | 799 | 799 |
Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
Reach (mm) | 435 | 460 | 485 | 515 |
Stack (mm) | 612 | 616 | 629 | 643 |
Standover Height (mm) | 745 | 800 | 800 | 800 |
Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 582 | 608 | 637 | 670 |
Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 | 65.5 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 | 76.5 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 39 | 39 | 39 | 39 |
Reach (mm) | 435 | 460 | 485 | 515 |
Stack (mm) | 612 | 616 | 630 | 643 |
Standover Height (mm) | 746 | 800 | 800 | 800 |
Wheelbase (mm) | 1182 | 1209 | 1241 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 582 | 608 | 636 | 670 |
Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 | 65.7 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 | 76.7 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 37 | 36 | 36 | 36 |
Reach (mm) | 437 | 462 | 487 | 517 |
Stack (mm) | 611 | 615 | 628 | 642 |
Standover Height (mm) | 749 | 801 | 801 | 801 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 581 | 607 | 636 | 669 |
Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 34 | 33 | 33 | 33 |
Reach (mm) | 439 | 464 | 489 | 519 |
Stack (mm) | 609 | 613 | 627 | 640 |
Standover Height (mm) | 750 | 802 | 802 | 802 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 581 | 608 | 636 | 669 |
Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 | 65.8 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 | 76.8 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
Reach (mm) | 439 | 464 | 489 | 519 |
Stack (mm) | 609 | 614 | 627 | 640 |
Standover Height (mm) | 751 | 802 | 802 | 802 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1277 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 581 | 607 | 635 | 669 |
Head Tube Angle (deg) | 66.1 | 66 | 66 | 66 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 77.1 | 77 | 77 | 77 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
Bottom Bracket Drop (mm) | 31 | 31 | 31 | 31 |
Reach (mm) | 441 | 466 | 491 | 521 |
Stack (mm) | 608 | 612 | 625 | 639 |
Standover Height (mm) | 754 | 803 | 803 | 803 |
Wheelbase (mm) | 1182 | 1209 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 580 | 607 | 635 | 668 |
Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 | 66.2 |
Head Tube Length (mm) | 90 | 95 | 110 | 125 |
Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 | 77.2 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 | 436 - 447 |
Bottom Bracket Drop (mm) | 28 | 28 | 28 | 28 |
Reach (mm) | 444 | 468 | 493 | 523 |
Stack (mm) | 606 | 610 | 624 | 637 |
Standover Height (mm) | 756 | 804 | 804 | 804 |
Wheelbase (mm) | 1181 | 1208 | 1240 | 1276 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 551 | 578 |
Head Tube Angle (deg) | 65.3 | 65.3 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.3 | 76.3 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 428 - 439 | 428 - 439 |
Bottom Bracket Drop (mm) | 27 | 27 |
Reach (mm) | 408 | 433 |
Stack (mm) | 585 | 594 |
Standover Height (mm) | 754 | 754 |
Wheelbase (mm) | 1134 | 1164 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 550 | 578 |
Head Tube Angle (deg) | 65.5 | 65.5 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.5 | 76.5 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 428 - 439 | 428 - 439 |
Bottom Bracket Drop (mm) | 24 | 24 |
Reach (mm) | 410 | 435 |
Stack (mm) | 584 | 593 |
Standover Height (mm) | 756 | 756 |
Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 550 | 577 |
Head Tube Angle (deg) | 65.7 | 65.7 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.7 | 76.7 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 427 - 438 | 427 - 438 |
Bottom Bracket Drop (mm) | 22 | 22 |
Reach (mm) | 412 | 437 |
Stack (mm) | 582 | 591 |
Standover Height (mm) | 757 | 757 |
Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 550 | 577 |
Head Tube Angle (deg) | 65.7 | 65.7 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.7 | 76.7 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 427 - 438 | 427 - 438 |
Bottom Bracket Drop (mm) | 21 | 21 |
Reach (mm) | 412 | 437 |
Stack (mm) | 582 | 591 |
Standover Height (mm) | 757 | 757 |
Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 549 | 577 |
Head Tube Angle (deg) | 65.9 | 65.9 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.9 | 76.9 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 427 - 438 | 427 - 438 |
Bottom Bracket Drop (mm) | 19 | 19 |
Reach (mm) | 414 | 439 |
Stack (mm) | 581 | 589 |
Standover Height (mm) | 758 | 758 |
Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 549 | 577 |
Head Tube Angle (deg) | 66.1 | 66.1 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 77.1 | 77.1 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 426 - 437 | 426 - 437 |
Bottom Bracket Drop (mm) | 16 | 16 |
Reach (mm) | 417 | 441 |
Stack (mm) | 581 | 589 |
Standover Height (mm) | 759 | 759 |
Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 549 | 576 |
Head Tube Angle (deg) | 66.1 | 66.1 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 77.1 | 77.1 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 426 - 437 | 426 - 437 |
Bottom Bracket Drop (mm) | 16 | 16 |
Reach (mm) | 417 | 441 |
Stack (mm) | 579 | 588 |
Standover Height (mm) | 759 | 759 |
Wheelbase (mm) | 1133 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 548 | 576 |
Head Tube Angle (deg) | 66.3 | 66.3 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 77.3 | 77.3 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 426 - 437 | 426 - 437 |
Bottom Bracket Drop (mm) | 13 | 13 |
Reach (mm) | 419 | 444 |
Stack (mm) | 577 | 586 |
Standover Height (mm) | 760 | 760 |
Wheelbase (mm) | 1132 | 1162 |
Standover height is measured 200 mm in front of the bottom bracket.
xs | sm | |
---|---|---|
Top Tube Horizontal (mm) | 548 | 575 |
Head Tube Angle (deg) | 66.6 | 66.6 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 77.6 | 77.6 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 425 - 436 | 425 - 436 |
Bottom Bracket Drop (mm) | 11 | 11 |
Reach (mm) | 421 | 446 |
Stack (mm) | 576 | 584 |
Standover Height (mm) | 761 | 761 |
Wheelbase (mm) | 1132 | 1161 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 551 | 578 |
Head Tube Angle (deg) | 65.3 | 65.3 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.3 | 76.3 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 428 - 439 | 428 - 439 |
Bottom Bracket Drop (mm) | 27 | 27 |
Reach (mm) | 408 | 433 |
Stack (mm) | 585 | 594 |
Standover Height (mm) | 754 | 754 |
Wheelbase (mm) | 1134 | 1164 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 550 | 578 |
Head Tube Angle (deg) | 65.5 | 65.5 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.5 | 76.5 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 428 - 439 | 428 - 439 |
Bottom Bracket Drop (mm) | 24 | 24 |
Reach (mm) | 410 | 435 |
Stack (mm) | 584 | 593 |
Standover Height (mm) | 756 | 756 |
Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 550 | 577 |
Head Tube Angle (deg) | 65.7 | 65.7 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.7 | 76.7 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 427 - 438 | 427 - 438 |
Bottom Bracket Drop (mm) | 22 | 22 |
Reach (mm) | 412 | 437 |
Stack (mm) | 582 | 591 |
Standover Height (mm) | 757 | 757 |
Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
Top Tube Horizontal (mm) | 550 | 577 |
Head Tube Angle (deg) | 65.7 | 65.7 |
Head Tube Length (mm) | 90 | 100 |
Seat Tube Angle (deg) | 76.7 | 76.7 |
Seat Tube Length (mm) | 355 | 380 |
Rear Centre (mm) | 427 - 438 | 427 - 438 |
Bottom Bracket Drop (mm) | 21 | 21 |
Reach (mm) | 412 | 437 |
Stack (mm) | 582 | 591 |
Standover Height (mm) | 757 | 757 |
Wheelbase (mm) | 1134 | 1163 |
Standover height is measured 200 mm in front of the bottom bracket.
