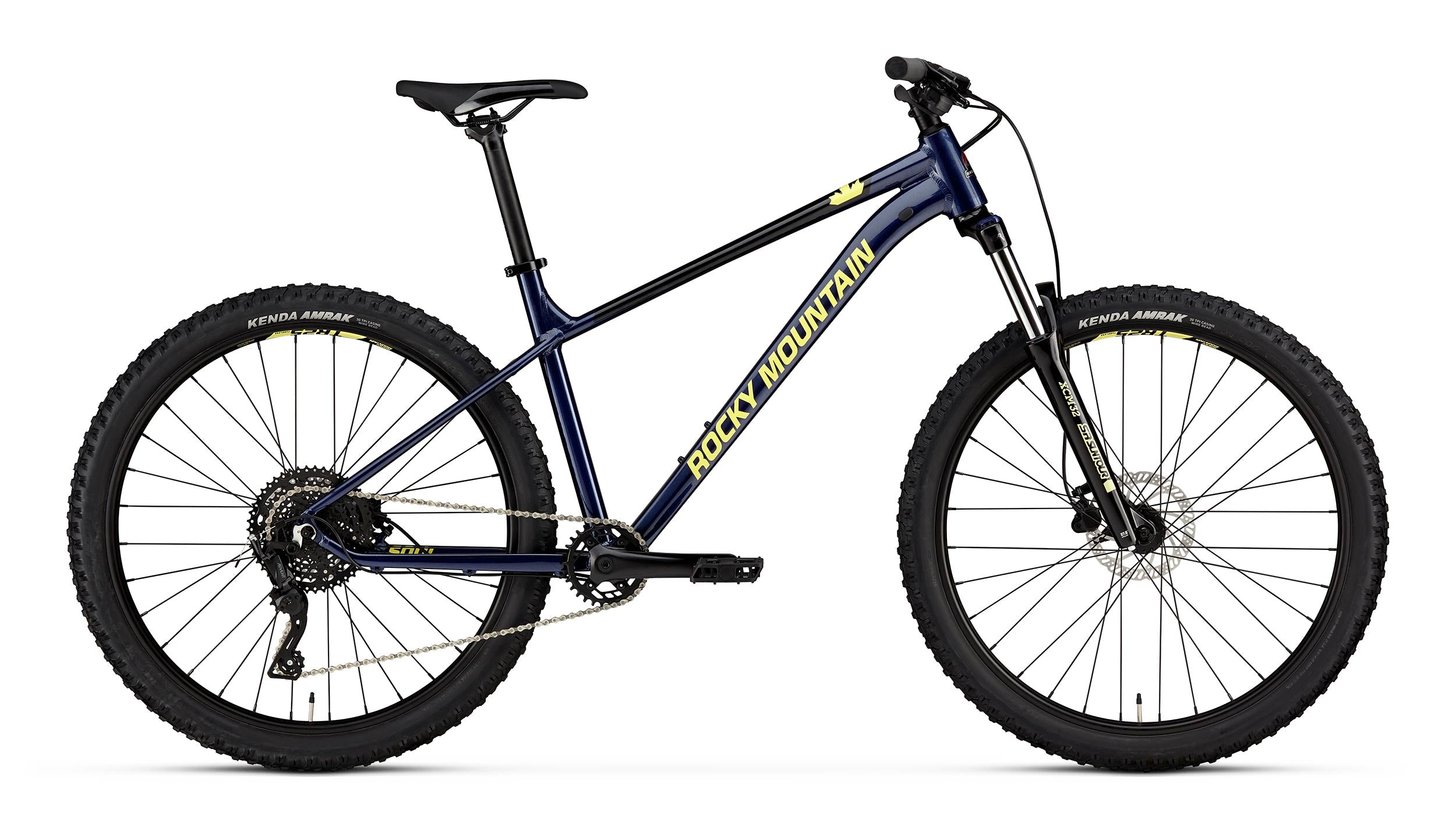

Soul 10
Overview
Intended use: Adventure
Rear travel: Hardtail
Rider support
5 years warranty, transferable to second owners
We believe in our products, that's why we offer 5-year warranty on our frames, extended to second owners. Learn more
Buy online pick-up in store
It’s now possible for riders to purchase a bike directly through Bikes.com and collect it at an authorized Rocky Mountain dealer.
We're here for you
Got questions about our bikes? Our support team and dealers network are here for you.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 586 | 610 | 638 | |
| Head Tube Angle (deg) | 66 | 66 | 66 | |
| Head Tube Length (mm) | 95 | 100 | 110 | |
| Seat Tube Angle (deg) | 74.5 | 74.5 | 74.5 | |
| Seat Tube Length (mm) | 380 | 420 | 445 | |
| Rear Centre (mm) | 430 | 430 | 430 | |
| Bottom Bracket Drop (mm) | 48 | 48 | 48 | |
| Reach (mm) | 422 | 445 | 470 | |
| Stack (mm) | 592 | 596 | 605 | |
| Standover Height (mm) | 754 | 767 | 776 | |
| Wheelbase (mm) | 1135 | 1159 | 1189 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 586 | 610 | 638 | |
| Head Tube Angle (deg) | 66 | 66 | 66 | |
| Head Tube Length (mm) | 95 | 100 | 110 | |
| Seat Tube Angle (deg) | 74.5 | 74.5 | 74.5 | |
| Seat Tube Length (mm) | 380 | 420 | 445 | |
| Rear Centre (mm) | 430 | 430 | 430 | |
| Bottom Bracket Drop (mm) | 48 | 48 | 48 | |
| Reach (mm) | 422 | 445 | 470 | |
| Stack (mm) | 592 | 596 | 605 | |
| Standover Height (mm) | 754 | 767 | 776 | |
| Wheelbase (mm) | 1135 | 1159 | 1189 |
Standover height is measured 200 mm in front of the bottom bracket.
Sizing chart
These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.
Frame Size
Features and technologies
FORM™ Alloy
FORM™ tubesets utilize premium materials to meet our strict requirements. Each FORM™ tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.
FAQs
What is the Soul's maximum fork length?
The Soul is designed to have 120mm of the front suspension, we don't recommend installing a fork with more than 120mm of travel.
What is the Soul's headset size?
The Soul uses a Zero Stack/Integrated ZS44|ZS56.
What is the Soul's fork offset?
The fork offset on the Soul is 44mm on the 2020 model.
What is the Soul's maximum tire width?
The Soul is designed to fit up to a 27.5" x 2.4" tire.
What is the Soul's bottom bracket size?
The Soul uses a BSA73 bottom bracket.
What is the Soul's maximum chainring size?
The maximum chainring size that’s compatible is a 36t.
What is the Soul's seatpost collar size?
The Soul uses a 34.9mm seat post collar.
What is the Soul's seatpost diameter?
The Soul uses a 30.9mm seat post.
