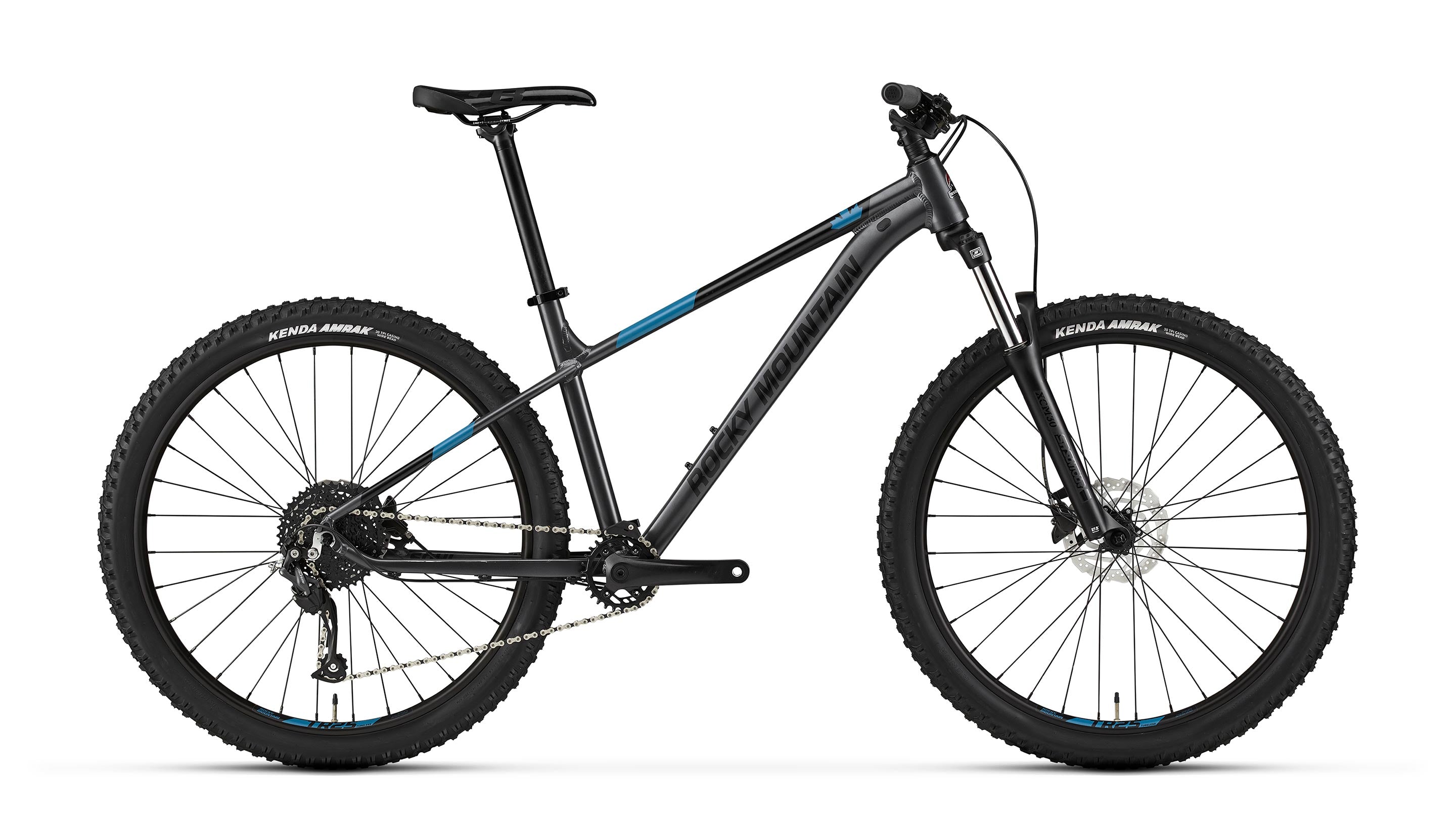

Soul 10

Name: Soul 10
Brand: Rocky Mountain
SKU: B0153XS1
Price: 1199.0 AUD
Availability: OutOfStock

Overview

Intended use: Adventure

Rear travel: Hardtail

Wheel Size:

27.5

Size:

XS

XS SM MD LG

Color:

Rusted From the Rain / Black Dog / Volcano

Variant

Register your Soul 10

Specifications

Geometry

Wheel size

	xs	sm	md	lg
Top Tube Horizontal (mm)	561	586	610	638
Head Tube Angle (deg)	66	66	66	66
Head Tube Length (mm)	95	95	100	110
Seat Tube Angle (deg)	74.5	74.5	74.5	74.5
Seat Tube Length (mm)	345	380	420	445
Rear Centre (mm)	430	430	430	430
Bottom Bracket Drop (mm)	48	48	48	48
Reach (mm)	397	422	445	470
Stack (mm)	592	592	596	605
Standover Height (mm)	748	754	767	776
Wheelbase (mm)	1110	1135	1159	1189

Standover height is measured 200 mm in front of the bottom bracket.

Top Tube Horizontal (mm)	561	586	610	638
Head Tube Angle (deg)	66	66	66	66
Head Tube Length (mm)	95	95	100	110
Seat Tube Angle (deg)	74.5	74.5	74.5	74.5
Seat Tube Length (mm)	345	380	420	445
Rear Centre (mm)	430	430	430	430
Bottom Bracket Drop (mm)	48	48	48	48
Reach (mm)	397	422	445	470
Stack (mm)	592	592	596	605
Standover Height (mm)	748	754	767	776
Wheelbase (mm)	1110	1135	1159	1189

Standover height is measured 200 mm in front of the bottom bracket.

Sizing chart

These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.

Frame Size

152.5 - 165 cm / 5’0” - 5’5”

160 - 170 cm / 5’3” - 5’7”

167.5 - 180 cm / 5’6” - 5’11”

177.5 - 188 cm / 5’10” - 6’2”

Owners resources

Owners manual

Features and technologies

FORM™ Alloy

FORM™ tubesets utilize premium materials to meet our strict requirements. Each FORM™ tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.
