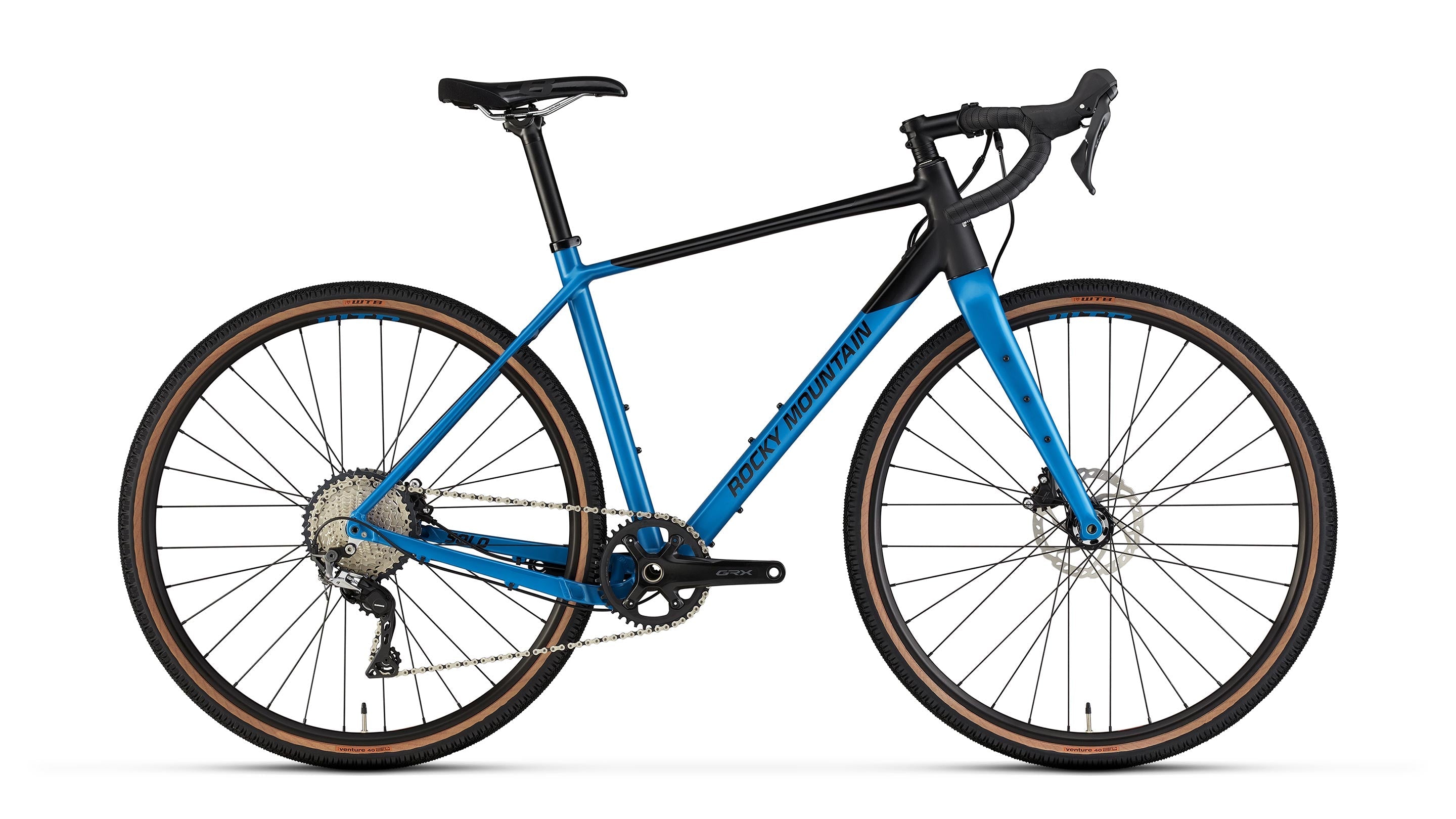

Solo 50
Overview
Intended use: Gravel
Rear travel:
Description
The bombproof solution to any road. With 650b compatibility and hyper-versatile geometry, expect to go from cruising asphalt to ripping flowy hardpack during commutes or triple digit days of groad. Got even bigger plans? A huge wack of contact points for bikepacking gear, racks, fenders, and pretty much anything else keeps the possibilities endless.
Specifications
Geometry
Wheel size
RIDE-9/4 POSITION
| xs | sm | md | lg | xl | |
|---|---|---|---|---|---|
| Top Tube Horizontal (mm) | 520 | 540 | 560 | 580 | 605 |
| Head Tube Angle (deg) | 69.5 | 70 | 71 | 71 | 72 |
| Head Tube Length (mm) | 110 | 135 | 160 | 195 | 220 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74 | 73.5 | 73 |
| Seat Tube Length (mm) | 414 | 452 | 490 | 528 | 566 |
| Rear Centre (mm) | 425 | 425 | 425 | 425 | 425 |
| Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 70 |
| Reach (mm) | 384 | 392 | 399 | 404 | 414 |
| Stack (mm) | 527 | 553 | 580 | 613 | 641 |
| Standover Height (mm) | 742 | 771 | 800 | 836 | 867 |
| Wheelbase (mm) | 1022 | 1035 | 1041 | 1057 | 1066 |
Standover height is measured 200 mm in front of the bottom bracket.
| Top Tube Horizontal (mm) | 520 | 540 | 560 | 580 | 605 |
| Head Tube Angle (deg) | 69.5 | 70 | 71 | 71 | 72 |
| Head Tube Length (mm) | 110 | 135 | 160 | 195 | 220 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74 | 73.5 | 73 |
| Seat Tube Length (mm) | 414 | 452 | 490 | 528 | 566 |
| Rear Centre (mm) | 425 | 425 | 425 | 425 | 425 |
| Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 70 |
| Reach (mm) | 384 | 392 | 399 | 404 | 414 |
| Stack (mm) | 527 | 553 | 580 | 613 | 641 |
| Standover Height (mm) | 742 | 771 | 800 | 836 | 867 |
| Wheelbase (mm) | 1022 | 1035 | 1041 | 1057 | 1066 |
Standover height is measured 200 mm in front of the bottom bracket.
Sizing chart
These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.
Frame Size
Owners resources
Features and technologies
FORM™ Alloy
FORM™ tubesets utilize premium materials to meet our strict requirements. Each FORM™ tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.
