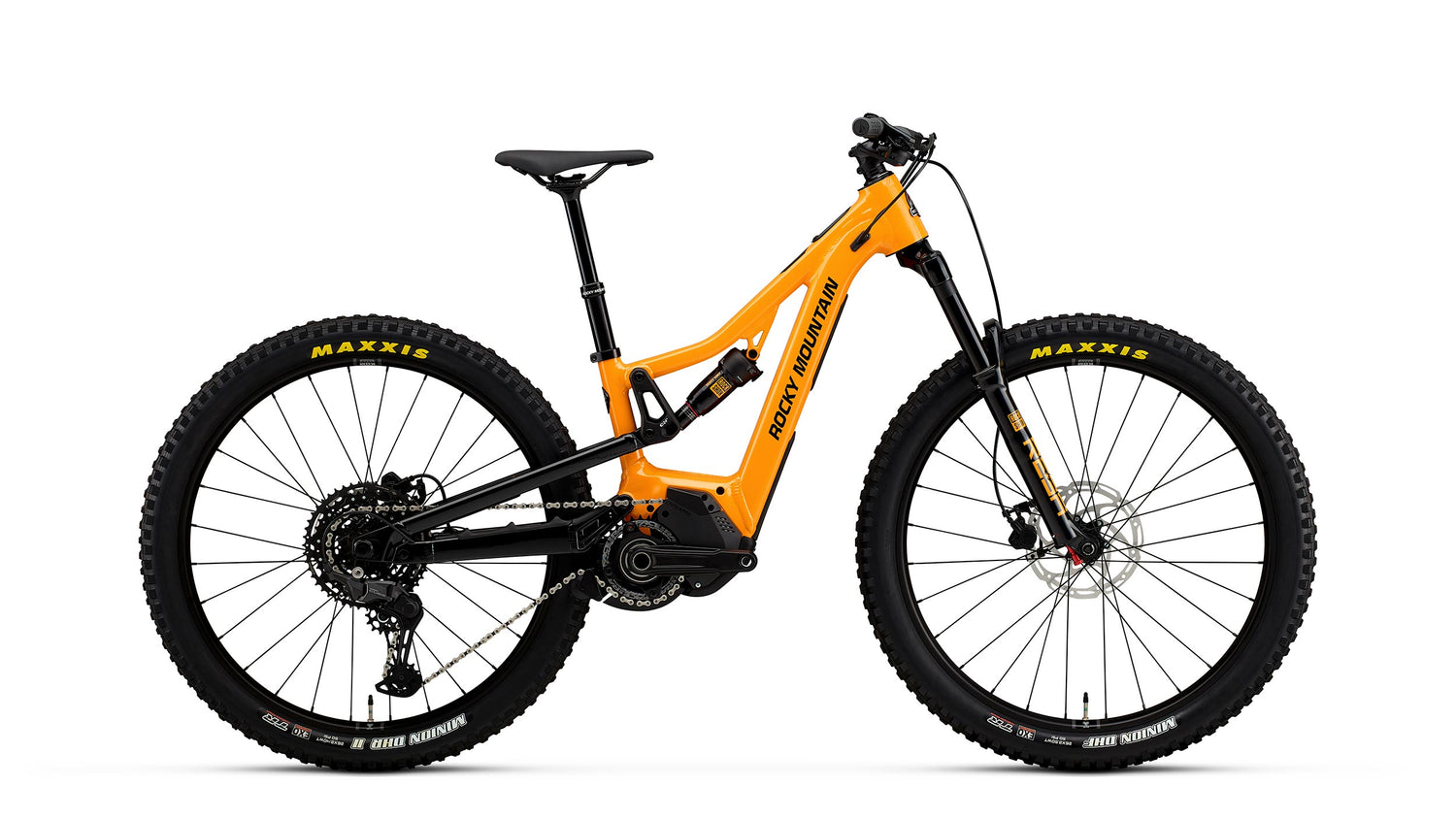

Reaper Powerplay (2024+)

Rider manuals

Rider manuals are an invaluable resource to help you get the most out of your new bike. Inside, you'll find essential information such as suspension settings, exploded views, and setup tips, all shared by the passionate designers and engineers behind our bikes

Technical manual | Includes suspension setting guide and torque specs
Owner's manual

FAQs

What is the Reaper's maximum recommended fork length?

The Reaper 27.5 is designed to have 140mm of the front suspension. The Reaper 24 and 26 is designed to have 120mm of the front suspension.

Whats is the Reaper's fork offset?

The fork offset on the Reaper 27.5 is 44mm, the Reaper 24 and 26 have a 39mm offset fork installed.

What is the maximum recommended tire width?

The Reaper 27.5 is designed to fit up to a 27.5" x 2.5" tires.
The Reaper 24 and 26 are designed to fit up to a 24" x 2.4" or 26" x 2.4" tires.

What is the Reaper's bottom bracket size?

The Reaper uses a Press Fit BB92 bottom bracket, meaning that it's 92mm wide with a 41mm diameter shell. PF30 BB's are not compatible.

What is the Reaper's rear axle size?

The Reaper 27.5, 2020 Reaper 24, and 2020 Reaper 26 use a 12mm x 173mm with a 1.5mm thread pitch.

What is the Reaper's headset size?

The Reaper uses a Zero Stack/Integrated ZS44|ZS56.

What bashguard can I use on the Reaper?

The Reaper has the two lower ISCG05 tabs. These can be used to mount a two-bolt bash guard.

What is the Reaper's maximum chainring size?

The maximum chainring size that’s compatible is a 36t. The maximum oval chainring size that’s compatible is a 34t.

What is the Reaper's shock size and shock hardware size?

The Reaper 27.5 uses a 210 mm x 55 mm. The Reaper 26 and 24 use a 6.5" x 1.5".

What is the Reaper's seatpost diameter?

The Reaper uses a 30.9mm seat post.

What is the Reaper's maximum seatpost insertion?

The maximum seatpost insertion is: 27.5 = 170mm | 26 = 180mm | 24" = 180mm

What is the Reaper's seatpost collar size?

The Reaper uses a 34.9mm seat post.
