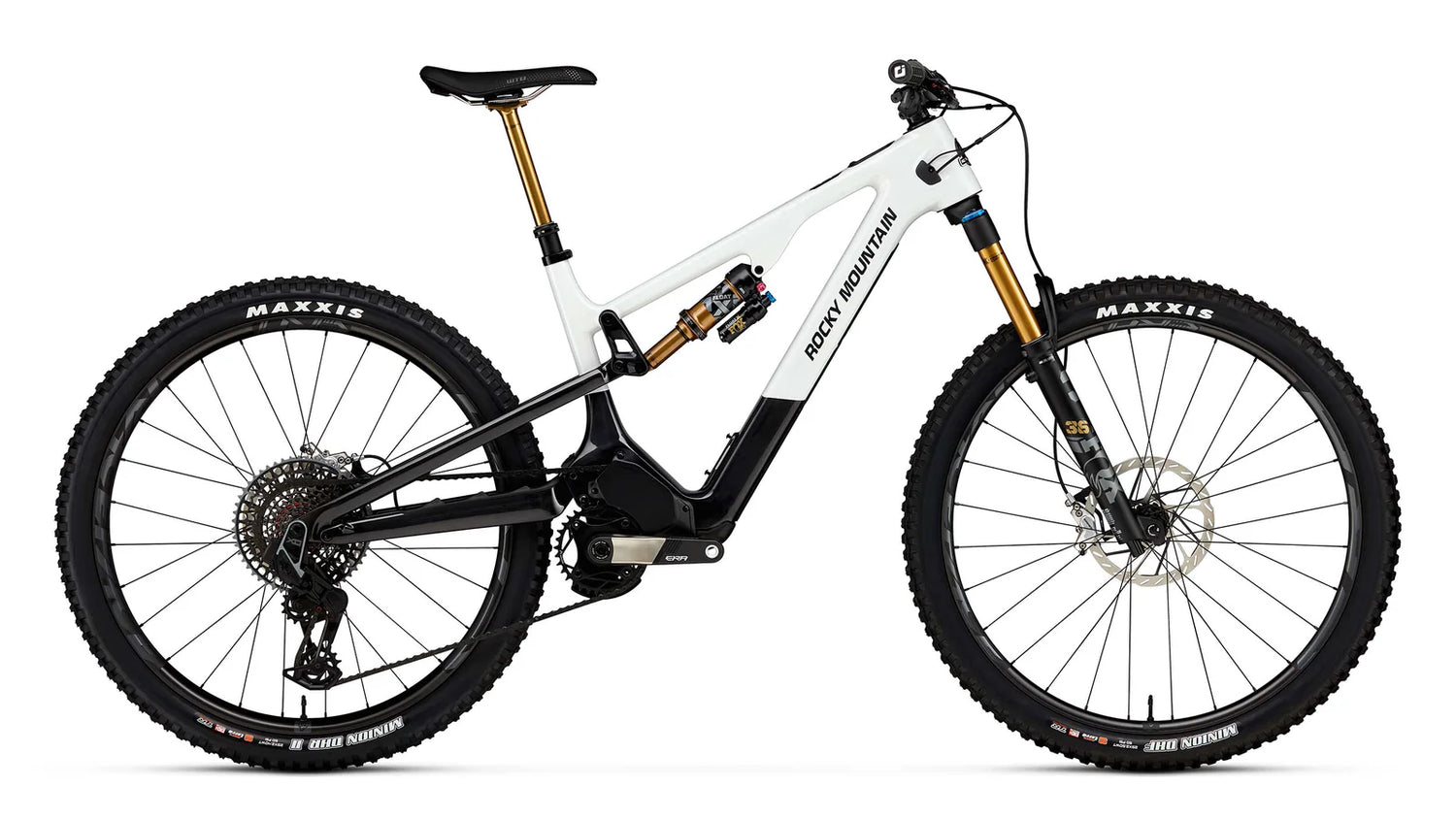

Instinct Powerplay SL (2025+)

Rider manuals

Rider manuals are an invaluable resource to help you get the most out of your new bike. Inside, you'll find essential information such as suspension settings, exploded views, and setup tips, all shared by the passionate designers and engineers behind our bikes

Owners manual

Quickstart guide

Overtimepack guide

Technical manual | Includes suspension setting guide, torque specs, and everything you need to set up your bike.

FAQs

What's the recommended SAG?

Shock: we recommend approximately 30–35% sag for this platform.
Fork: we recommend approximately 15–20% sag for this platform.

Is the Instinct Powerplay SL compatible with an MX wheels setup?

The Instinct Powerplay SL in sizes SM to XL is compatible with an MX wheels setup using our MX link.

Is the Instinct Powerplay SL UDH compatible?

Yes, the Instinct Powerplay SL is compatible with UDH.

What are the shock dimensions?

The Instinct Powerplay SL in sizes SM to XL is compatible with 230x57.5mm (145mm rear travel) or 230x60mm (150mm rear travel) shocks.

The Instinct Powerplay in sizes XS is compatible with 210x52.5mm (145mm rear travel) or 210x55mm (150mm rear travel) shocks.

Does the Instinct Powerplay SL feature a removable battery?

Yes, the Instinct Powerplay SL features a 480 Wh, two-bolt, fully removable battery. It’s sleek, quiet, rattle-free, and streamlined.

What's the recommended fork travel?

The Instinct Powerplay SL is designed for fork travel from 150mm to 160mm.

Maximum Axle-to-Crown:
27.5" | XS = 557.6mm
29" | SM - MD - LG - XL = 575mm

What's the maximum chainring size?

The Instinct Powerplay SL is compatible with chainrings up to 34t.

What's the recommended chain lenght?

Instinct Powerplay SL:
27.5" | XS | 122L
29" | SM - MD | 122L
29" | LG - XL | 124L

Instinct Powerplay SL BC Edition:
27.5" | XS | 124L
29" | SM - MD | 124L
29" | LG - XL | 126L

Is the Instinct Powerplay SL compatible with a battery range extender?

Yes, get an additional 314 Wh of battery capacity with the Overtimepack 2.0 that easily mounts to the downtube for extended range and good times.

Does the Instinct Powerplay SL require the use of an app?

The Instinct Powerplay SL does not require an app. Just get out there and love the ride.

Does the Instinct Powerplay SL feature an integrated screen?

Yes, the Jumbotron is our display screen, seamlessly integrated into the top tube of our new Powerplay bikes. It displays key information like your speed, battery life, assistance, or optimal cadence prominently in front of you while maintaining a clutter-free cockpit.

Is the Instinct Powerplay SL compatible with coil shocks?

The Instinct Powerplay SL is coil shock compatible.

What is the crankset and BB compatibility?

The Instinct Powerplay SL is compatible with all Race Face cranks with a 30mm spindle diameter. The spindle length must be 136mm.

The Instinct Powerplay SL is compatible with Pressfit BB92 bottom brackets.

What's the battery range?

The new Dyname S4 Lite, with its 480Wh battery, offers roughly 90% of the range that our Dyname 4.0, 720Wh battery offers.

How fast is the charging time on the Instinct Powerplay SL?

4A charger:
- Time to charge from 0–80% = 1h55
- Time to charge from 0–95% = 2h20
- Total charge time from 0–100% = 2h35

2A Charger:
- Time to charge from 0–80% = 4h00
- Time to charge from 0–95% = 4h40
- Total charge time from 0–100% = 5h05

What's the maximum tire clearance?

27.5" | XS | 2.5 (63mm)
29" | SM-MD-LG-XL | 2.5 (63mm)
