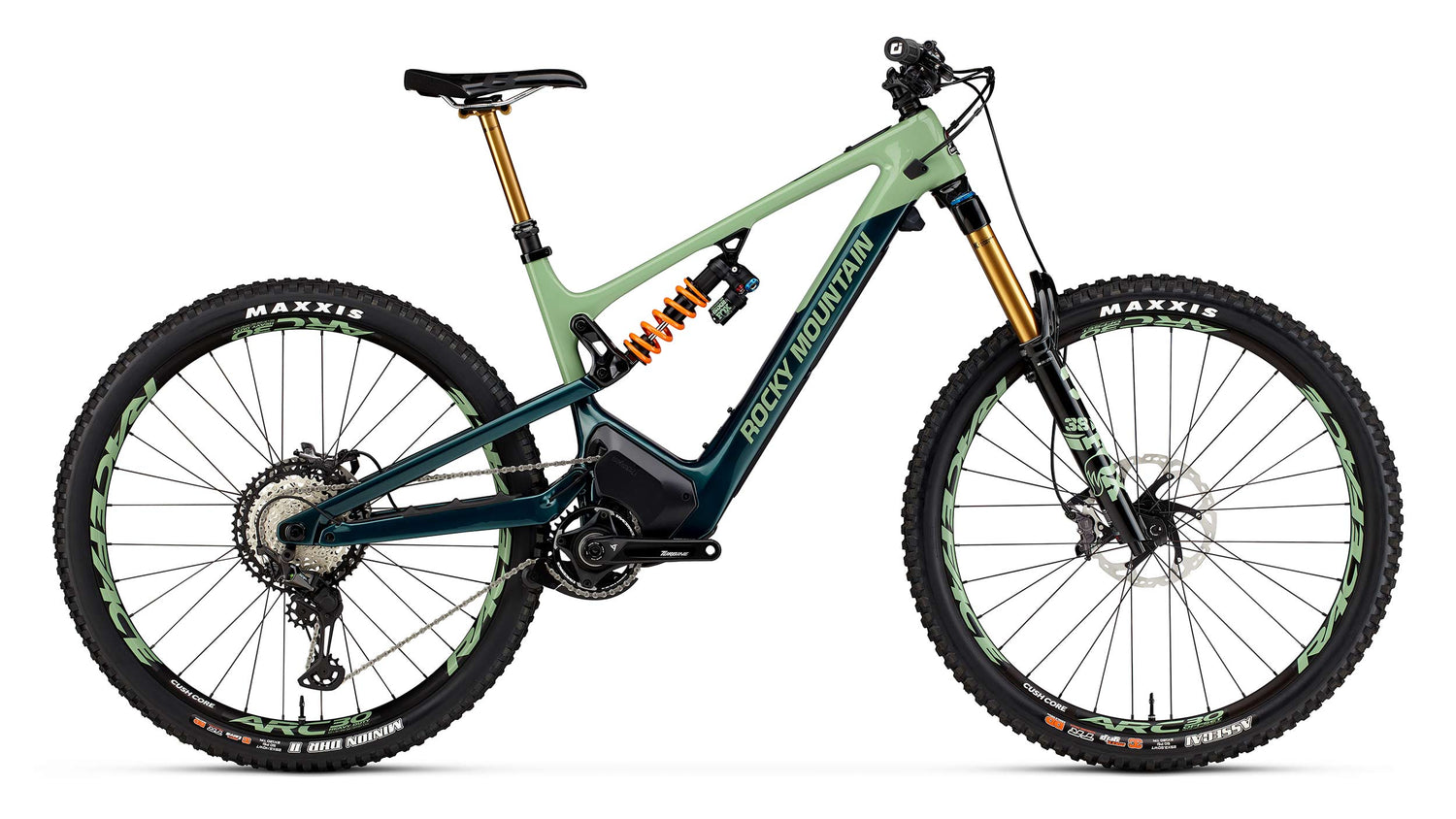

Altitude Powerplay (2023+)

Rider manuals

Rider manuals are an invaluable resource to help you get the most out of your new bike. Inside, you'll find essential information such as suspension settings, exploded views, and setup tips, all shared by the passionate designers and engineers behind our bikes

FAQs

What are the rear suspension specifications?

The 2022 Altitude Powerplay runs happily at approximately 30% sag. More details are available in your tech manual.

What are the bottom bracket & drivetrain specifications?

Bottom Bracket Shell Measurement
Carbon: 89.5mm x 41mm
Alloy: 89.5mm x 41mm

Bottom Bracket
Carbon: Press Fit BB92
Alloy: Press Fit BB92

Chain Length: 124 links
Chain Ring Compatible: Raceface, Chainline 52mm
Max Chain Ring Size: 34T

What is Altitude Powerplay seatpost dimensions?

Both the carbon and alloy 2022 Altitude Powerplay require a 30.9mm diameter seatpost/dropper post.

What are the Altitude Powerplay wheel specifications & dimensions?

The 2022+ Altitude Powerplay is designed around a 29'' wheel. All sizes use the same boost spacing front and rear.

What are the most common part kits needed to the Altitude Powerplay?

Pivot Bearing Kit, Shock Bearing Eyelet Kit, Pivot Bolt Kit, Shock Bolt Kit, Altitude Forward Shock Mount Kit, RIDE-4 Kit, Rear Axle Kit, Lower Chain Guide 34T, Derailleur Hanger, Axle Flip Chip Kit, Bash Guard Kit, Chain Guide Kit, Upper Chain Guide

What are the Altitude Powerplay fork dimensions & specifications?

Fork Offset (Fox)
Carbon: 44mm
Alloy: 44mm

Max Axle-to-Crown
Carbon: 581mm
Allo: 581mm

What is the Altitude Powerplay headset dimensions?

Carbon: ZS44 | ZS56, standard lower cup (2.9mm stack)
Alloy: ZS44 | ZS56, standard lower cup (2.9 stack)
